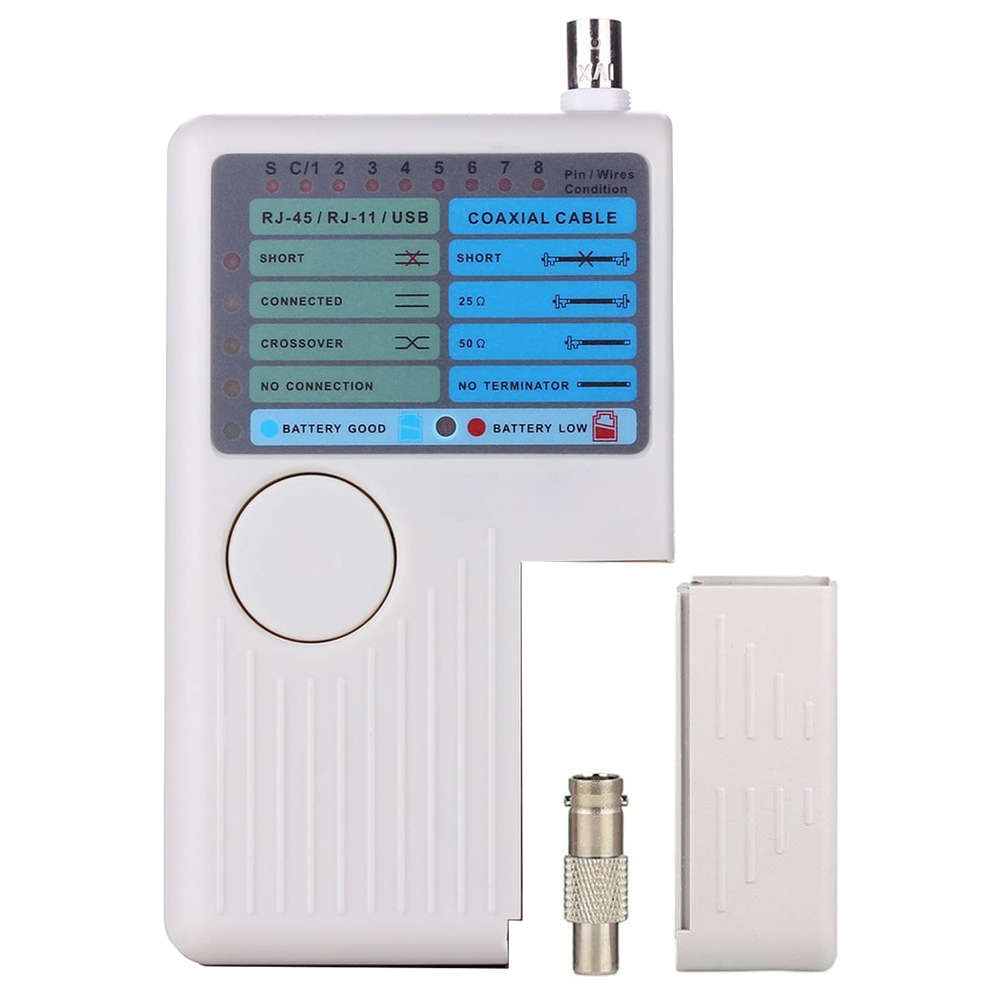

Product Description

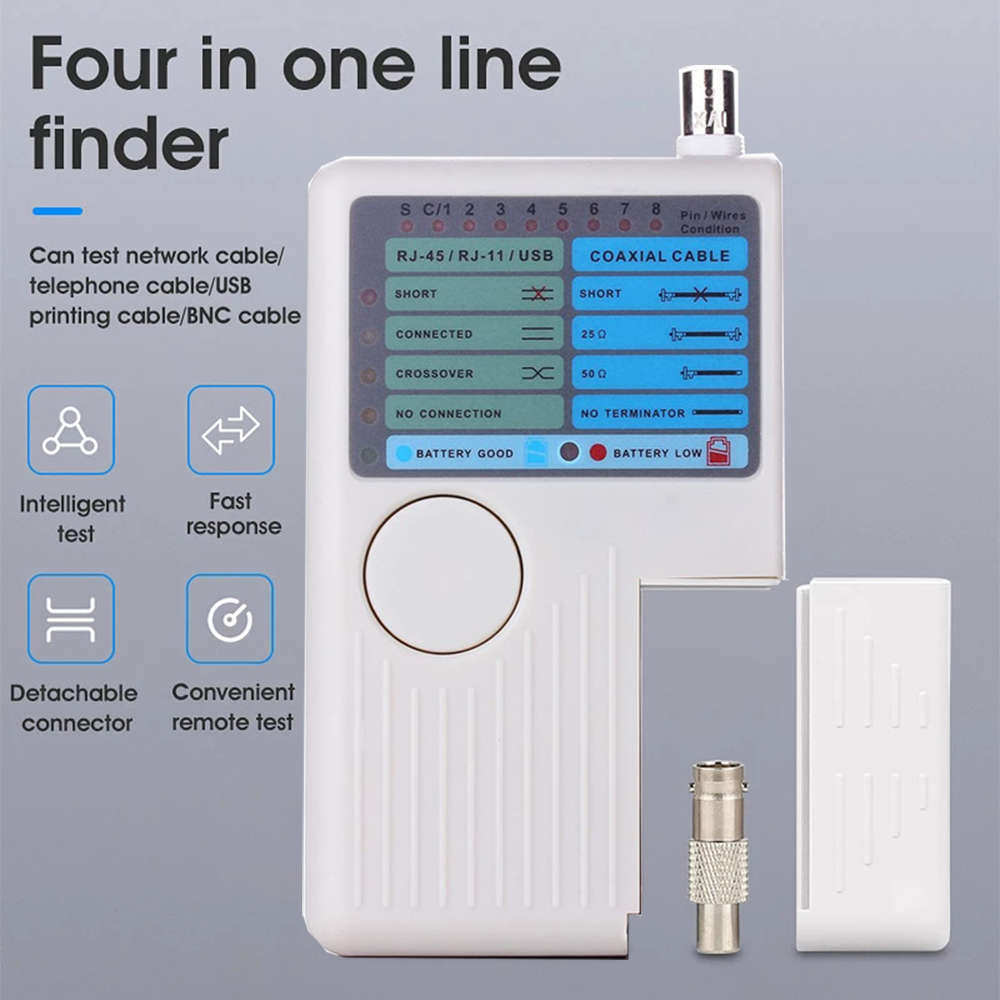

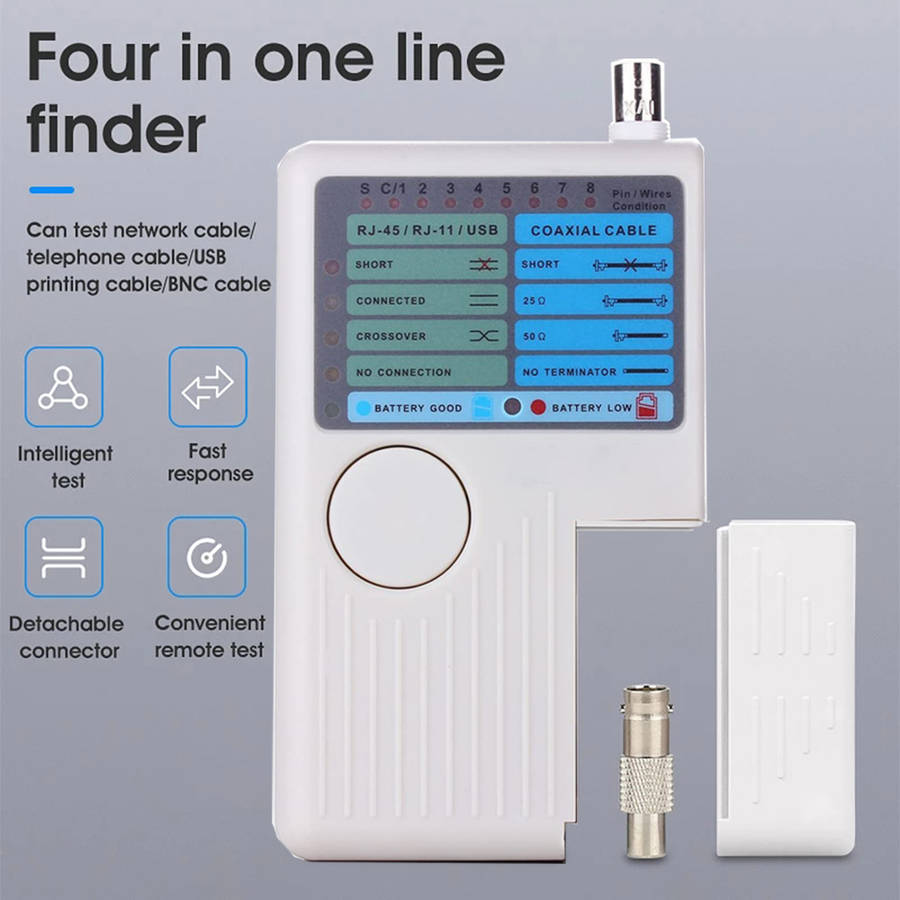

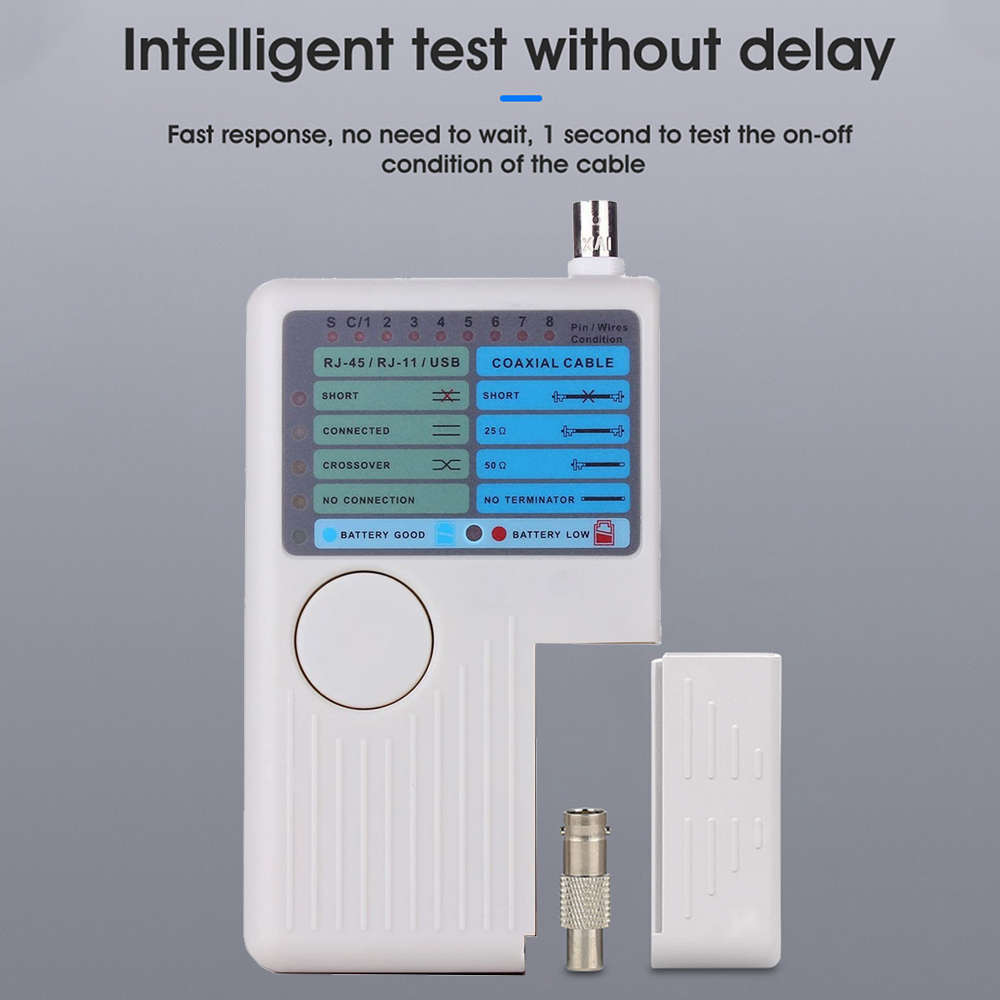

The 4-in-1 multi-function tester is a multi-function network tester with integrated functions. it can test telephone lines, network cables, usb cables, bnc cables, and can quickly test for open, short and reverse connections.
Features:
Straight line or cross indication.The LED indicates the connection and failure of wires and pins.
Portable, lightweight handheld design allows you to carry this remote tester with you anywhere you go.
Compatible with 3 different connector types:RJ11/RJ45/BNC,used to test the detachable module of two remote points.
BNC terminator 25/50 ohm indication.Straight line or cross indication.The LED indicates the connection and failure of wires and pins.
300 feet test distance (RJ-45/RJ-11/BNC).Ergonomic portable handheld design.Powered by 9V alkaline battery (not included).Convenient battery access.
The network cable tester is easy to use and powerful. it is an indispensable professional tool for engineers, professional maintenance personnel and testers.
Operation Instructions:

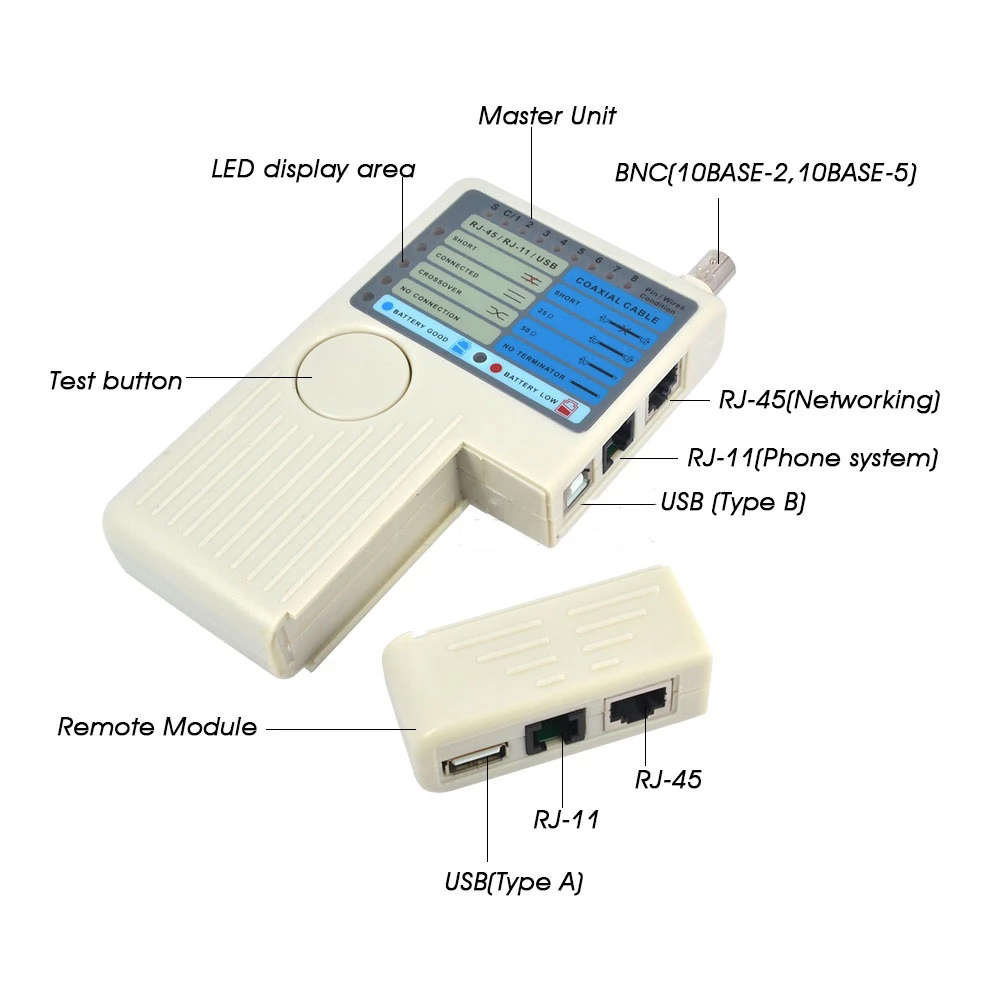

1.Connect one side of the plug to the Main Tester Unit and the other side of plug to Remote Unit.

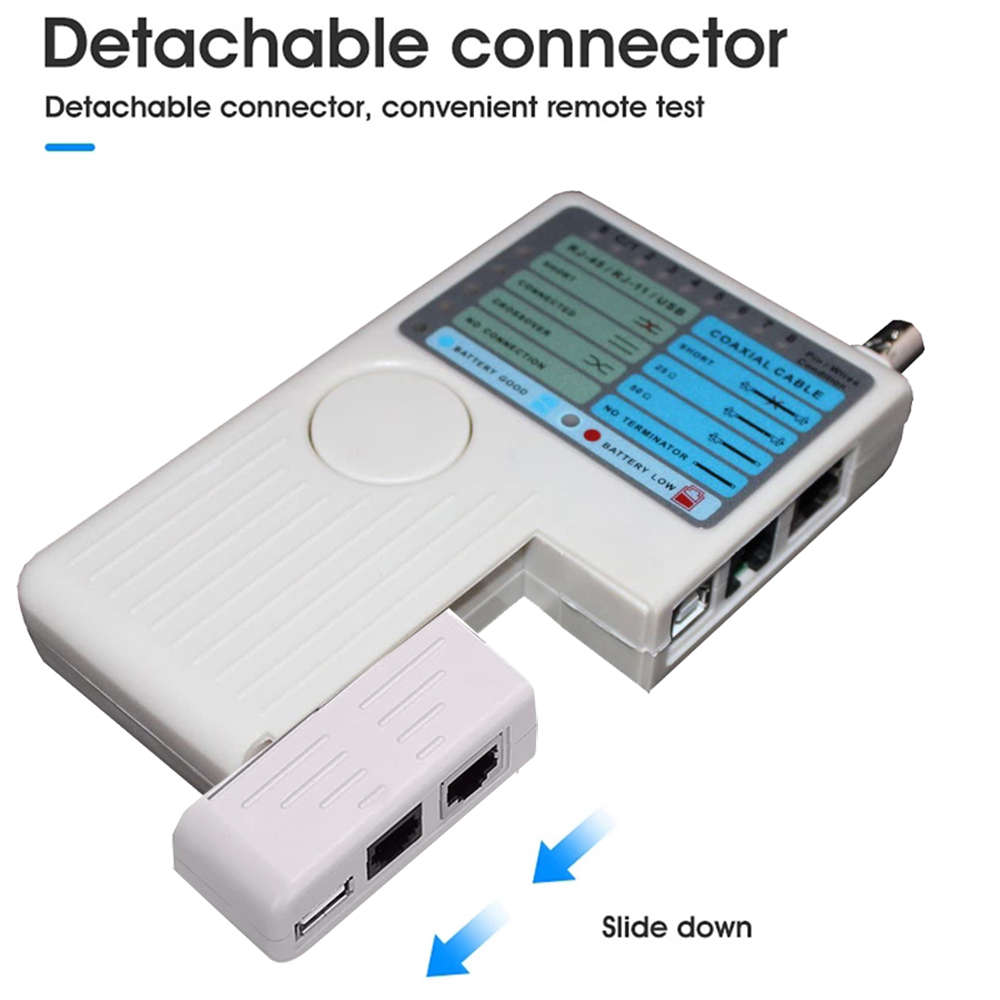

(Remote Unit is seperatable from the Main Unit for remote testing)
2. Press the Push Button on tester.
3. Read the status shown on LED displays.
Following connectors with cables are applicable for testings.
1) RJ 45 plugs - Shielding (STP) or Non-Shielding (UTP).
2) RJ 11 plugs - 6P telephone plug.
3) USB plug - USB/ A type to USB/ B type.
4) BNC - To test the terminator value.
Specifications:
Material: Plastic
Max. Cable Length : 1000ft
Item Dimensions: Appox. 16x8.5x2.5cm
Battery: 9V Alkaline Battery (not included)
Tester Port: RJ45 cable, RJ11 telephone line, USB cable, BNC coaxial line.
Note:
Size may be a little deviation due to manual measurement.
Different displays show the same picture may be slightly differences.
Package include:
1 x 4 in 1 Network Cable Tester
1 x BNC Remote Jack
