Name: 4-in-1 Remote Network Cable Tester for RL-45 RJ-11 USB BNC LAN Cable
SKU: 134268
Price: 147.00 ZAR
Availability: SoldOut
Rating: 5 (2 reviews)

4-in-1 Remote Network Cable Tester for RL-45 RJ-11 USB BNC LAN Cable

11 were available / new

R45.00 minimum increment

R147.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

Nii84764

98.20 % Positive ratings

Buyer protection

How you're covered

Returns

Warranty Type: Dealer 30 days warranty, buyer is responsible for return shipping costs .No claim for physical / water damage or Wear and Tear

Condition

New

Location

South Africa

Customer ratings:

2 ratings

Product code

134268

Bob Shop ID

631804215

Product Description

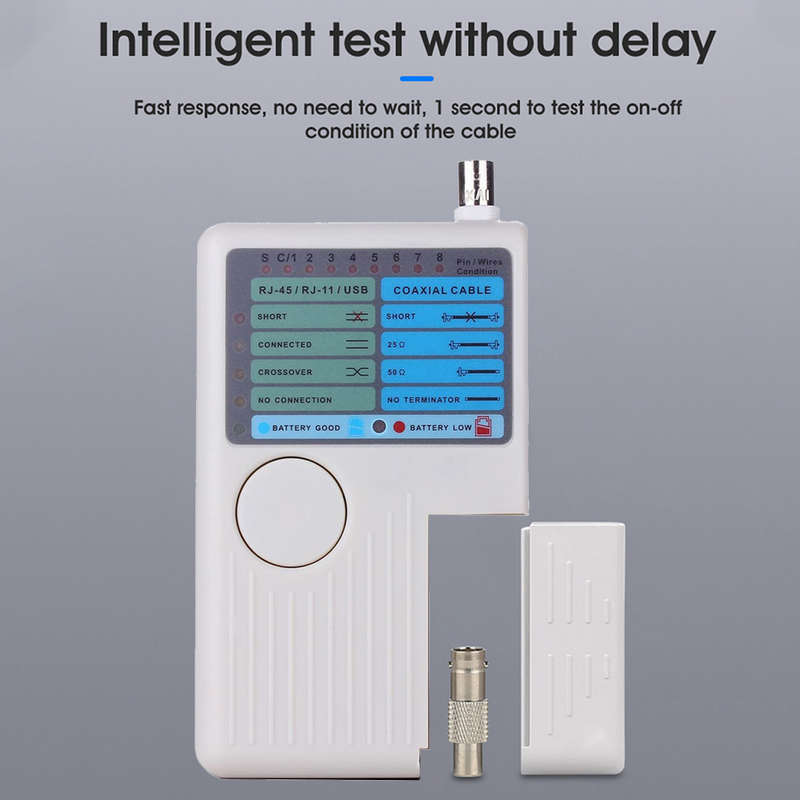

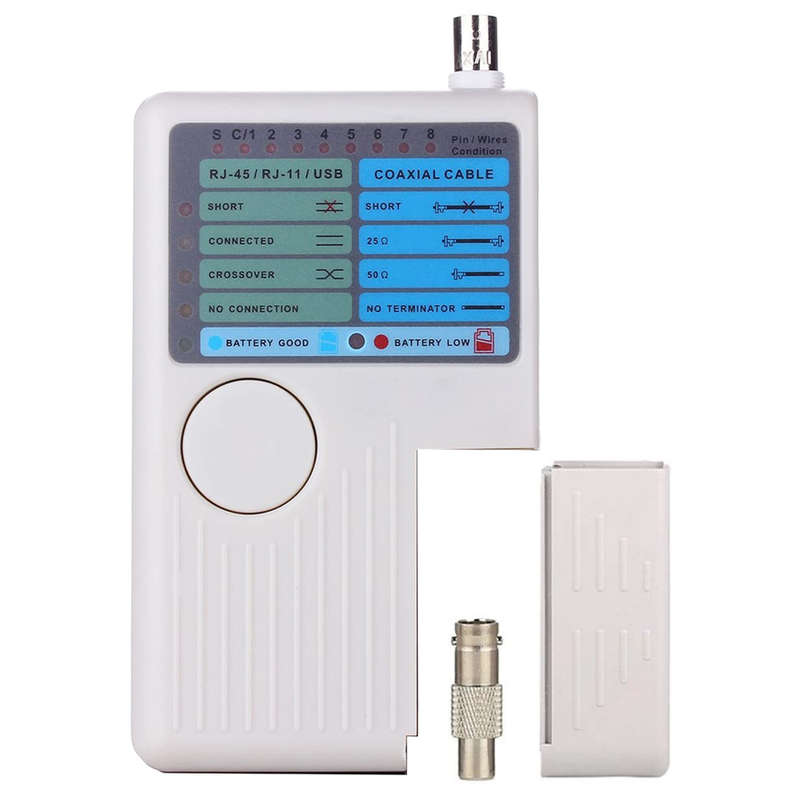

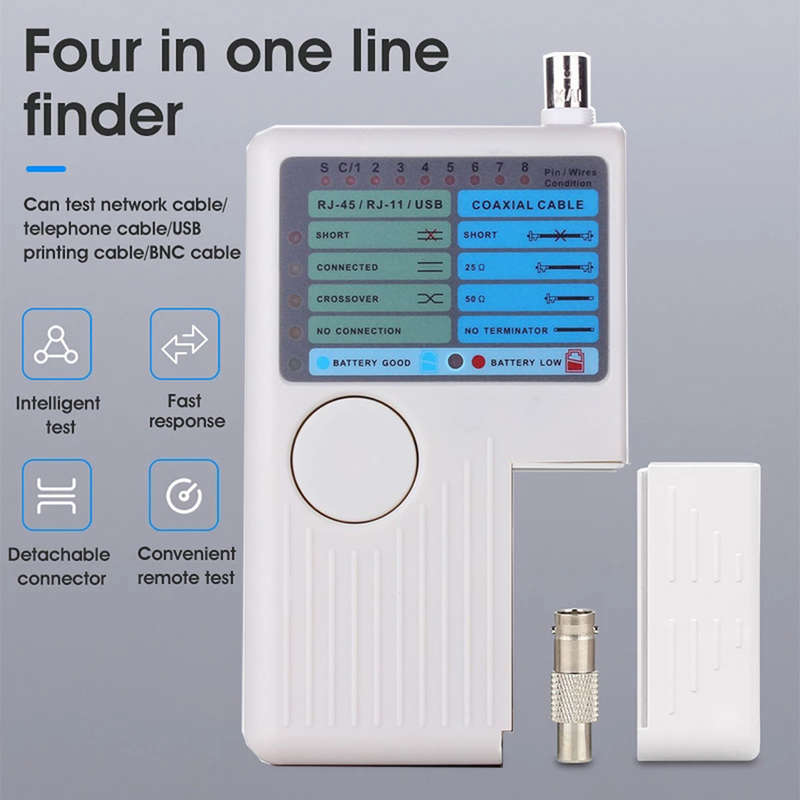

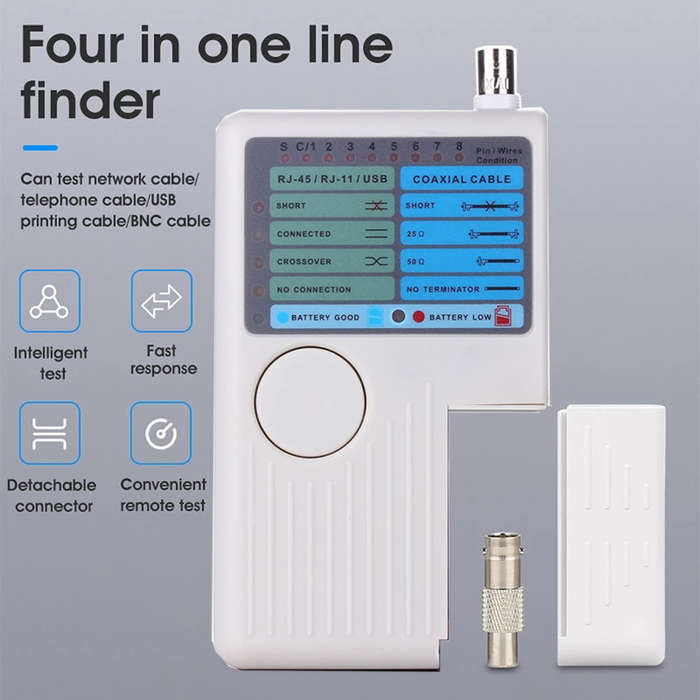

The 4-in-1 multi-function tester is a multi-function network tester with integrated functions. it can test telephone lines, network cables, usb cables, bnc cables, and can quickly test for open, short and reverse connections.

Features:

Straight line or cross indication.The LED indicates the connection and failure of wires and pins.

Portable, lightweight handheld design allows you to carry this remote tester with you anywhere you go.

Compatible with 3 different connector types:RJ11/RJ45/BNC,used to test the detachable module of two remote points.

BNC terminator 25/50 ohm indication.Straight line or cross indication.The LED indicates the connection and failure of wires and pins.

300 feet test distance (RJ-45/RJ-11/BNC).Ergonomic portable handheld design.Powered by 9V alkaline battery (not included).Convenient battery access.

The network cable tester is easy to use and powerful. it is an indispensable professional tool for engineers, professional maintenance personnel and testers.

Operation Instructions:

1.Connect one side of the plug to the Main Tester Unit and the other side of plug to Remote Unit.

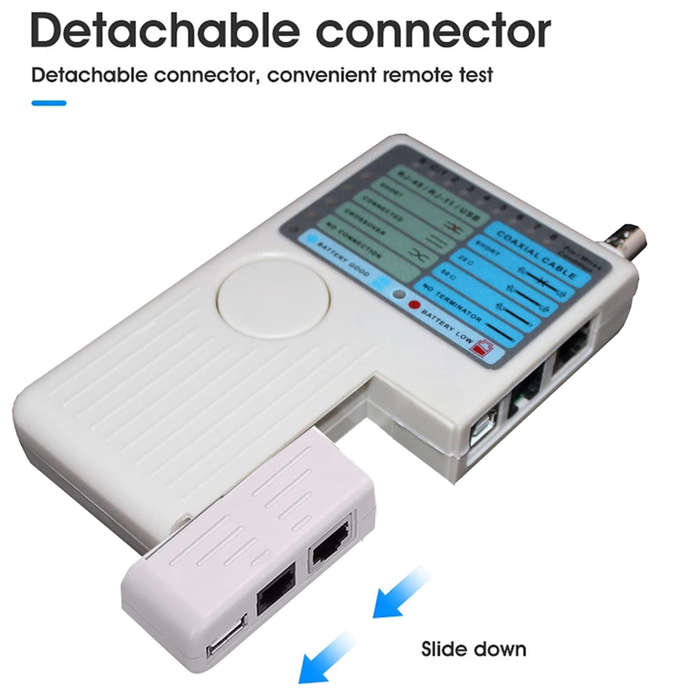

(Remote Unit is seperatable from the Main Unit for remote testing)

2. Press the Push Button on tester.

3. Read the status shown on LED displays.

Following connectors with cables are applicable for testings.

1) RJ 45 plugs - Shielding (STP) or Non-Shielding (UTP).

2) RJ 11 plugs - 6P telephone plug.

3) USB plug - USB/ A type to USB/ B type.

4) BNC - To test the terminator value.

Specifications:

Material: Plastic

Max. Cable Length : 1000ft

Item Dimensions: Appox. 16x8.5x2.5cm

Battery: 9V Alkaline Battery (not included)

Tester Port: RJ45 cable, RJ11 telephone line, USB cable, BNC coaxial line.

Note:

Size may be a little deviation due to manual measurement.

Different displays show the same picture may be slightly differences.

Package include:

1 x 4 in 1 Network Cable Tester

1 x BNC Remote Jack
