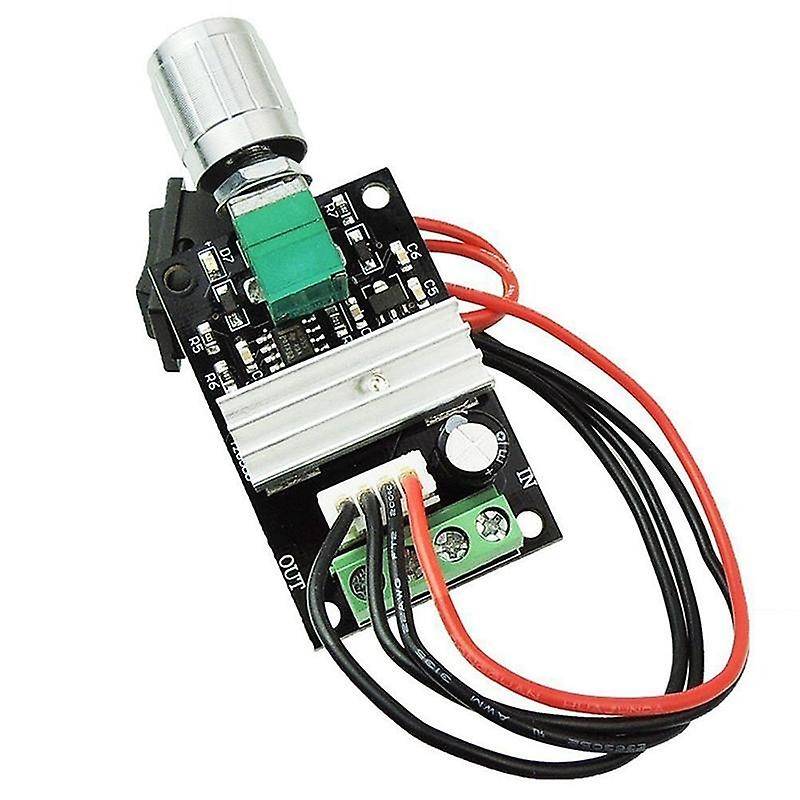

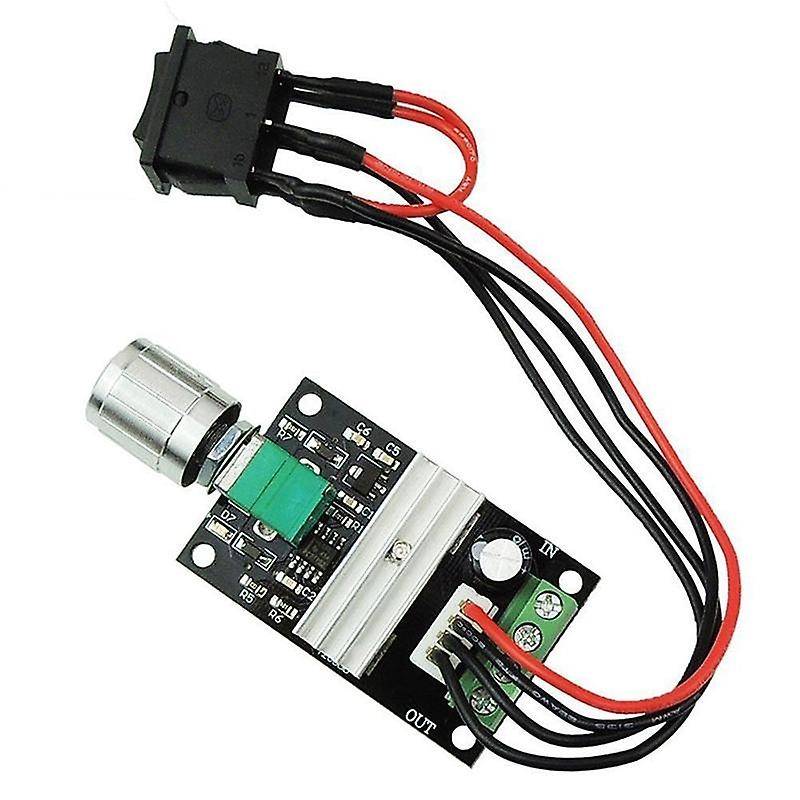

3x Dc Motor Speed Controller (pwm) 1203bb Dc Motor Driver

Color: blackMaterial: ABS,Plastic,metalSize: 5 x 3.2 x 1.5cm.The 1203BB DC Motor Speed Regulator controls the speed of a DC motor by adjusting Pulse-Width-Modulated (PWM). It provides a continuous current of 3A to your DC motor or other DC load. Besides, the circuit also includes a 3A fuse, with reverse connection of power supply and control the forward or reverse direction and the stop of DC motor by switch.The input power range is DC6-28V.Control the forward or reverse direction and the stop of DC motor by switch.Potentiometer with switch function.The switch cable length 15cm.Operating instructionBefore you attempting to wire the controller, make sure that the power is off.1. Connect wires refer to the wiring diagram.2. Turn on the power, and adjust the potentiometer.3. The LED indicates the power up and the speed of motor.Warning: Do not reverse positive and negative power loads. This will damage the controllerPackage Contents:3 x 1203BB 6V 12V 24V 3A 80W DC Motor Speed Controller (PWM) Adjustable Reversible Motor Driver SwitchOnly the above package content, other products are not included.Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
