4 PORT 10/100 POE + 1 LAN

4 PORT 10/100 POE + 1 LAN

New 151 available
R702.03
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
TXE104
Bob Shop ID
643429499

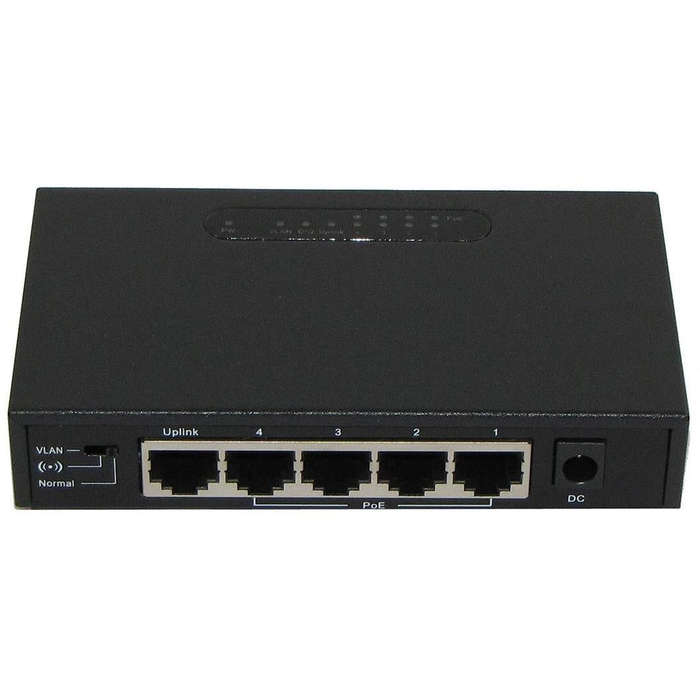

5 PORT 10/100 POE - TXE104

Hardware Specifications

Network Connector_ 5-port RJ45 for 10/100BASE-TX, auto MDI/MDIX

PoE Inject Port: 4-port with 802.3af/at PoE injector function (Port 1 to Port 4)

LED Display: System

Power (Green)

Per PoE port_

PoE (Red/Blue, Port 1 to Port 4)

LNK/ACT (Green, Port 1 to Port 5)

DIP Switch_ Standard mode for 100M

Extend mode for 250m (Based on the cable category)

Switch Architecture_ Store and Forward switch architecture

MAC Address Table_ 1K MAC address table with auto learning function

EST Protection: 4KV

Switch Fabric: 1Gbps

Switch Throughput: 0.74Mpps @64bytes

Maximum Packet Size_ 1536bytes

Flow Control: Back pressure for half duplex. IEEE 802.3x pause frame for full duplex

Power Requirements: 52V DC, 1.25A or 52V0.92A

Power Consumption: Max. 65watts,

Dimensions (W x D x H): 124 x 72 x 24 mm

Power over Ethernet

PoE Standard: IEEE 802.3af Power over Ethernet/PSE

IEEE 802.3at Power over Ethernet Plus/PSE

PoE Power Supply Type: End-span + mid-span

Power Pin Assignment 1/2(+), 3/6(-),

PoE Power Output: Per Port max. 15.4 watts (IEEE 802.3af)

Per Port. max. 30 watts (IEEE 802.3at)

PoE Power Budget: 60 watts

Number of PDs, 7 watts:4

Number of PDs, 15.4 watts:4

Number of PDs, 30 watts:2

Standard Conformance

EMI Safety_ FCC, CE

Standard Compliance_ IEEE 802.3 Ethernet

IEEE 802.3u Fast Ethernet

IEEE 802.3x Flow Control

IEEE 802.3af Power over Ethernet

IEEE 802.3at Power over Ethernet Plus

Environment

Operating Environment 0 - 50 degrees

Hardware Specifications

Storage Environment -10 - 70 degrees C

Operating Humidity: 5 - 95%, relative humidity, non-condensing

Storage Humidity: 5 - 95%, relative humidity, non-condensing

Ordering Information

TXE104 4-Port 10/100Mbps 802.3at/af PoE + 1-Port 10/100Mbps Desktop Switch








NOTE: The above item is sourced from our suppliers and transferred to our Rosebank store only after your order is confirmed and payment reflects in our account. Collections: Orders placed and paid immediately (swipes/cash/EFT) before 11 AM can be collected same day after 4 PM; orders placed after 11 AM will be ready for collection on the next business day. Online Orders/Payments: Allow 24 hours from payment for order processing (Pickup or Courier Dispatch - weekend & holidays not included). Courier Deliveries: Orders placed before 11 AM with immediate EFT payment are delivered next business day in main centres; deliveries to regional areas or large items typically take 35 business days. Payment Notice: Items will not be released until payment reflects in our account. Immediate EFT payments are recommended.
