4 Port 4K UltraHD HDMI Video Splicer Processor | Video Wall Controller spreads image to up to 4 d...

4 Port 4K UltraHD HDMI Video Splicer Processor | Video Wall Controller spreads image to up to 4 displays

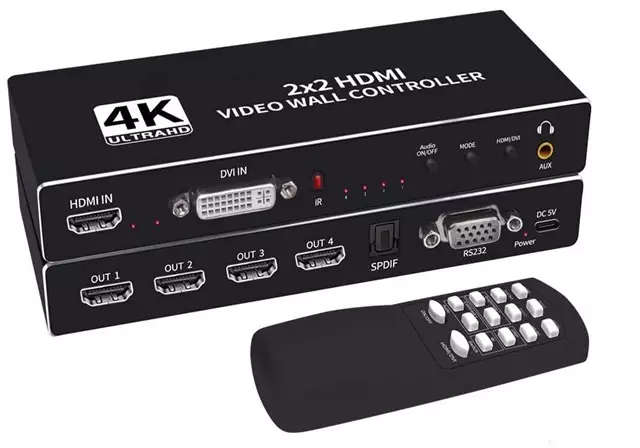

This 4 Port Splicing Processor, supports 1 HDMI or DVI input and 4 HDMI outputs which are spread across multiple screens, it is used to divide a complete HD image signal into various blocks and assign it to different video display units (such as projectors, hdtv's, PC Monitors etc.) and splice one image across multiple displays.

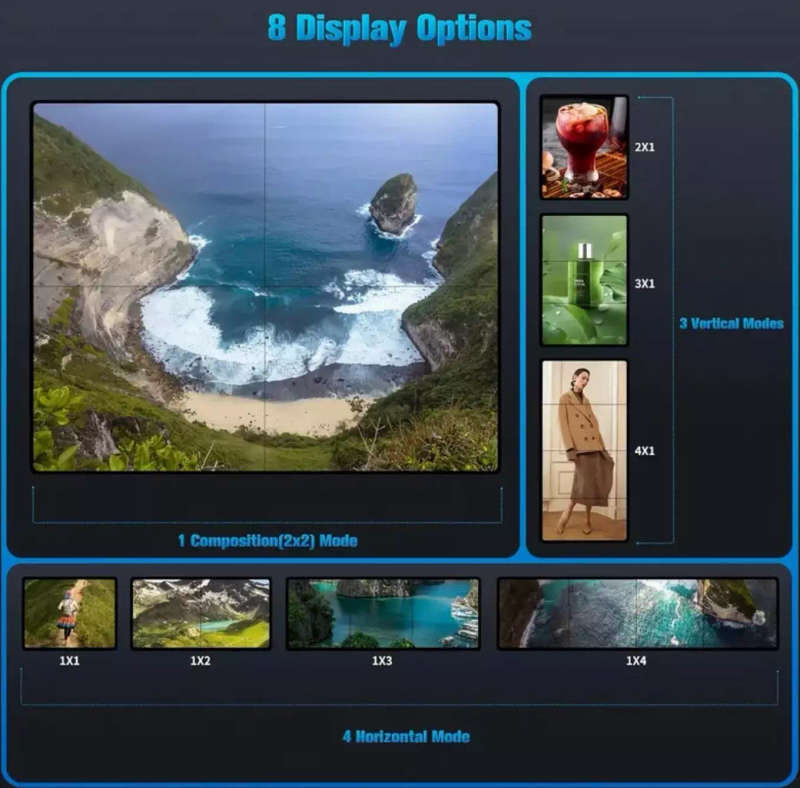

8 Adjustable Display Modes, This 2x2 HDMI video image processor can connect up to 4 LCD TVs or other monitors, which can support multiple display modes, such as 2x2, 1x1, 1x2, 1x3, 1x4, 4x1, 3x1, 2x1. All these modes provide you with splicing options, you can easily switch modes via the IR remote control without getting up or pressing the "Switch" key on the TV wall controller. It also supports advanced RS 232 remote control.

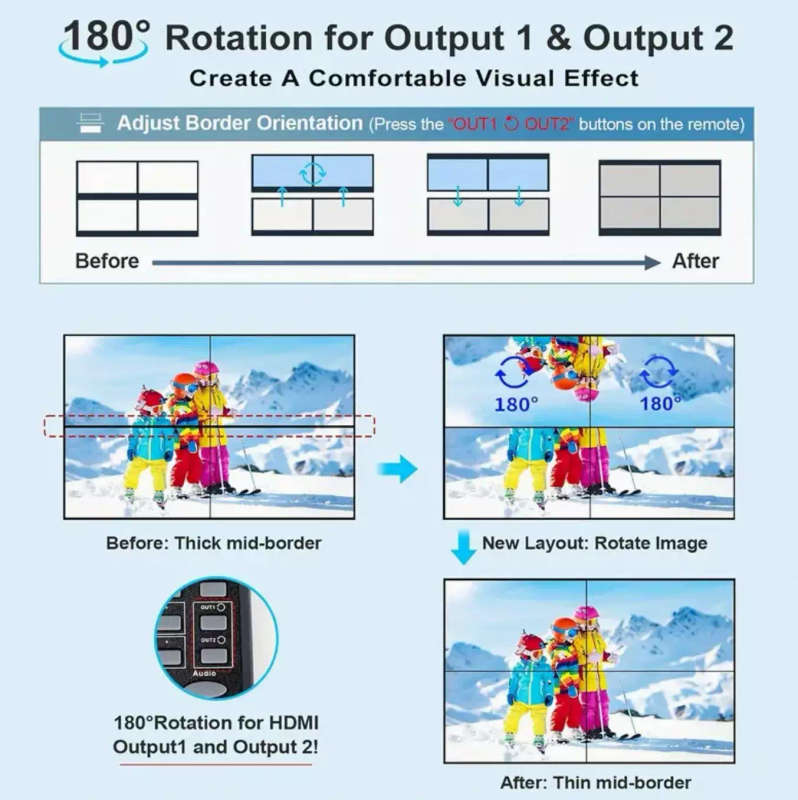

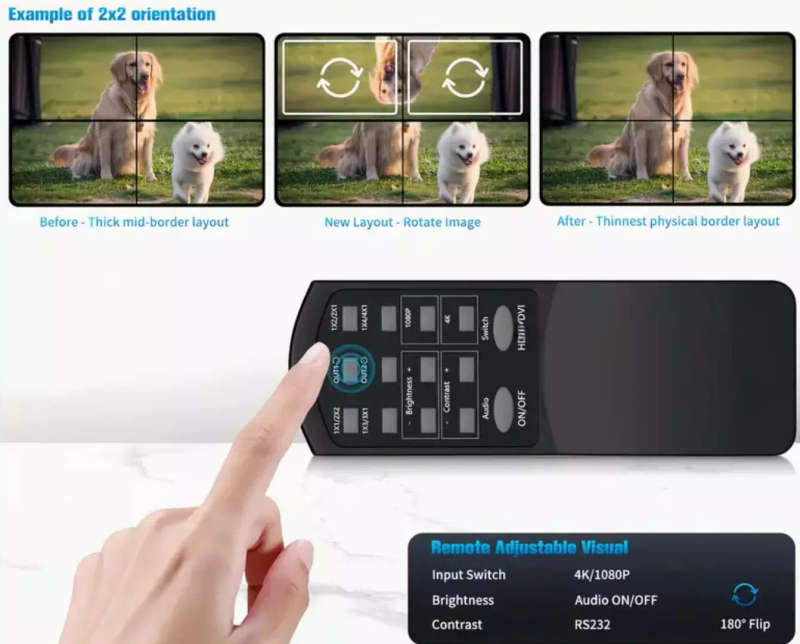

With the rotation function, you can flip the image of HDMI output 1 and output 2 to 180 degrees, which can adjust the screens to an orientation with the thinnest borders while reducing the thick middle border. And the edge mask function can correct and align the image frames and edges, making multiple screens viewing optimized. NOTE: 180°rotation can only work in 2x2 mode.

The Total resolution of this unit is 4K 3840 x 2160 over 4 displays 1080p@60hz = 1920 x 1080 x 4 outputs = 3840 x 2160 total Output display Resolution spread across 4 displays.

It also has an individual 3.5mm stereo audio and an optical SPDIF port which can be connected to an external speaker, amplifier, sound bar, etc.
