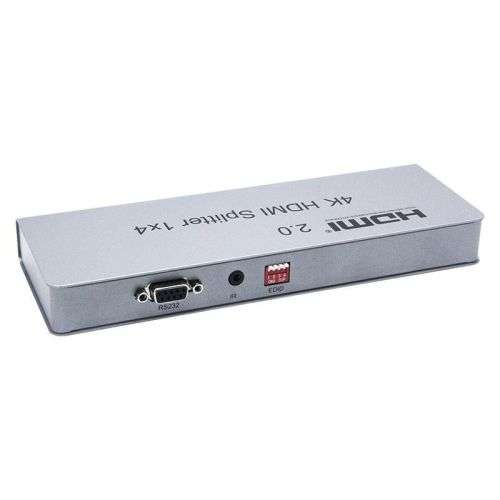

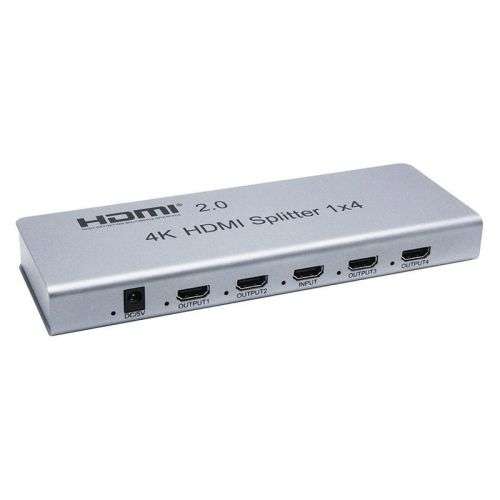

4 Port Out HDMI Splitter 4K v2.0 Ultra HD / 60Hz / IR / EDID / RS232 / PC / HDCP 2.2

1x4 HDMI Splitter 4Kx2K Ultra HD / IR / EDID/ RS232 PC / 3D / 1080p

Features:

1. Duplicates 1x HDMI Source in to 4 Ultra HD HDMI Displays out
2. Built-in IR Extension function.
3. Support single HDMI source, accessing to multiple HDMI sinks/displays, the source can be HDMI Decoder, Set-Top Box, DVD Blu-ray players, PS Game Stations, AV Receiver etc. to two HDMI-enabled displays such as LCD/Plasma/HDTV/Projector ect.
4. Support HDMI 2.0 version / HDCP 2.2
5. Support Full 3D video format
6. Support CEC
7. Support HDMI 4K UHD (ultra-high-definition) with resolution up to 3840X2160 / 60HZ
8. Support highest bandwidth rate of 6Gb/6000 MHz
9. Support deep color 8/10/12 bit
10. Support Audio DTS-HD/Dolbu-True HD/DTS/Dolby-AC3/DSD
11. Support EDID Management
12. Support RS232, Serial Port Online Upgrade
13. Support HDMI standard cable: input up to 8 meters,output up to 8 meters. Up to 15m if <4K resolution.
14. 5V/1A power adapter

Description:

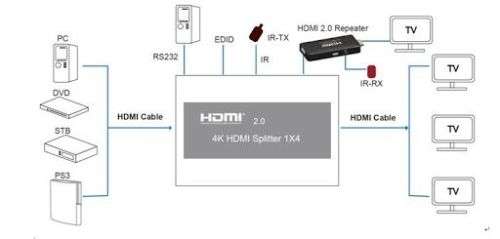

This 1x4 HDMI 4K v2.0, 4-Port Splitter splits and amplifies one HDMI signal from an HDMI Decoder, Set-Top Box, DVD Blu-ray players, PS Game Stations, AV Receiver etc. to four HDMI-enabled displays such as LCD/Plasma/HDTV/Projector etc.  No loss to resolution or bandwidth. In addition it can be placed at the end of a very long HDMI cable to regenerate HDMI signal.  Usually if the input HDMI cable is over 10 meters.  The resolution of this hdmi splitter can go up to 3840X2160/60Hz.  This product also supports EDID management function, comes with eight kinds of EDID modes. In addition, also has IR extension built-in to function with your existing remote controls via the HDMI Repeater supplied.

Package include:

1. HDMI splitter

2. Power adapter (Euro 2 Prong)

3. HDMI Repeater

4. 2x IR eyelets

5. User manual

We are here to assist if you have any questions.
