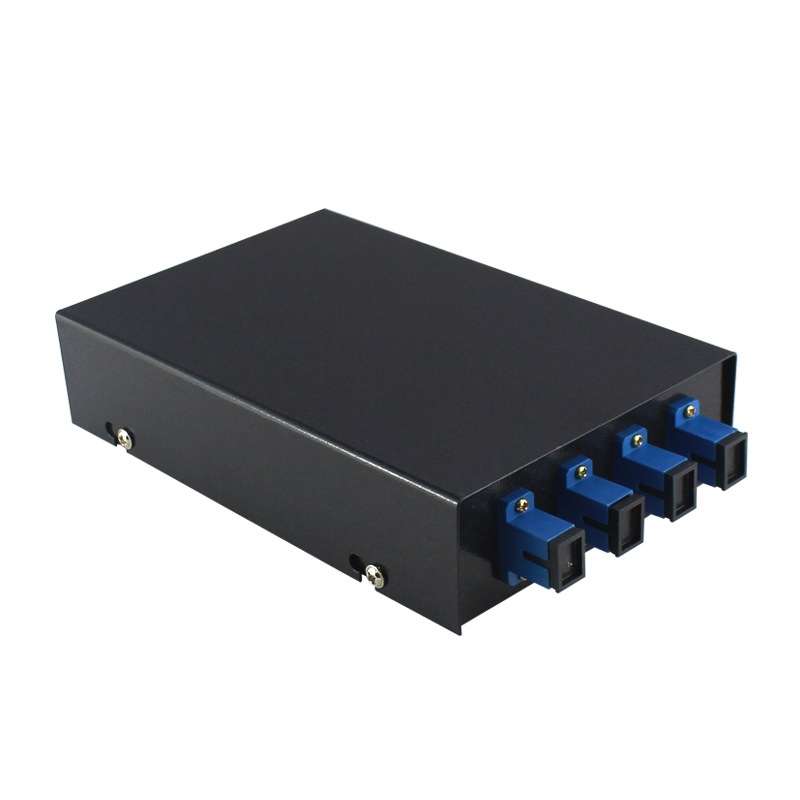

4 Ports Desktop Optical Fiber Terminal Box Founded Wall With SC Tailed Fiber Flange

1. Cold rolled plate, baked enamel housing, easy to operate

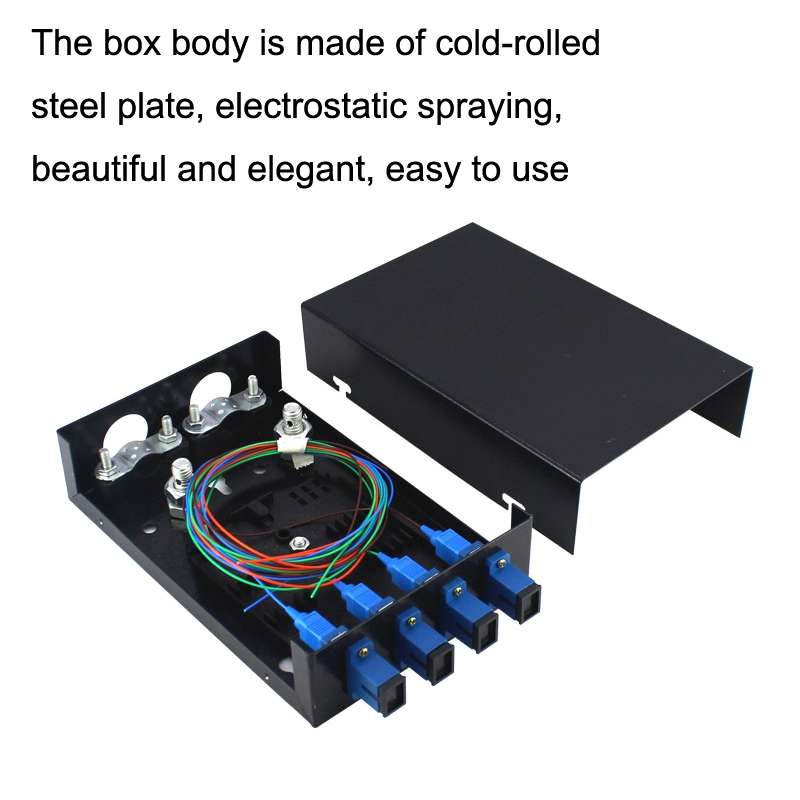

2. The box body is made of cold-rolled steel plate, electrostatic spraying, beautiful and elegant, easy to use

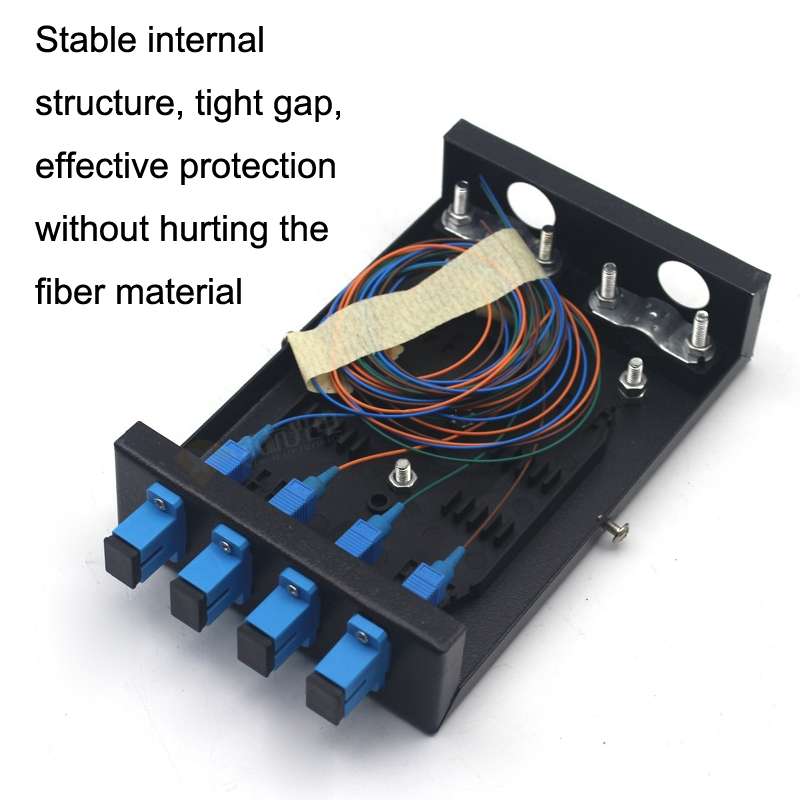

3. Stable internal structure, tight gap, effective protection without hurting the fiber material
4. Reasonable distribution, effective protection

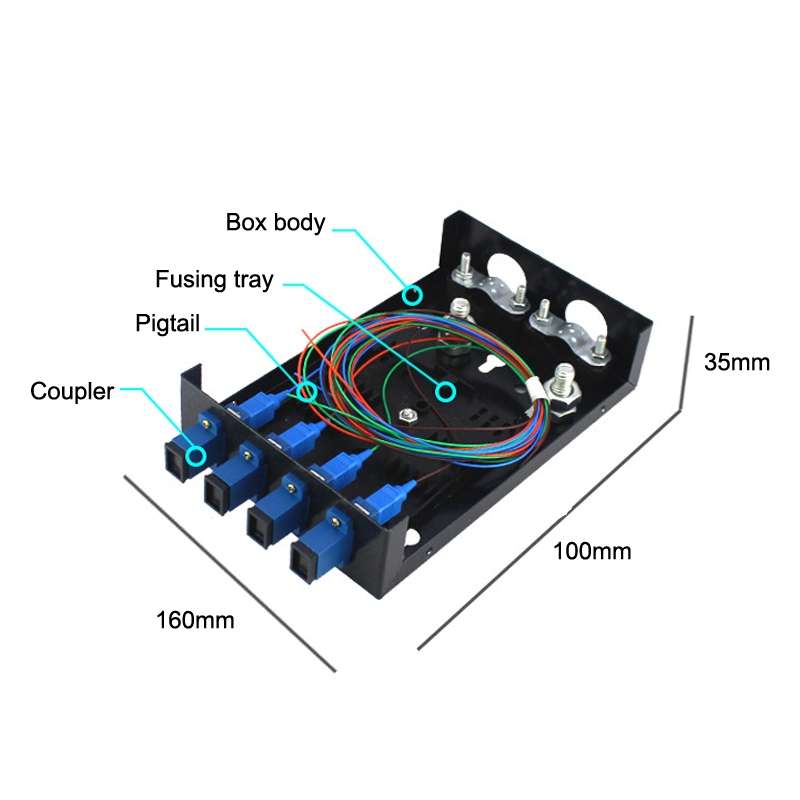

5. Coupler and pigtail, protective connection for optical cable and wiring pigtail
6. Made of nylon plastic for long life and durability
7. Easy to use, not easy to deformation

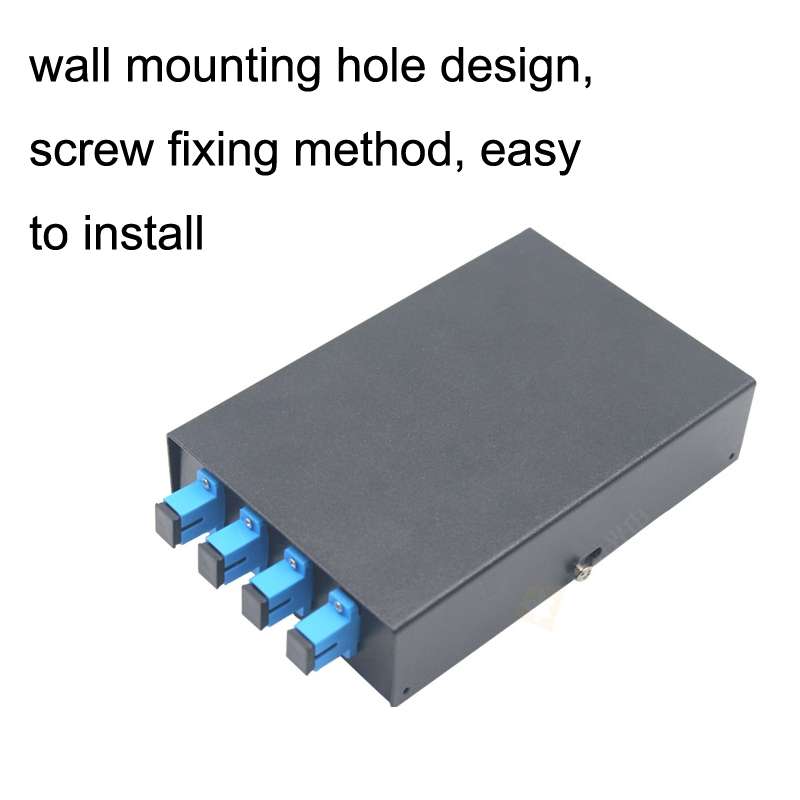

8. Wall mounting hole design, screw fixing method, easy to install
9. Suitable for monitoring, small control boxes and other places with little space
10. Insulation of the technical components of the fibre optic cable and the fibre optic cable end shell, which can be easily led out to earth
11. Additional loss: -0.2dB
12. Voltage resistance: less than 15KV
13. Scope of application: fibre optic fusion/wiring
14. Insulation resistance: more than 2x104 megohm
15. Ambient temperature: -25 to 40 degrees Celsius
16. Radius of curvature of the fiber: 30mm
17. Length of optical fiber on reel: 0.5m
18. Material thickness: 0.8 mm
19. Dimensions: 160x100x35mm
20. Weight: 400g
