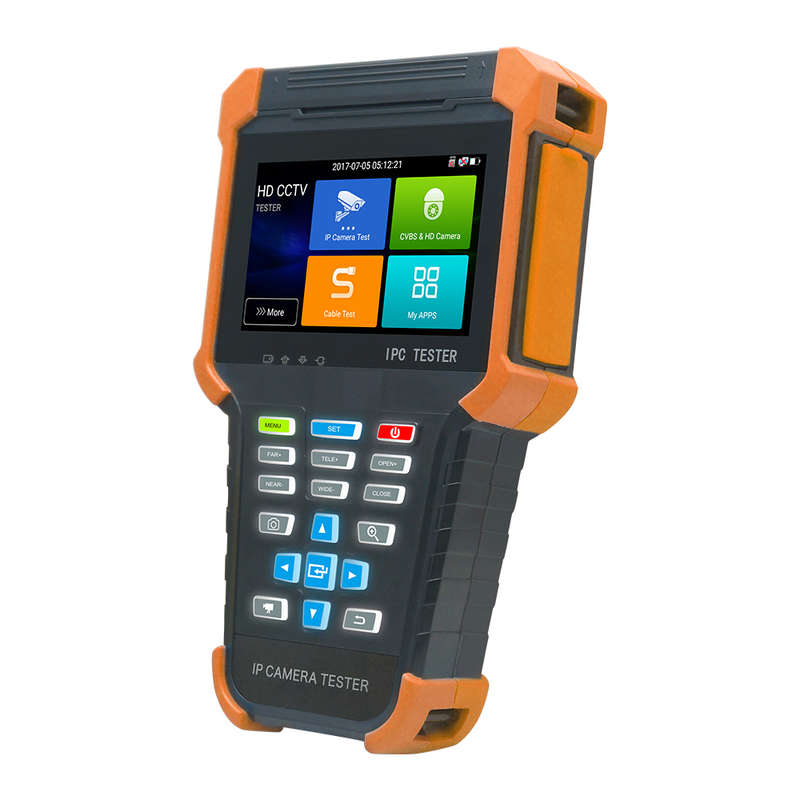

The IPC-X4-ADH is an IP and analog camera tester that is designed to helpinstall and maintain IP and analog cameras. It features a 4-inch touchscreendisplay with an 800 x 480 resolution for displaying network and analog cameras.It can carry out testing for 8MP TVI, 8MP CVI, 5MP AHD & SDI/EX-SDI cameras aswell as can carry out an RJ45 cable TDR test. 4 inch IPS touch screen, 800 x 480 resolutions 8MP TVI, 8MP CVI, 5MP AHD & SDI/EX-SDI test H.265/H.264, 4K video display via mainstream Chrome browser, test and set Axis camera HDMI Input, support 1080P DC12V 3A, DC 48V PoE power output RJ45 cable TDR test, cable quality test Rapid ONVIF& HD camera's Lens simulation and focus function Interface waterproof and dustproof Backlight buttons, easier to operate in the dark Tester Play: Tester, mobile phone, PC display at the same timeCamera test 4 inch IPS touch screen, 800*480 resolutions H.265 & H .264 IP, 4K video display via mainstream 8MP TVI test,3840 x 2160P 15 fps,4xzoom ,video record &playback ,coaxial PTZcontrol & call OSD menu * 5MP AHD test, 2560x1944P12.5F/ 20fps, 4xzoom, video record & playback, coaxialPTZ & call OSD menu * 8MP CVI test, 3840 x 2160P 12.5/15fps, 4xzoom, video record& playback, coaxialPTZ & call OSD menu * HD SDI/EX-SDI camera test, support 1080P 50/60 FPS * Rapid ONVIF, Auto log in and display image, create testing report Len simulation: simulate different lenses display areas up portedlens:"2.8/3.6/4/6/8/12/16/25mm" is for to choose camera lens. AXIS, Hikvision camera test, enter ONVIF app, input username and password totest IP and analog display image at the same time IPC TEST (Non-ONVIF test) ,HIK test tool (Hikvision camera),DH test tool(Dahua camera) CVBS camera test, PTZ controller DC12V/3A power output, camera can be powered from DC 12 Voltage Rapid video, just by one key to detect all network cameras and auto display Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot CVBS loop test, the tester send and receive color bar generator signal, tocheck BNC cable Enhanced Color bar generator, PAL/NTSC multisystem color bar video generatorCable test Improvement cable tester, UTP cable, telephone cable etc order andconnectivity test, can save testing report, if special number, need customized RJ45 cable TDR test, test cable pair status, length, attenuation,reflectivity, impedance, skew etc Cable tracer, search BNC cable, network cable and telephone cable from themess cables *Other Functions Network tool: Ping, IP scan, Port Flash ,DHCP server, Trace Route POE & power information, DC12V& PoE power and voltage output /inputmeasurement Tester Play: Tester, android version mobile phone and PC display at the sametime Shortcut button, drop-down menu, can select Poe power, IP setting, CVBS, LANinfo, HDMI IN etc HDMI signal input,720×480p /720×576p /1280×720p /1920×1080p/1024×768p/1280×1024p /1280×900p /1440×900p display image ,record and snapshot * Traffic monitoring of the tester "LAN port", display network port or WIFIconnection real-time upload and download speeds and other network parameters Customers self update software, you can install apps with android versionMedia player, 4K video files and MKV/MP4 media files play Quick office, quick office app (support excel ,word ,ppt format ) doc.editable 8GB SD card including Display its genuine resolution of the IP camera images Audio in, support record and save the audio/LED lamp, calculators, musicplayers and other application tools 7.4 V /4000mAh Lithium Ion Polymer Battery, after 3~4 hours charging, workingtime lasts 9 hours
