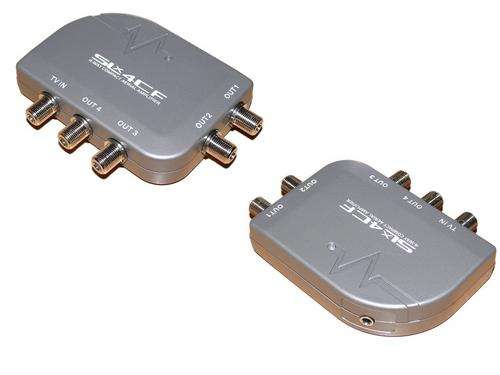

SLx Aerial / RF Splitters are used to distribute a single RF / Aerial signal to multiple displays with RF inputs. Based on your current requirements you may require a 2-port, 4-port or larger splitter. Cable lengths using High Quality RG6U 64 Braid cable can be up to 30m from the SLx Splitter outputs. On longer cable lengths an optional external power adapter can be connected to the SLx to provide additional power for longer cable runs.
Specifications
â Lightweight Compact Design.
â Powered from either RF2 Satellite receiver output or external power supply.
â High Quality 64 Braid RG6U Cable ranges up to ±30 meter from SLx outputs.
â 12V DC Power supply optional with 3.5mm jack connection.
â Model : SLx4CF
â Forward Frequency : 88 - 862 Mhz
â Gain : 8dB
â Reverse Frequency : 5 - 30 Mhz
â Gain : 8dB
â Voltage on Outputs : 9V DC @ 15mA
â Line Power Supply : 9V DC from RF2 out connector of sattellite receiver
â External Power supply : 12v DC
