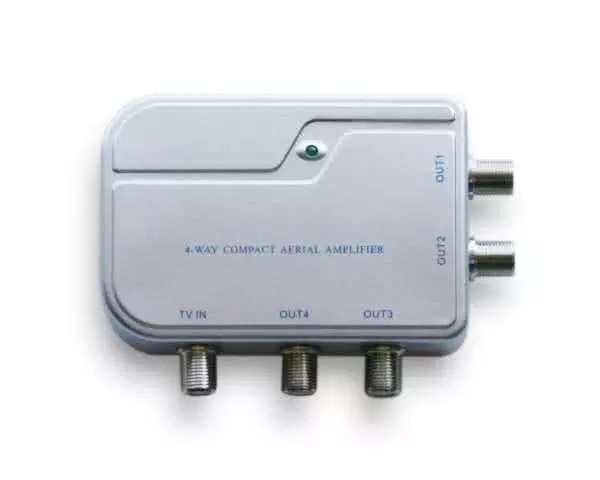

4 Way Powered Active RF Splitter / Compact Aerial Splitter with RF Amplifier and DC Power Pass

4 Way Powered Active RF Splitter Active Compact Aerial Splitter with RF Amplifier and DC Power Pass - Split TV Links or RF Distribution to multiple TV's

Active RF Splitter are used to distribute a single RF / Aerial signal to multiple displays with RF inputs. It is commonly used to split the RF Video from DSTV Decoder to multiple rooms and enable remote changing of channels via a TVLink / IR Eye. Based on your current requirements you may require a 2-port, 4-port or larger splitter. Cable lengths using High Quality RG6U 64 Braid cable can be up to 30m from the Active RF Splitter outputs. On longer cable lengths an optional external power adapter can be connected to the Active RF Splitter to provide additional power for longer cable runs.

Specifications

Lightweight Compact Design.
Powered from either RF2 Satellite receiver output or external power supply.
High Quality 64 Braid RG6U Cable ranges up to 30 meter from Active RF Splitter outputs.
12V DC Power supply optional with 3.5mm jack connection.
Model : Active RF Splitter4CF
Forward Frequency : 88 - 862 Mhz
Gain : 8dB
Reverse Frequency : 5 - 30 Mhz
Gain : 8dB
Voltage on Outputs : 9V DC @ 15mA
Line Power Supply : 9V DC from RF2 out connector of satellite receiver
External Power supply : 12v DC

Band

• I (VHF) II (FM) III (VHF) IV (UHF) V (UHF)

• UHF Channel No
  • 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68
• Frequency Range (MHz)
  • 47-68, 87.5-108, 174-230, 470-622, 622-862
• Vision Carrier (MHz)
  • 471.25, 479.25, 487.25, 495.25, 503.25, 511.25, 519.25, 527.25, 535.25, 543.25, 551.25, 559.25, 567.25, 575.25, 583.25, 591.25, 599.25, 607.25, 615.25, 623.25, 631.25, 639.25, 647.25, 655.25, 663.25, 671.25, 679.25, 687.25, 695.25, 703.25, 711.25, 719.25, 727.25, 735.25, 743.25, 751.25, 759.25, 767.25, 775.25, 783.25, 791.25, 799.25, 807.25, 815.25, 823.25, 831.25, 839.25, 847.25
• Sound Carrier (MHz)
  • 477.25, 485.25, 493.25, 501.25, 509.25, 517.25, 525.25, 533.25, 541.25, 549.25 557.25, 565.25, 573.25, 581.25, 589.25, 597.25, 605.25, 613.25, 621.25, 629.25, 637.25, 645.25, 653.25, 661.25, 669.25, 677.25, 685.25, 693.25, 701.25, 709.25, 717.25, 725.25, 733.25, 741.25, 749.25, 757.25, 765.25, 773.25, 781.25, 789.25, 797.25, 805.25, 813.25, 821.25, 829.25, 837.25, 845.25, 853.25

The power supply below can be used with this product:
