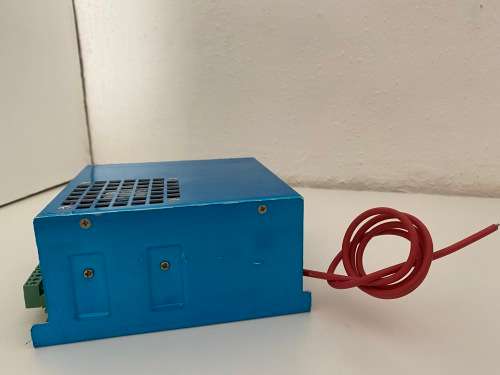

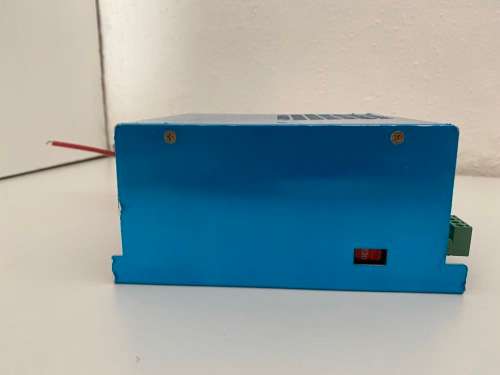

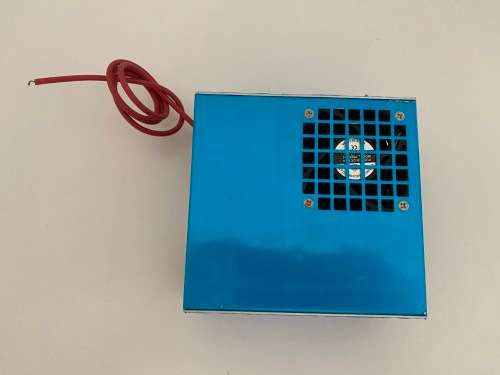

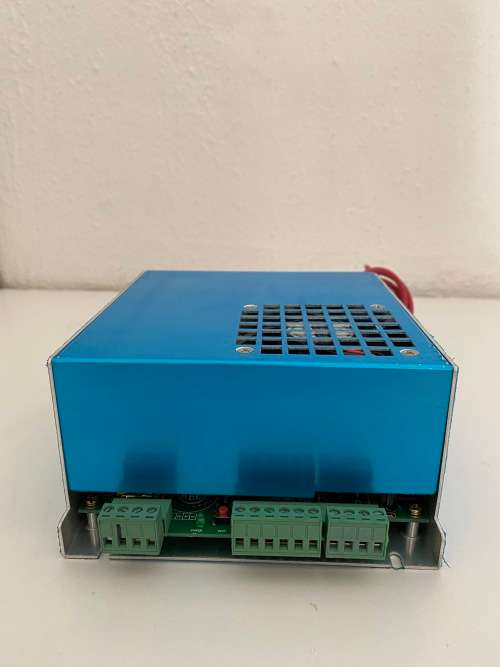

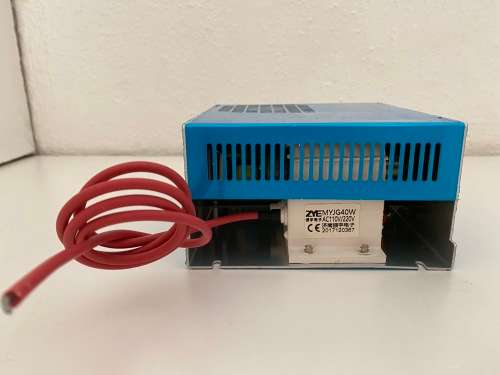

40 Watt Laser Cutter Power Supply - New Open Box - Never Used

*Please Contact for Shipping Costs

Specification:
Material: Metal
Color: Silver with Blue protective film
Size: Approx.165*145*80mm
Input Voltage: AC220V/AC110V; DC300V/DC150V
AC frequency: 47~440HZ
Max Input Power: 440W
Max Input Current: 3A
Max Output Voltage: DC 22kV
Max Output Current: DC 22mA
Efficiency: 90% (Full load)
MTBF: 10000 Hours
Response Speed:  1ms (Time from the TTL Signal is given to the output current up to 90% pre-setting current)
Withstand Voltage: Input-Output, Input-Enclosure: AC1500V 10mA 60S, Output cathode is connected with enclosure.
Environment: Operating temperature: -10~40
Relative Humidity: 90%
Cooling: Forced air cooling (fan cooling)

Features:
- Quick response speed and effect high performance cutting power.
- Easy control: the start and stop of laser can be easily controlled by TTL level.
- The power supply has output open circuit protection.
- The power supply has TTL signal indication, water through signal indication and laser output indication.
- This power supply has the Button to test output laser manually.

Package Included:
1 x Laser Power Supply
