Please do not bid if you cannot pay withing 24 Hrs.
\

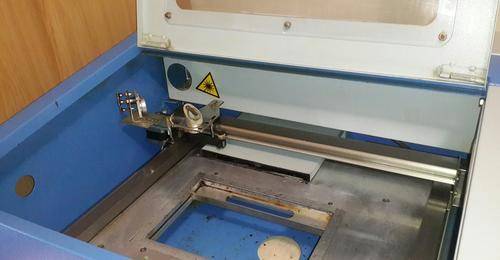

Technical Information:

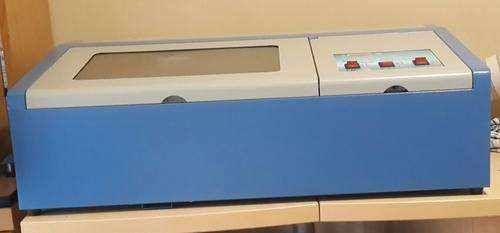

1. Laser Engraving Machine Dimensions: 800 x 500 x 250 mm.
2. Laser Engraving Machine weight: 30 Kg.
3. Laser Engraving Area: 200 x 300 mm.
4. Laser Power: 40 Watt.
5. 220 Volt power
6. Power Consumption: >205 Watts.
7. Engraving Speed: 0 - 350 mm/s.
8. Cutting Speed: 0- 35 mm/s.
9. Re-positioning tolerance: 0.01 mm
10. Stepper Motor Control for precision.
11. Operating Temperature: 0 - 45 Degrees Celsius.
12. Resolution Ratio: 1000 Dpi.
13. Maximum shaping character: 1 x 1 mm.

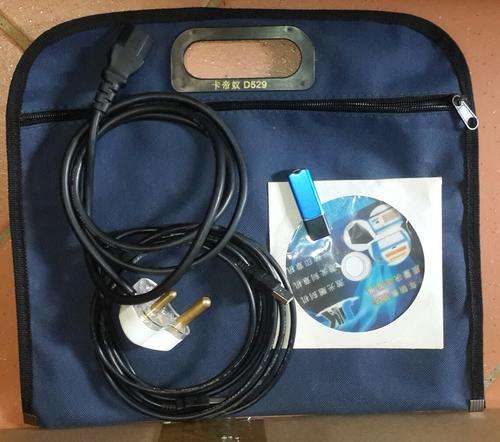

14. USB Interface to any PC.

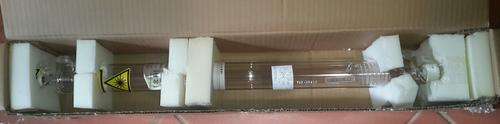

15. Laser Tube life expectancy: 1000 - 1300 hours (I have used the machine with it's current tube approx. 250 Hrs)
16. Software - Corel Draw, Lasercut, Corel Laser.
17. Graphic format supported: BMP, JPG, WMF, EMF,PLT ect.
18. Water pump included for Laser Tube Cooling.
19. Smoke exhaust pipe included.
This is an ideal hobby machine or can be used to start you own business from home.
Your total cutting time - including the new tube - will amount to approximately 2000 to 2300 Hrs - this is an estimate.

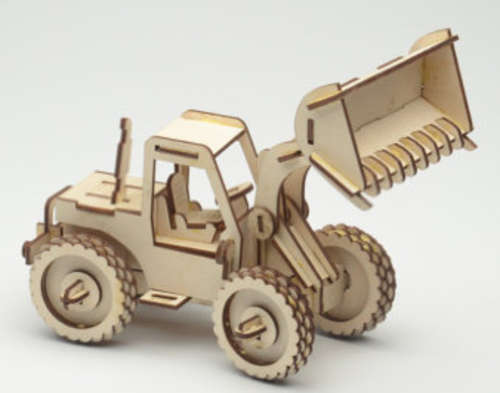

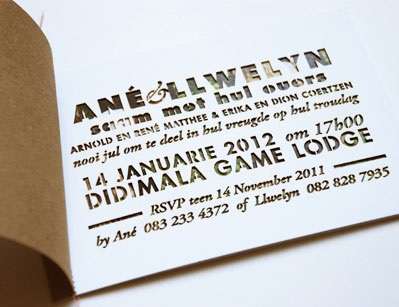

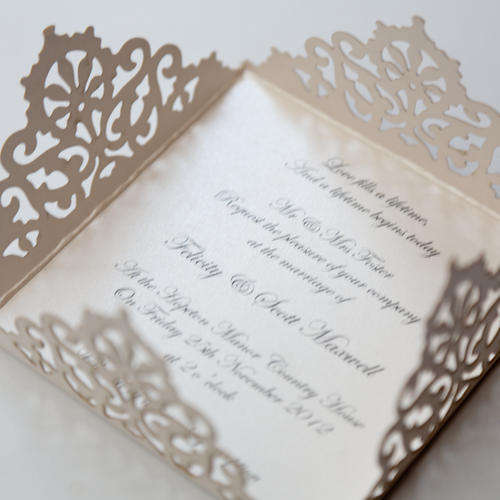

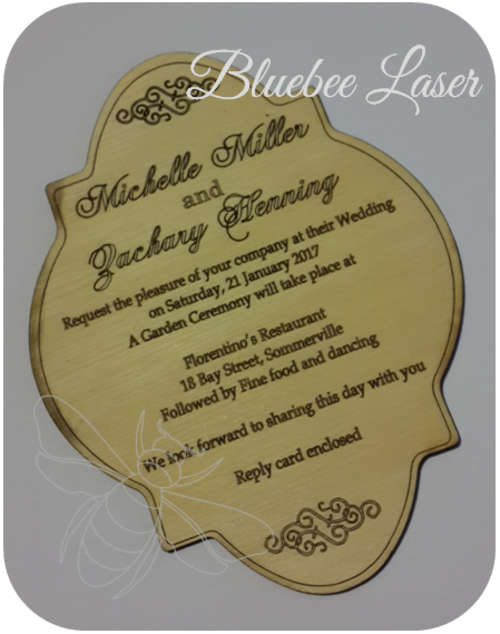

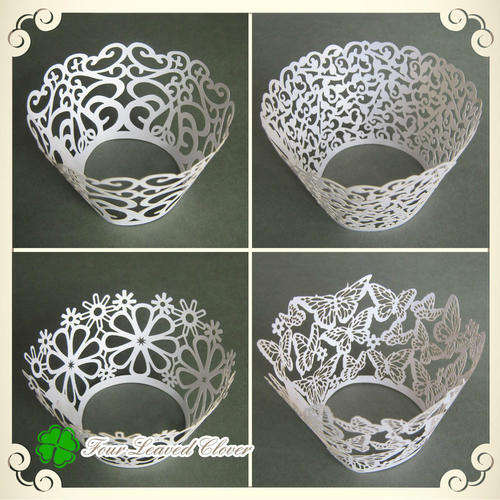

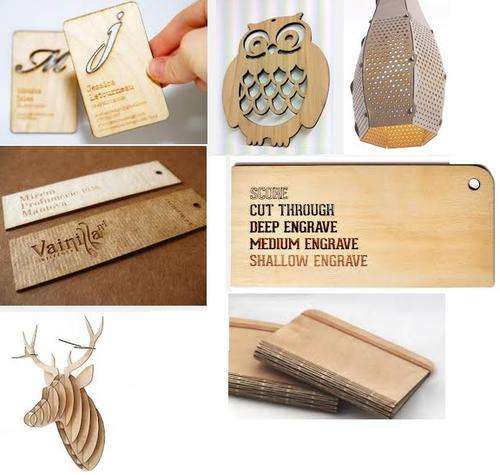

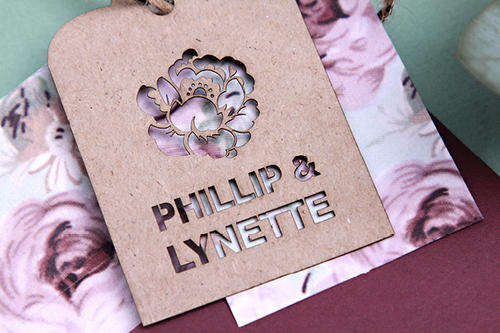

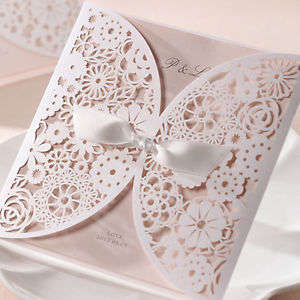

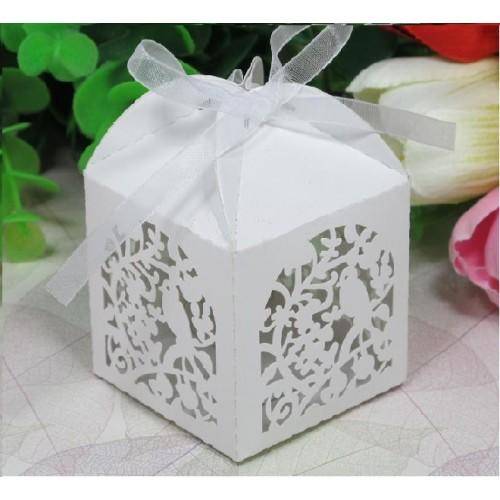

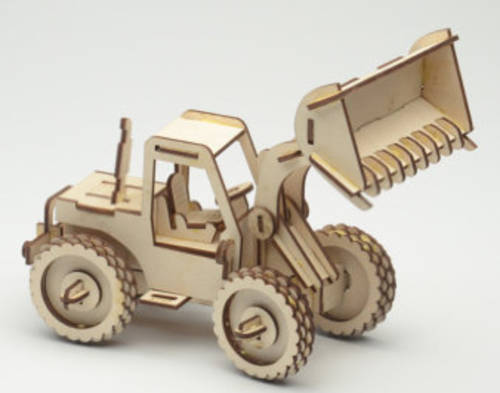

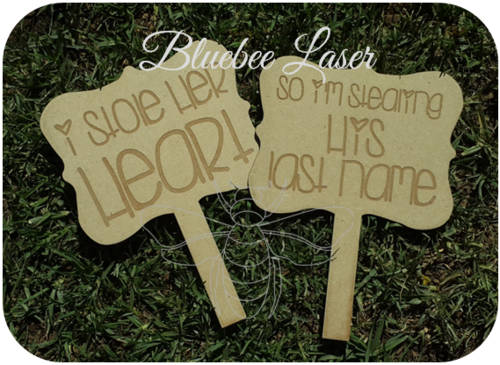

The machine can cut up to 3 mm wood at 2 passes, felt, cardboard, paper, plastic, perspex etc.
The machine cannot cut aluminium, brass or metal - but you can engrave on metal - using the correct spray-paint - and then engrave.
It is an awesome little machine - that I used to build my own business from the ground up.
I have purchased a larger machine - and therefore have no time to run both.
