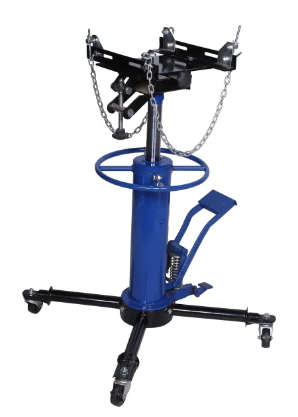

400 kg 2-Stage Telescopic Transmission Jack

Hydraulic Transmission Jack Features:

• Primary Purpose:

  • The Hydraulic Transmission Jack is designed for the installation and removal of transmissions in automotive and light truck applications. It is built to handle the specific challenges of lifting and maneuvering heavy transmissions with ease.
  • Precision Lifting: The adjustable tray and pedal-operated mechanism provide precise control, ensuring proper alignment and safe positioning of transmissions during installation or removal.

• Maneuverability:

  • Equipped with four swivel casters and an auxiliary ring, this jack ensures smooth and easy movement on various surfaces, allowing the user to effortlessly position it under the vehicle or move it around the workshop.
  • The swivel casters provide enhanced maneuverability, even in tight spaces, while the auxiliary ring helps secure the transmission during lifting.

• Design and Performance:

  • The jacks pedal-operated design provides easy lifting and lowering, reducing manual effort and improving overall efficiency during heavy-duty tasks.
  • This design enhances the jack's ability to handle tough jobs, offering a reliable tool for professionals and enthusiasts alike. It raises the standard of both performance and reliability in transmission servicing.

Key Specifications:

• Safe Working Capacity:

  • 0.4 Ton (400 KG)
  • The jack is designed to safely lift transmissions and components weighing up to 400 kilograms, making it ideal for handling a wide range of transmissions in automotive and light truck repairs.

• Height Range:

  • Minimum Height: 568 MM
  • Maximum Height: 1,770 MM
  • This height range allows for flexible use, from working on low-clearance vehicles to larger trucks that require higher lifts for transmission servicing.

• Lift Plate Dimensions:

  • Lift Plate Size: 370 x 250 MM
  • The large dimensions of the lift plate provide ample surface area for supporting heavy transmissions, ensuring stable lifting and minimizing the risk of slippage or damage.

• Pedal Activated Mechanism:

  • The jack features a pedal-activated lifting system, making it more convenient and efficient for operators who need to control the lifting process without manually operating a handle.

• Clearance:

  • Clearance: 568 MM
  • This clearance is ideal for positioning the jack under vehicles with low ground clearance, allowing for precise and safe transmission lifts.

Package Information:

• Package Weight:

  • Weight: 76.00 KG
  • The significant weight reflects the robust and durable construction of the jack, built to handle heavy lifting tasks reliably and withstand frequent use in demanding environments.

• Package Dimensions:

  • Length: 58.00 CM
  • Width: 37.00 CM
  • Height: 83.00 CM
  • The compact package dimensions ensure that the jack can be efficiently stored and transported, while also providing adequate protection during shipping.

Benefits and Applications:

• Precision and Control:

  • The adjustable tray and pedal-operated design provide the user with precise control when installing or removing transmissions, ensuring accurate alignment and reducing the risk of damage to components.

• Enhanced Maneuverability:

  • With four swivel casters and an auxiliary ring, this jack offers superior maneuverability, making it easy to position under vehicles and transport within a workshop, even in tight spaces.

• Heavy-Duty Performance:

  • The 0.4 Ton capacity is ideal for lifting heavy transmissions, while the height range accommodates a wide variety of vehicles and transmission types, making it versatile for many tasks in automotive repair shops, mechanics' garages, and workshops.

• Durability and Reliability:

  • Built with high-quality materials and a sturdy frame, this hydraulic transmission jack is designed for long-term use, providing reliability and consistent performance throughout its life.
