4000W / 230V LCD-programmable Solar powered Geyser controller/water heater with probe.

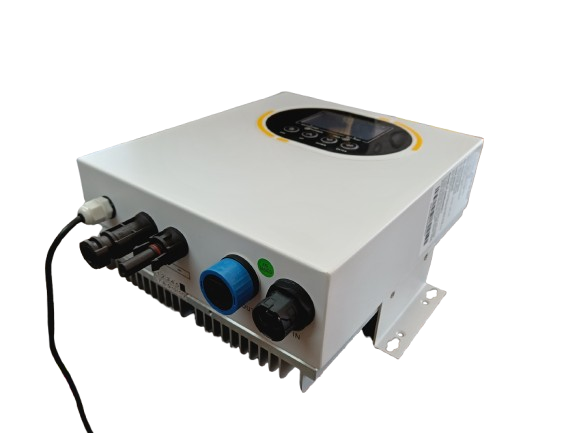

The Power-Box accepts AC from your electricity provider or DC from photovoltaic panels as input to heat your existing electrical geyser. Hard-wired probe to detect geyser temperature (4m cable replaces thermostat).

WARNING  :

RESISTANCE HEATING EQUIPMENT ONLY!

DO NOT CONNECT CAPACITIVE/INDUCTIVE LOADS!

Features:

• Intelligent AC-Solar switching.

• MC4 connectors for solar panels.
• MPPT PV controller.

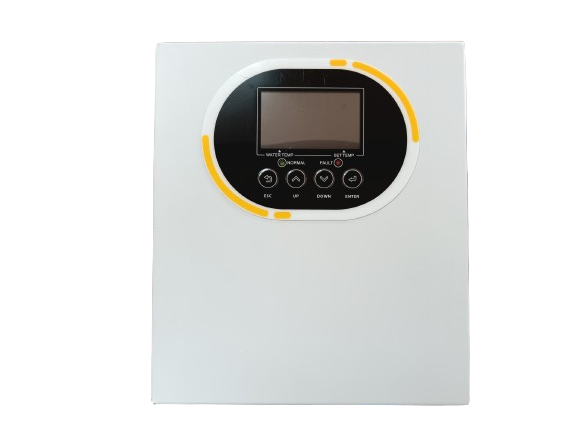

• LCD-screen for monitoring & programming.

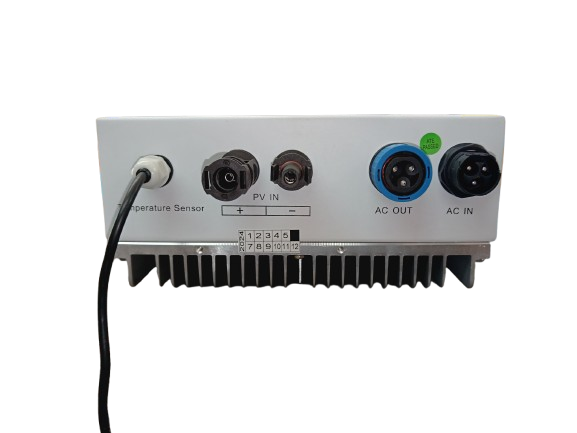

• Easy connect and disconnect from AC-input & output.
• Probe-wire length : 4m (fixed).

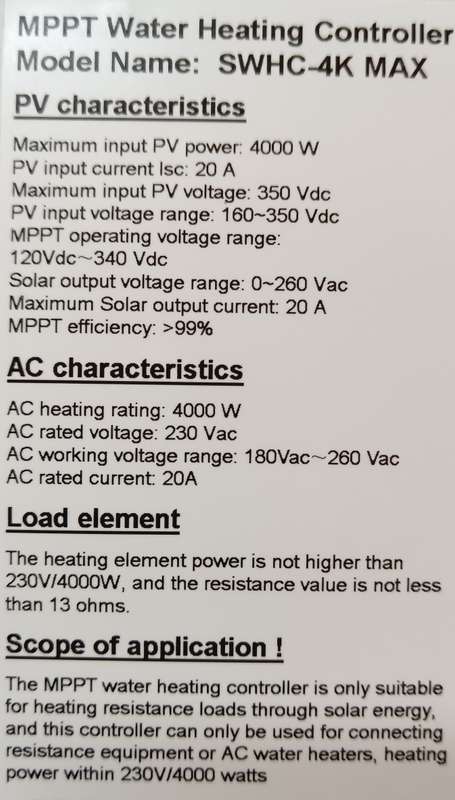

Power-Box Specifications:

• Max PV input : 4000W
• PV input voltage range: 160VDC to 350VDC
• MPPT operating voltage : 120VDC to 340VDC
• PV input current max: 20A
• AC input voltage: 180VAC to 260VAC
• Machine dimensions: 213 x 187 x 80mm
• Package dimensions : 299 x 265 x 170 mm
• Weight: 3 kg
• IP rating: IP 65 (Waterproof, can be installed outside)
• MINIMUM 450W / 550W PANELS = 4 (connected in series).
• MAXIMUM 450W / 550W PANELS = 7 (connected in series).
• For 2kw element/load : MINIMUM 5 x 450W solar panels.
• Solar panels NOT INCLUDED.

Protection:

• Built-in PV short-circuit protection & Over temperature protection.
• Alarm functions for : AC Input voltage high & PV input voltage high.

What is in the box:

• Power-Box.

• Mounting plate x 2 including screws.

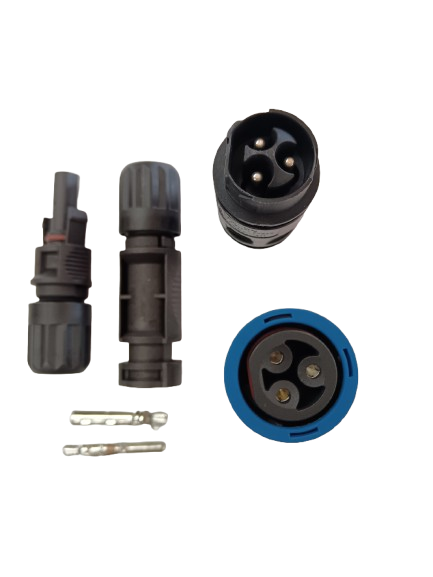

• 1 x set MC4.
• AC input & AC output connectors.

Installation:
It is recommended that this product is installed by a competent, qualified electrician.

Warranty :

24 months.
