4000W / 230V Solar powered Geyser controller/water heater.

The Power-Box accepts AC from your electricity provider or DC from photovoltaic panels as input to heat your existing electrical geyser.

Features:

• Intelligent AC-Solar switching.
• Status LED's
• MC4 connectors for solar panels.
• MPPT PV controller.


Power-Box Specifications:

• Max PV input : 4000W
• PV input voltage range: 160VDC to 350VDC
• MPPT operating voltage : 120VDC to 340VDC
• PV input current max: 20A
• AC input voltage: 180VAC to 260VAC

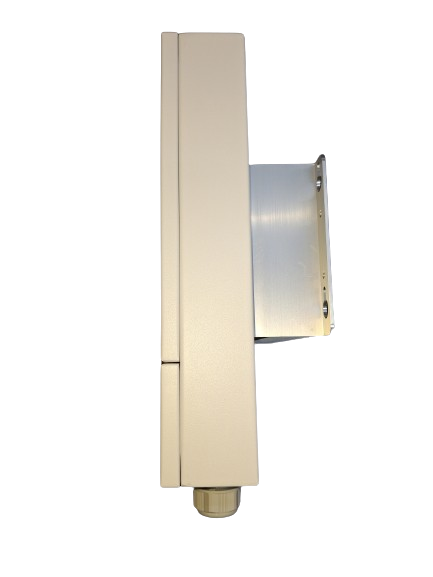

• Machine dimensions: 255 x 201 x 95 mm
• Package dimensions : 363 x 272 x 170 mm
• Weight: 3 kg
• IP rating: IP 65 (Waterproof, can be installed outside)
• MINIMUM 450W / 550W PANELS = 4 (connected in series).
• MAXIMUM 450W / 550W PANELS = 7 (connected in series).
• For 2kw element/load : MINIMUM 5 x 450W solar panels.
• Solar panels NOT INCLUDED.

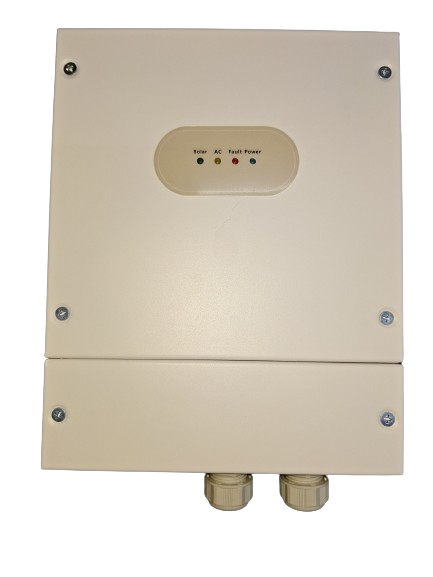

LED Status :

• Green  : Solar heating
• Yellow : AC heating
• Red     : Fault
• Blue     : Controller power

What is in the box:

• Power-Box.

• Mounting plate x 2 including screws.
• 1 x set MC4.

Installation:
Geyser Thermostat is used for temperature control.

It is recommended that this product is installed by a competent, qualified electrician.

Warranty :

24 months.
