400Pcs Heat Shrink Butt Crimp Solder Seal Electrical Connectors

400Pcs Heat Shrink Butt Crimp Terminals, Waterproof Solder Seal Electrical Connectors (10004606)

EASY AND FAST PROCESS:

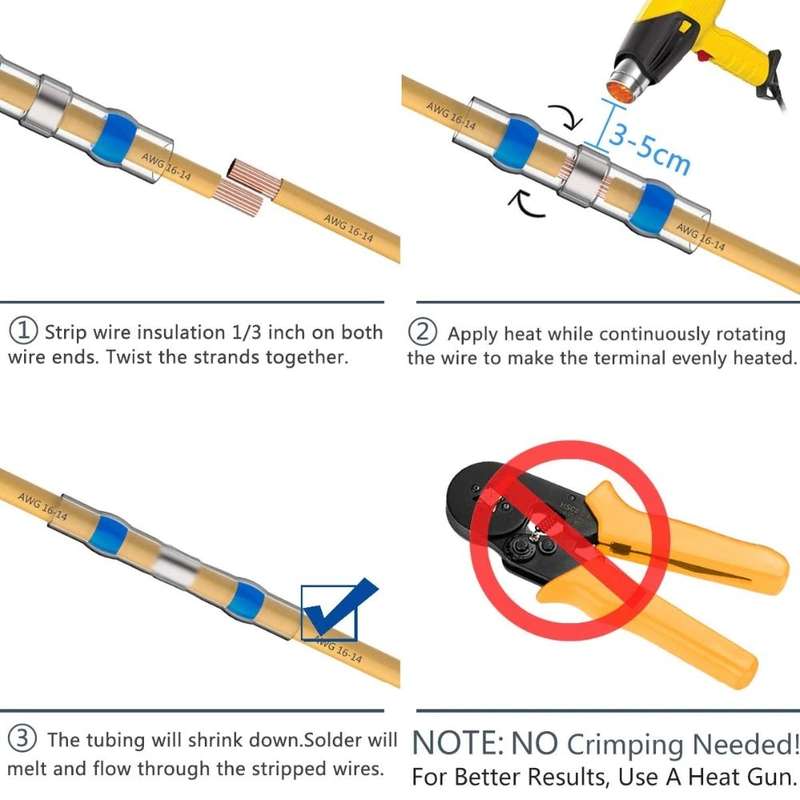

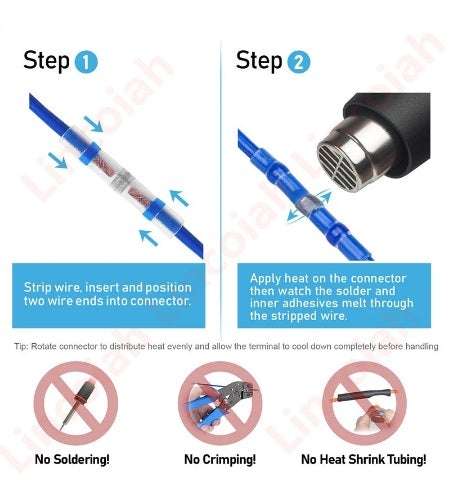

All-in-one step solder and seal process. No need for crimp tools and soldering machine. Timer and mess saver

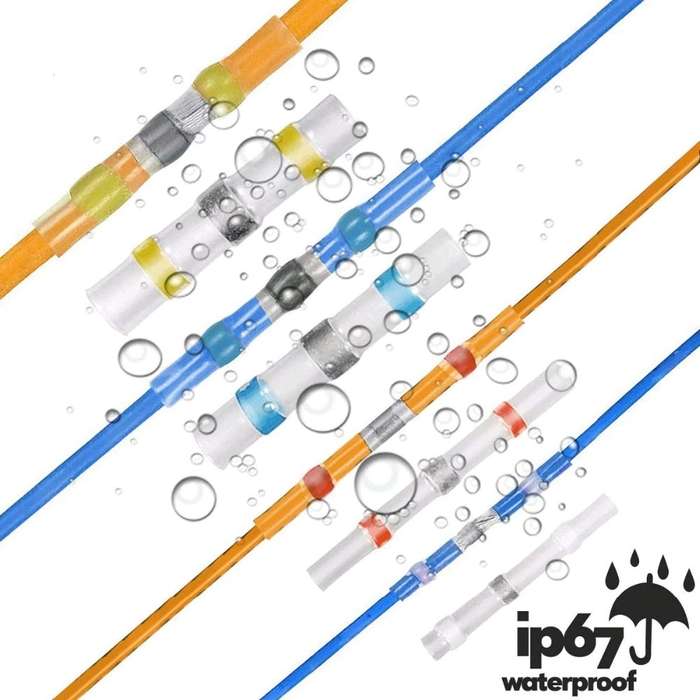

WATERPROOF AND INSULATION:
Dual-walled design - Outside Polyolefin tubing provides insulation and improves pullout strength; Hot Melt Adhesive & Solder inside ensures wires tightly connected and avoids wires slipping out of the terminal

STAY ORGANIZED:

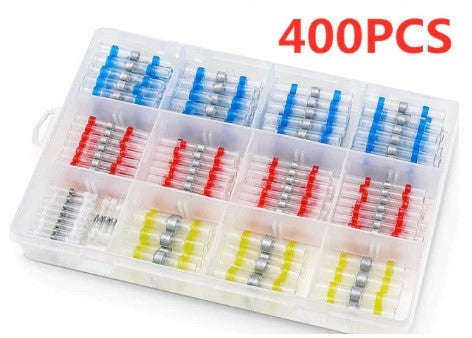

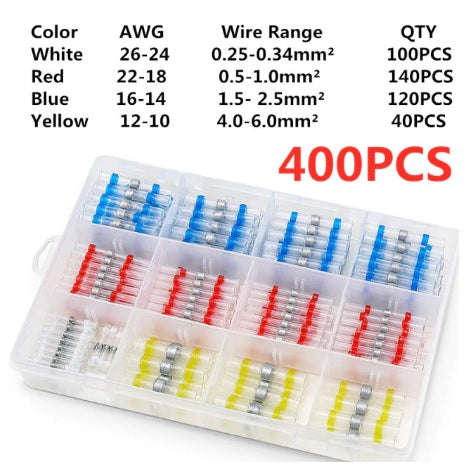

Our connectors come within a storage box, easy to store and carry. Color-coded tubing makes it easy to identify the right size of the connector for every application. The connector assortment includes white (AWG 26 24), red (AWG 22 18), blue (AWG 16 14) and yellow (AWG 12 10) solder seal connectors that can be used on wire AWG from 26 to 10.

WIDE APPLICATIONS: Shrinking ratio: 2:1. Ideal used for Automotive, Boat, Marine and other Outdoor Applications

LINCOIAH BRAND QUALITY COMMITMENT
We stand behind the quality of our products. If for any reason you are not satisfied with your purchase, please contact us.

Operating temperature range:
minimum melting temperature of solder: 138 ° C
minimum shrinkage temperature: 80 ° C
working temperature: - 55 - 125
shrinkage temperature: ＞ 160

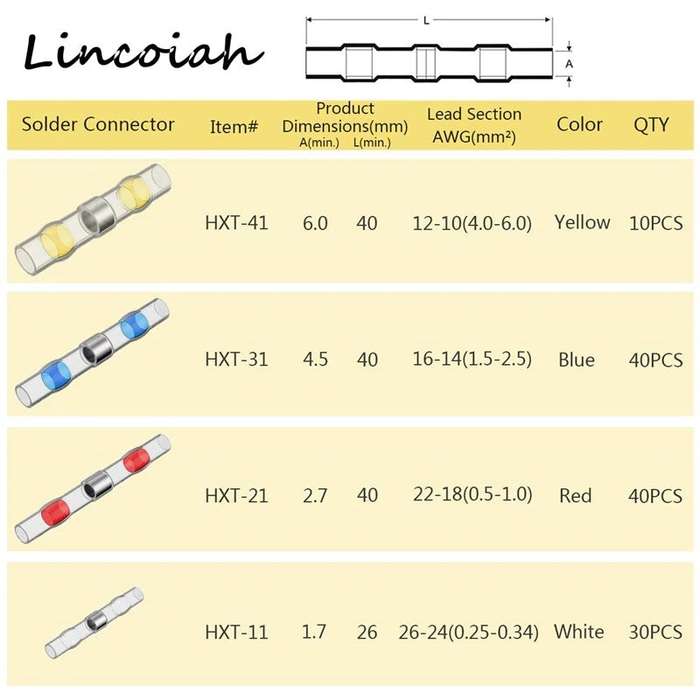

Specifications:
color: yellow, blue, red, white.

Features:
shrinkage is 2:1

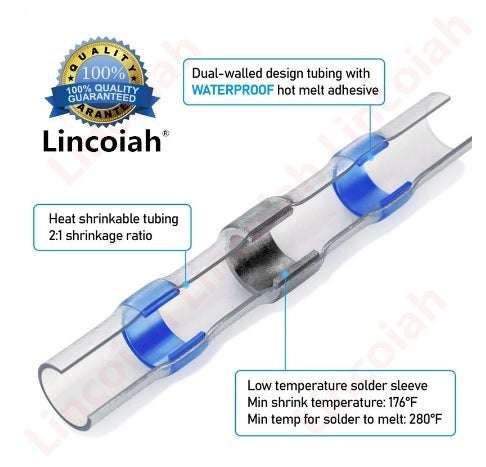

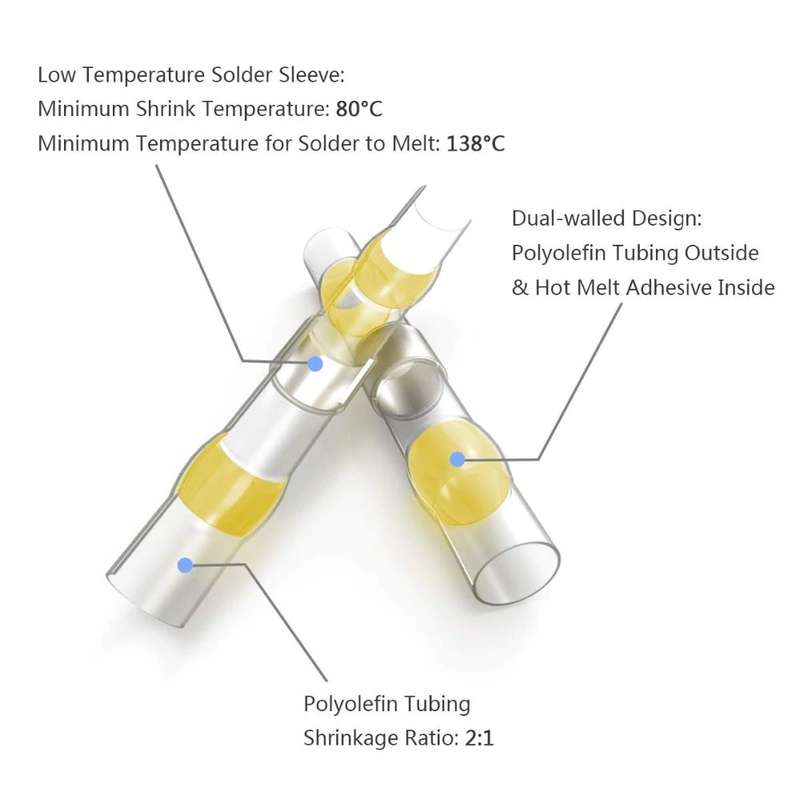

double wall design pipe: the outer part is polyolefin pipe and the inner part is hot melt adhesive
color coding connector tube
heat activated waterproof adhesive
low temperature welding sleeve
the internal solder and hot melt adhesive can be completely waterproof.
waterproof solder connector can prevent wire corrosion.
meet RoHS, ISO 9001:2008, SGS and CE standards
