Item specifics
Model Number:FA400
Brand Name:Hongyu
is_customized:Yes
Type:Wind Power Generator
Rated watt:400W
Max Watt:600W
Number of Blades:3PCS
Start Wind Speed:2.5M/S
Rated Wind Speed:12M/S
Rated Voltage:12V
Certificate:CE/ROHS/ISO9001
400W/12V Wind Turbine Max 600W Wind Generator Kits + Max 600W 12V/24V Auto Distinguish Wind Controller, CE/ISO9001 Certificate
Technical Parameter Wind Turbine
Rated Power
400W
Rated AC Voltage
AC12V
Rated Rotate Speed
900r/min
Max Power
600W
Number of blade
3 PCS
Start-up wind speed
2.5m/s
Cut-in wind speed
3.5m/s
Cut-out wind speed
15m/s
Rated wind speed
12m/s
Engine
Three-phase permanent magnet generator
Rotor diameter
1200mm
Blade material
Carbon fiber with nylon
Pole diameter
48mm
Output line anti-winding device
Overall three-phase commutator
Life span
15years
Equipment surface protection
Aluminum oxide+plastic coating
Working temperature
-40°C to 70°C
Weight
9kg
Package dimension
672mm*350mm*210mm

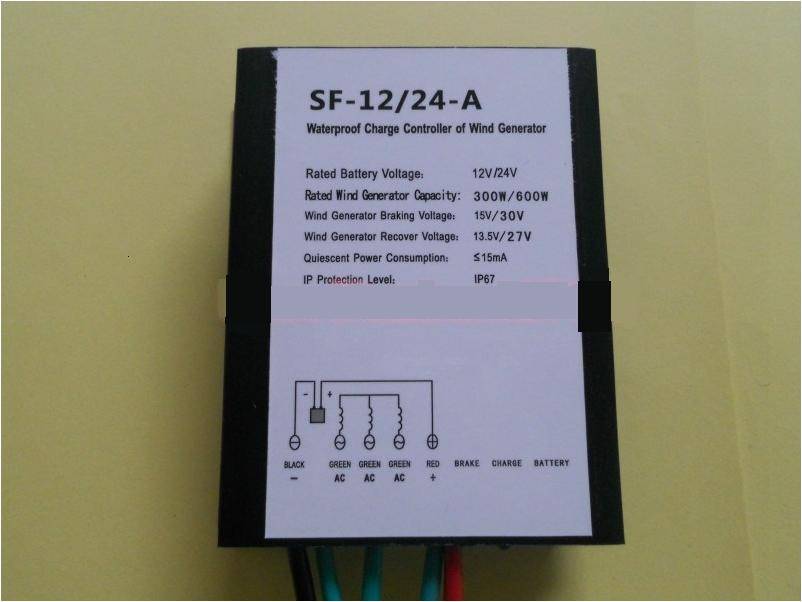

High Quality Max 600W/24V Waterproof Wind Generator Regulator, 3 Years Warranty!
Technical Parameter:
Rated Battery Voltage
12/24V
Max Wind Turbine Power
600W
Brake Voltage
30V
Recovery Voltage
27V
Current
25A
Wokring Temperaure
-35 to 75 Degree
Dimension
97MM*76MM*21MM
Protection Grade
IP67

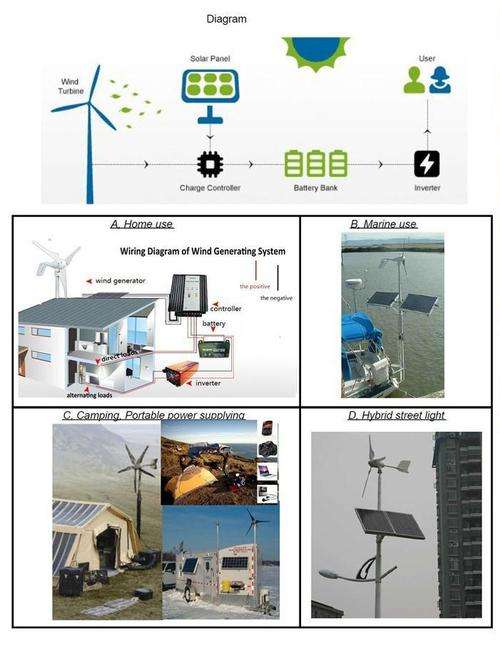

Application
