400W/12V Wind Turbine Max 600W Wind Generator + multi-purpose wind controller

**Local Stock** We will dispatch your goods the same working day. Any orders placed after the 16:30, or at weekends/public holidays, will be dispatched the following working day.

Item specifics

Type:Wind Power Generator
Rated watt:400W
Max Watt:600W
Number of Blades:3PCS
Start Wind Speed:2.5M/S
Rated Wind Speed:12M/S
Rated Voltage:12V/24
Certificate: CE/ROHS/ISO9001

 400W/12V Wind Turbine Max 600W Wind Generator + Multi-purpose wind controller

Technical Parameter Wind Turbine

Rated Power
400W

Rated AC Voltage
AC12V

Rated Rotate Speed
900r/min

Max Power
600W

Number of blade
3 PCS

Start-up wind speed
2.5m/s

Cut-in wind speed
3.5m/s

Cut-out wind speed
15m/s

Rated wind speed
12m/s

Engine
Three-phase permanent magnet generator

Rotor diameter
1200mm

Blade material
Carbon fiber with nylon

Pole diameter
48mm

Output line anti-winding device
Overall three-phase commutator

Life span
15years

Equipment surface protection
Aluminum oxide+plastic coating

Working temperature
-40°C to 70°C

Weight
9kg

Package dimension
672mm*350mm*210mm

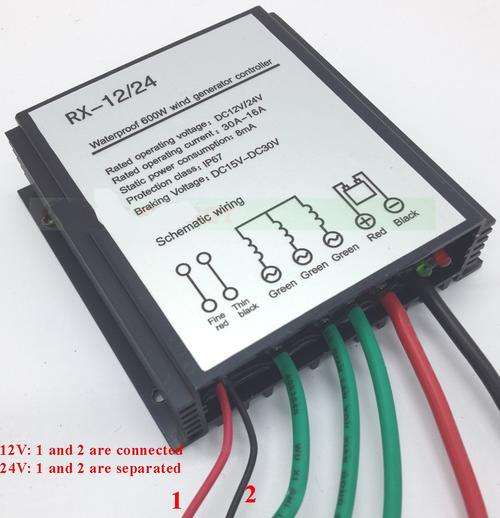

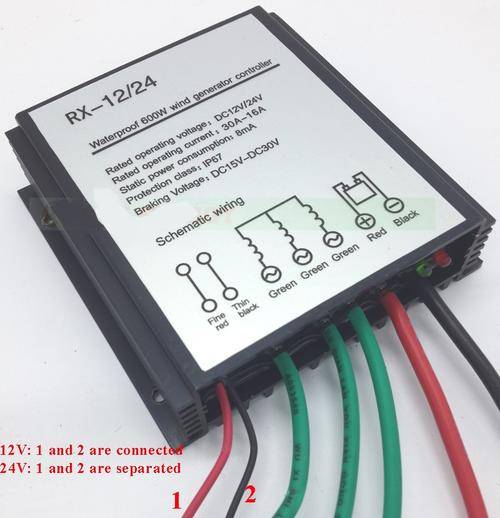

Waterproof Wind charge controller for 100-600W wind generator, 12V/24V wind controller max current 30A

Model No: RX-600CW
Max Input AC Voltage: AC 30V
Output DC Voltage: DC12V/24V
Over-Discharging Voltage Protection: DC14.5V±0.3V / 29V±0.3V
Max. Charging Current: 30A(12V); 16A(24V)
Limit Voltage Of Wind Turbine Speed: DC14.5V±0.3V; 29V±0.3V
Protection Class: IP67
Static Power Consumption: 0.012A
Rated Power: 600W
Rated Wind Speed: 12
Working Temp: -35°C—65°C

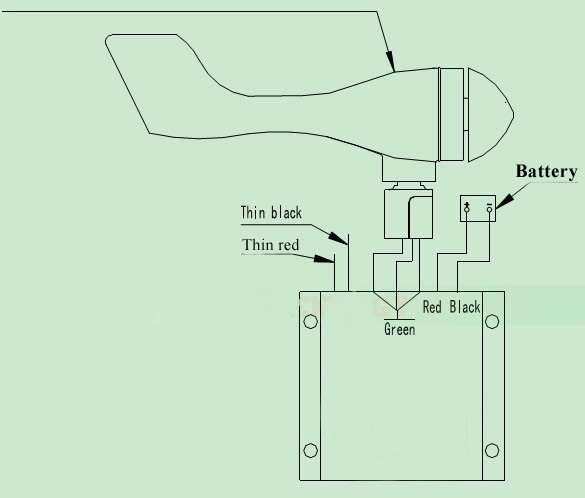

Wiring Of Input: Three wire system
DC Voltage Control Mode: 12V/24V
