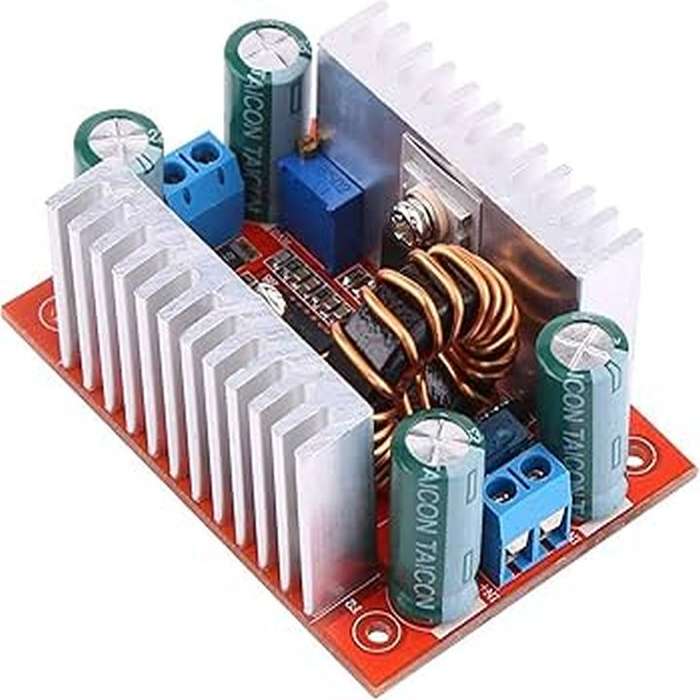

400W Boost Constant Current Module

A 400W Boost Constant Current Module is a DC-to-DC step-up converter designed to increase a lower input voltage to a higher, adjustable output voltage while also maintaining a constant output current. This type of non-isolated module is useful for applications where a stable current is essential, such as driving high-power LEDs or charging batteries.

Feature:

• Boost (Step-Up) Conversion: This is its core function. It takes a lower DC input voltage and "steps it up" to a higher, adjustable DC output voltage. This is essential for powering devices that require more voltage than the available source, such as a 12V car battery.
• Constant Current (CC) and Constant Voltage (CV) Modes: The module can operate in two modes. It acts as a constant voltage source when the load's current draw is below a certain threshold. However, if the load attempts to draw more current than a user-defined limit, the module switches to constant current mode, automatically reducing the output voltage to maintain the set current level. This is crucial for applications like battery charging and driving LEDs.

Specifications

• Module Type: Non-isolated step-up module (BOOST)
• Input Voltage: DC 8.5V to 50V
• Output Voltage: DC 10V to 60V (Continuously adjustable)
• Maximum Input Current: 15A (It's recommended to enhance heat dissipation if the input current exceeds 8A)
• Maximum Output Current: 12A (Dependent on input/output voltage difference; enhance heat dissipation if current exceeds 7A)
• Constant Current Range: 0.2A to 12A (Continuously adjustable)
• Maximum Output Power: 400W
• Quiescent Current: Approximately 10mA (increases slightly with higher output voltage)
• Operating Frequency: 150KHz
• Conversion Efficiency: Up to 96% (efficiency varies based on voltage and current difference)
• Dimensions: 67 x 48 x 28  in mm

What is in the box?

• 1 x 400W Boost Constant Current Module
