400W DC 12V-48V 12000rpm Air Cooled Spindle Motor Engraving Milling
Sold

400W DC 12V-48V 12000rpm Air Cooled Spindle Motor Engraving Milling

10 were available / new
R862.22
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 1 business day. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
1051176
Bob Shop ID
242380909
Description:

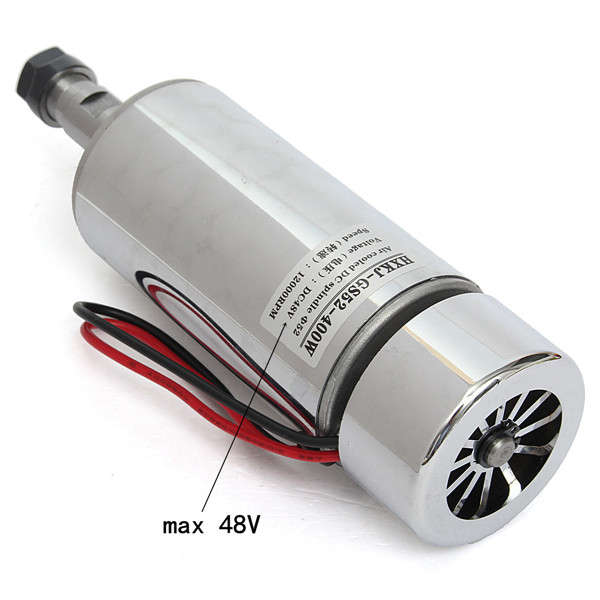

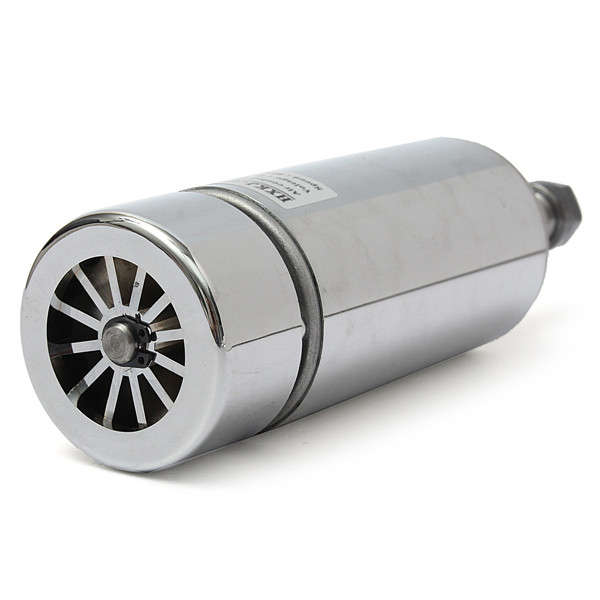

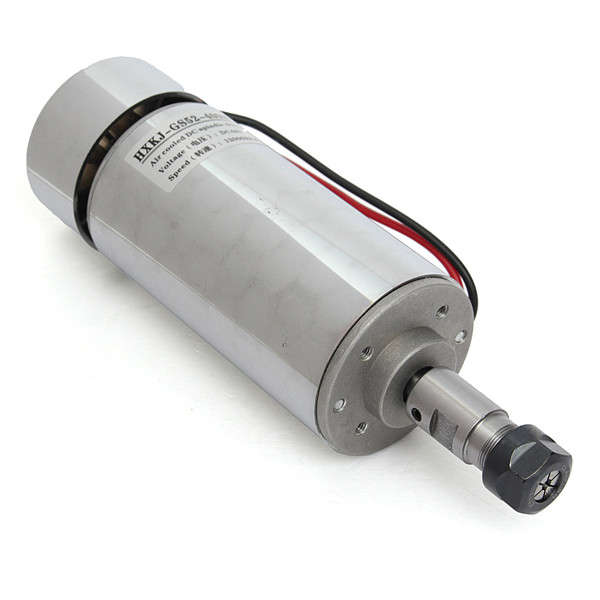

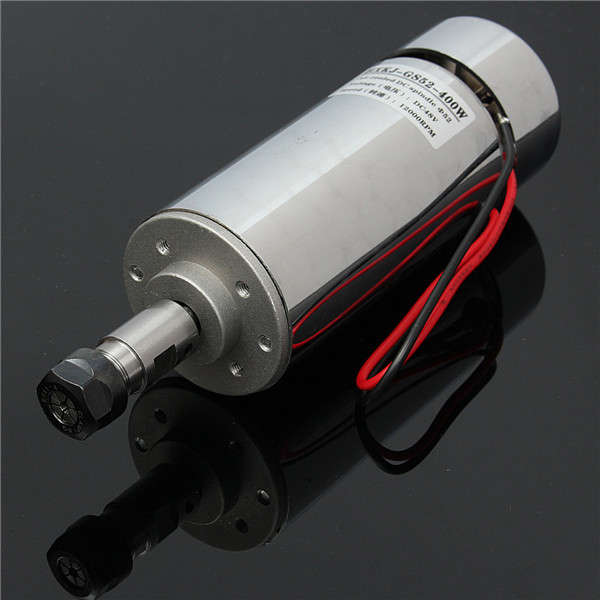

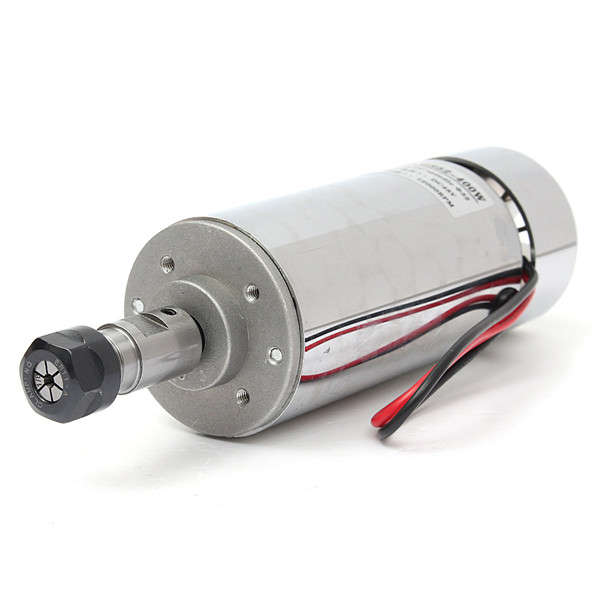

400W DC 12V-48V 12000rpm Air Cooled Spindle Motor Engraving Milling

Specification:

Operating voltage
12-48VDC
Power400W
Speed3000-12000r / min (12V-3000r / min, 24V-6000r / min, 36V-9000r / min, 48V-12000r / min)
Torque500mN.m
Insulation resistance> 2 megohms
Dielectric strength400V

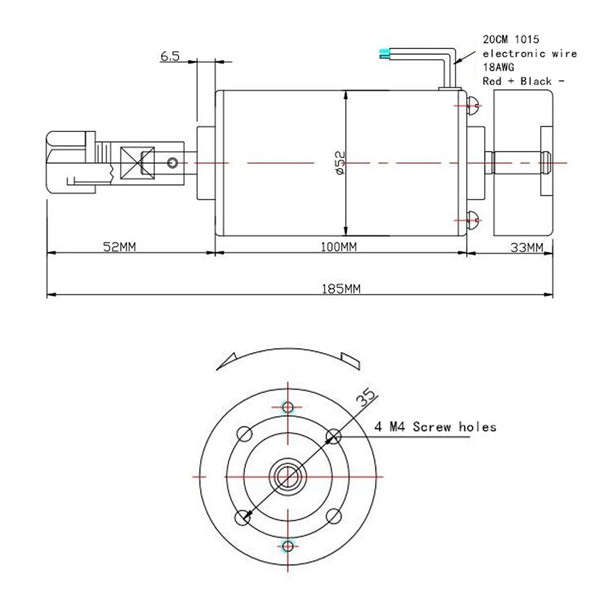

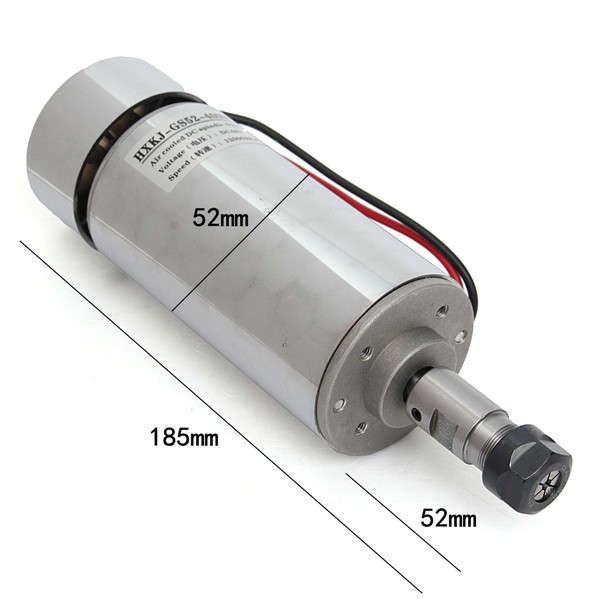

Diameter52mm
Chuck portion lengthArbor parts 35mm, (including the nut and sandwich 43mm)
Part chuck diameter16mm
Motor Overall Length185mm (comprising gripping parts and motor)
Spindle Weight0.9KG
Spindle runout about 0.01-0.03














Features:
It can be used to engrave metal or non-metal and other materials.
The spindle with air cooling, can work long hours.
The motor is a lot of DIY users to use, high speed, low noise, suitable for carving PCB, acrylic, drilling, etc.

Package Included:
1 x Spindle Motor

More Details:


400W DC 12V-48V 12000rpm Air Cooled Spindle Motor Engraving Milling

400W DC 12V-48V 12000rpm Air Cooled Spindle Motor Engraving Milling

400W DC 12V-48V 12000rpm Air Cooled Spindle Motor Engraving Milling

400W DC 12V-48V 12000rpm Air Cooled Spindle Motor Engraving Milling

400W DC 12V-48V 12000rpm Air Cooled Spindle Motor Engraving Milling
