40A / 100A 12864 LCD Display Digital Double Pulse Encoder Spot Welder Welding Mach... (CURRENT: 40A)

SELECTED OPTION:
CURRENT: 40A

Feature:
- Can be set to save the last operation, the module double pulse trigger, turn off any set of trigger time, you can change double pulse to single pulse trigger. - Multi-group data 12864 visual display, intuitive operation, convenient, single encoder parameter adjustment can make the operation simple and fast. - With grid voltage compensation, the output of compensation can be automatically adjusted according to the change of power supply, and the electric voltage of about 1 second can be displayed when triggered, so that the effective heat of welding is consistent with the welding parameters, and the welding spot is uniform. - With 0-9999 welding counting function, with 5 groups of sample storage parameters, can be stored even the electricity power is off, the number of wleding could be seen just by a glance. - Time input 0-99 cycle(1 cycle is 20ms, for example, the adjustment value is 50, which is the welding time 1 second.), the stop time between 2 weldings is 0-99 cycles(1 cycle is 20ms, such as interval value 50, It is the interval of 1 second.) adjustable. Welding strength 30%-99% is adjustable. - The module can isolate the strong and weak electricity by optical coupling, and design a reliable circuit for zero-crossing detection and voltage detection to ensure the accurate phase shift of silicon control rectifier (SCR), which can be compatible with 40A-100A bidirectional silicon control rectifier(SCR). Scope of Use:
1. DIY or simple battery welder development welding. 2. Welding of a single battery or battery pack. Specification:
Current: 40A/100A(Optional) Display: 12864 LCD Display Main Board Size: 85 * 45mm Package Included:

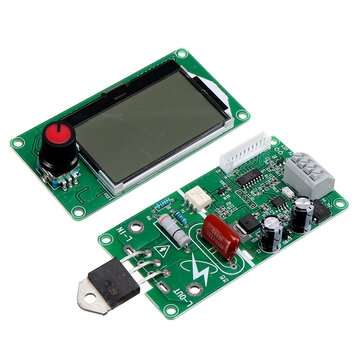

1 x Main Board 1 x Display Board 1 x Cable
