Product details
40A DC Motor Speed Controller PWM

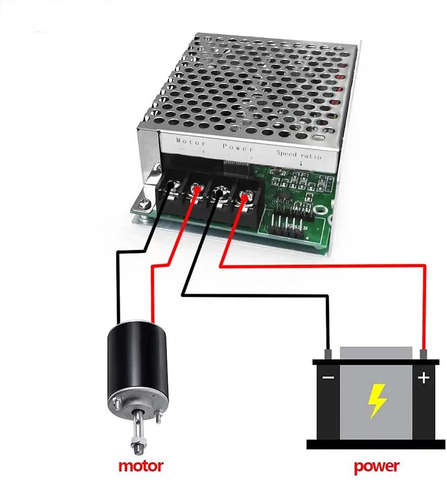

The PWM DC motor speed controller 40A is very easy to use, simply connect your power wires to the power terminals marker power + and power -. Then connect the motor to the terminals marked motor + and motor - and you are done.

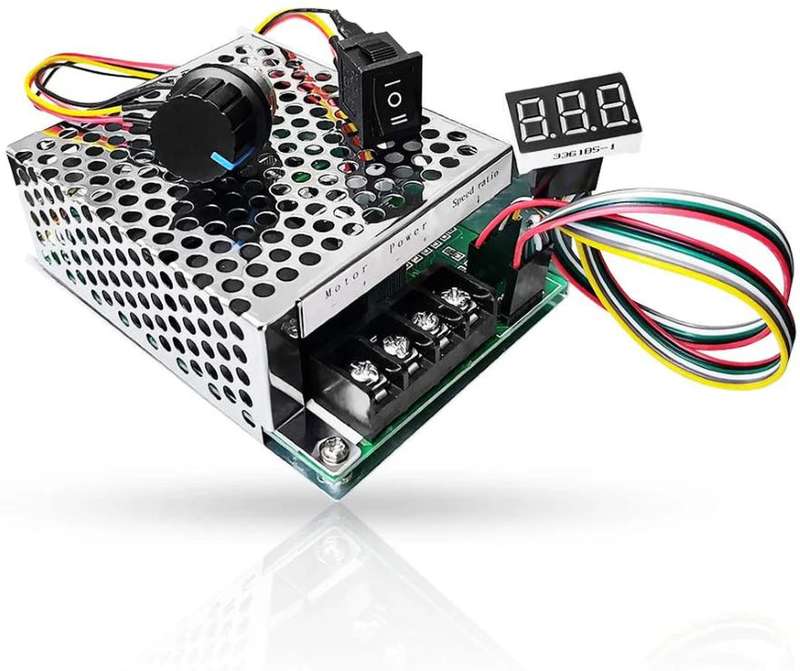

PWM DC Motor Speed Controller, DC 10-55V/40A, LED Display DC Motor Speed Controller with Adjustable Potentiometer and Forward-Brake-Reverse Switch
This module uses PWM modulation instead of simply changing the voltage, which is much more efficient and will not accidentally burn your motors.
With the PWM modulation, you get less heat dissipation over your switching device than over a linear voltage adjustment regulation. With less heat, it will run cooler on high currents while giving enough torque to your motor.
The unit has FF/Rev switch to run the motor both ways and display the % of the PWM duty.
Specifications
Product Size: 128 x 98 x 19mm
Forward & Reverse: Support
Supply/load Voltage: DC 10-55V
Maximum Current: 60A
Continuous Current: 40A
PWM Frequency: 15KHZ
Speed Modulation Range: 0 ~ 100%
Speed Control Type: Current modulation by a potentiometer (with switch)
Support Forward Reverse Rotation Control: Yes, by Forward-Brake-Reverse Switch
Note:
The digital display is the percentage of full motor speed 0-100 and not the actual motor speed.
The input voltage must be divided into positive and negative
The input voltage should be equal to the rated voltage of the motor within DC 10-55V
