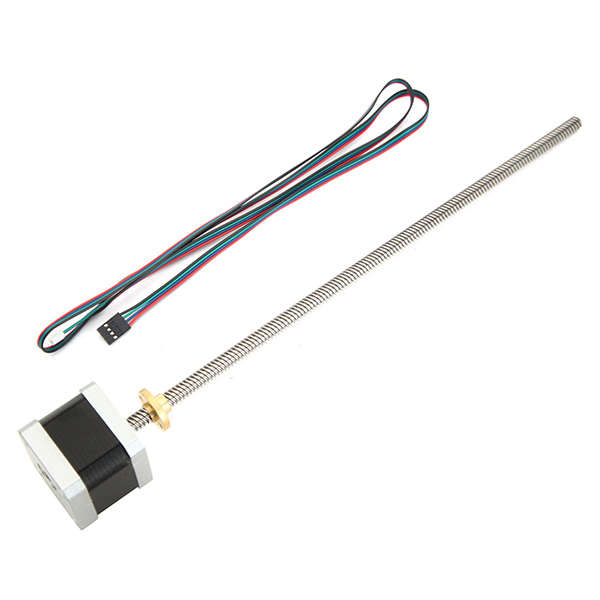

Package weight: 0.39 kg42 Lead Screw Linear Stepper Motor 1.5A 40mm 300mm Rod For 3D Printer
Feature:Drive mode: Constant current chopper drive
Excitation mode: 2-phase excitation (2-phase four-run), can forward and reverse rotation
Steering: AB-BC-CD-DA sequentially energized
Rated current (single-phase): 1.5A DC
Power supply voltage: 12-36V
Step Angle: 1.8 °
Insulation class: B class insulation
Parameter: (Test conditions: test parameters measured in normal atmospheric conditions)Ambient temperature: -20 ~ 50 ¬トテ
Relative humidity: 90% MAX
Mounting position: Shaft horizontal or vertical installation.
Winding DC resistance (25 ¬トテ): 1.6Ω ± 10%
Winding inductance: 3.8mH ± 20%
Location torque: 18mN.m REF.
Holding torque (two interlinked rated current): ≥420mN.m (I = 1.5A)
The maximum load starting frequency: ≥1300pps
The maximum no-load operating frequency: ≥8000pps
Temperature: <80K
Step angle accuracy: 1.8 ° ± 5%
Moment of inertia: 57g.cm2
Motor weight: 0.39Kg / PC REF.
Insulation resistance: Betewwn motor stator core and terminal cold insulation resistance should be greater than 100 m Ω (used with DC500V measurement).
Dielectric strength: Between the stator core and the terminal should be able to withstand AC600V / 1S without breakdown, leakage current is less than 1mA.
Package includes:1 x 42 Lead Screw Linear Stepper Motor
