42 Stepper Motor Nema17 Shaft For 5mm Pulley RepRap CNC Prusa 3D Printer

New 30 were available
Indicative market price: R599.00
R341.90
43% off
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
International
Product code
1081345
Bob Shop ID
329297890
Package weight: 0.36 kg

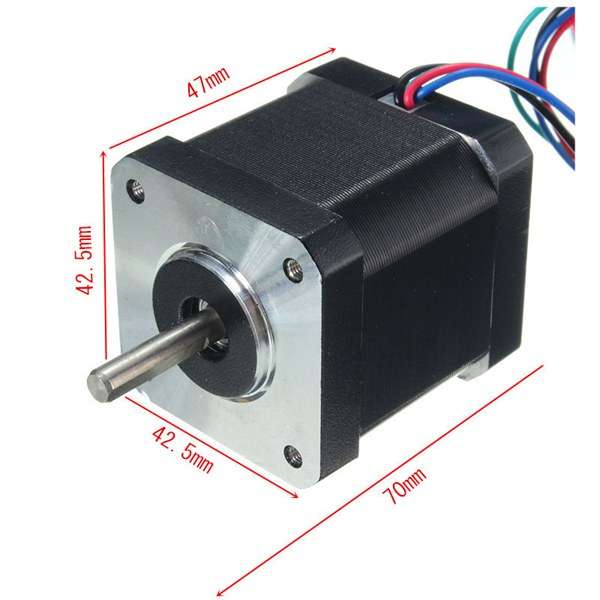

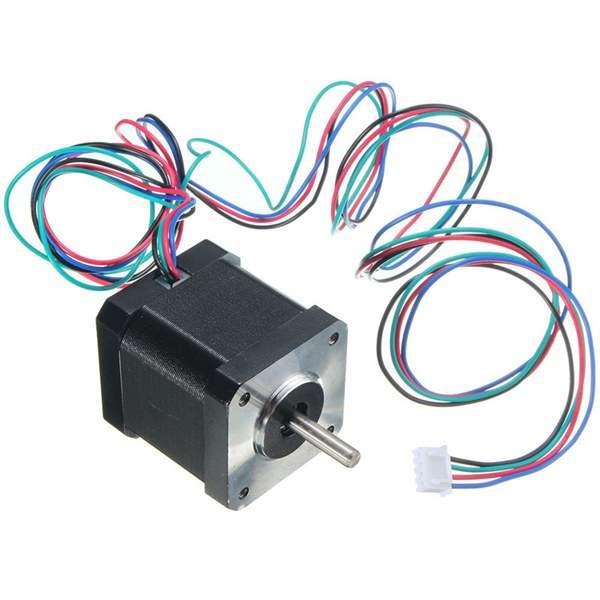

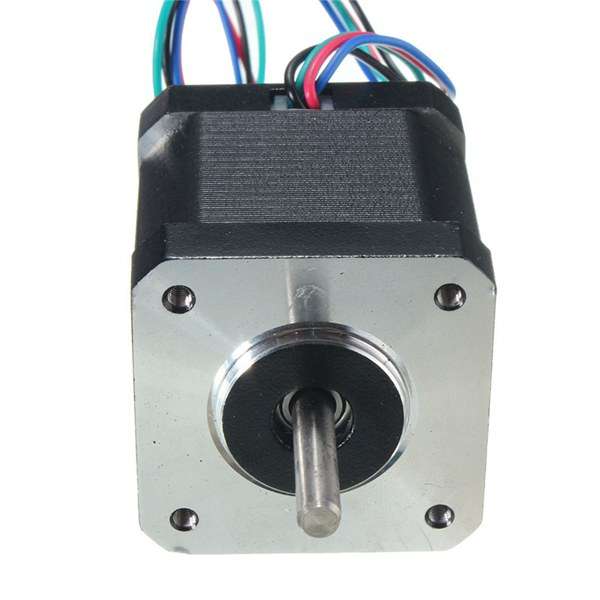

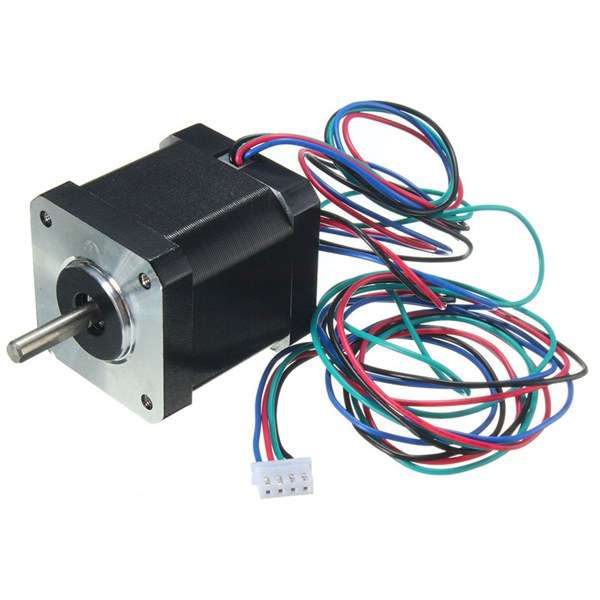

42 Stepper Motor Nema17 Shaft For 5mm Pulley RepRap CNC Prusa 3D Printer
Features:

Shaft match with 5mm pulleys
Comes with 70cm 4-Lead Wire
HYBRID STEPPING MOTOR 42SHD0217-24B
General specification:
Step angel: 1.8°
Number of phase: 2
Insulation resistance: 100MΩ min.(500V DC)
Insulation class: Class B
Rotor inertia: 57g.cm2
Mass: 0.24kg
Electrical specification:
Rated voltage: 3.75V
Rated current: 1.5A
Resistence per phase: 2.5Ω ±10%
Inductance per phase: 50mH ±20%
Holding torque: 500mN.m
Detent torque: 15mN.m
Package includes:
1 x Stepper motor
