| Factory model | 43A33EXVT |
| Factory | Qingdao |

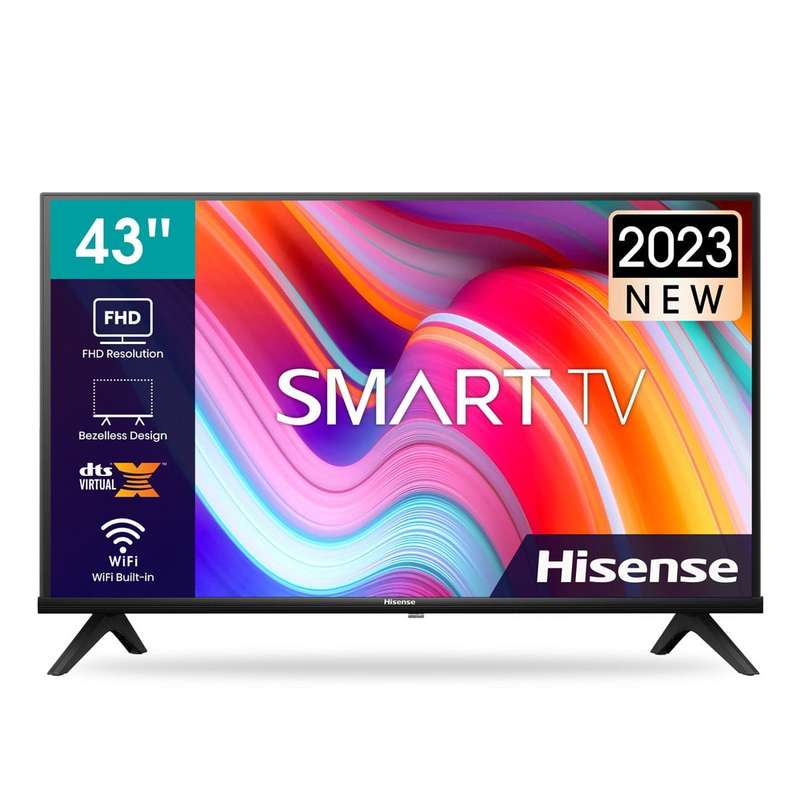

| Description | 108cm (43? ) Direct LED Television |
| Document | |
| Specifications form version | HA220120 |
| Circulation | Restricted, internal use only |
| Status | Confirmed |
| Revision number | 1 |
| Date | 2022/01/20 |
| Issued by | Al |
| |
| Image???display | |
| Panel???manufacturer | Hisense |
| Panel???model | LCM: JHD425H1F51-T0L1B1, Open Cell :T430HVN01.2 |
| Active???display area, horizontal dimension | 940,896 |
| Active???display area, vertical dimension | 529,254 |
| Screen???size (rounded to nearest integer) | 108 |
| Screen???size (rounded to nearest integer) | 43 |
| Display???technology | LCD/ LED lit |
| Backlight???source | Direct LED |
| Resolution???(Horiz x Vert) | 1920*1080 |
| Screen???curvature radius | ? |
| Colour???depth | 8bit |
| Image???refresh frequency | 60 |
| Smooth???motion rate | 60 |
| 3D image | ? |
| Typical???brightness of white | 250 |
| Native???contrast ratio | 3000 : 1 |
| Viewing???Angle (Horiz / Vert) | 178/ 178 |
| Quantum???dot | No |
| Wide???colour gamut | No |
| KSF???phosphor | No |
| UHD???Premium | No |
| Response???Time | 8 |
| Connectivity | |
| RF- Radio frequency input | 1 |
| AV input | 1 |
| AV output | 0 |
| USB interface type 3.0 (Qty /???List?.) | 0 |
| USB interface type 2.0 (Qty /???List ?.) | 2/ USB1, USB2 |
| Optical digital audio output???(SPDIF) | 1 |
| Earphone jack | 1 |
| |
| HDMI???ports | |
| HDMI inputs | 2 |
| HDMI type 8K@60Hz | No |
| HDMI type 4K@60Hz with HDCP???version 2.2 | No |
| HDMI 2.1 compliant input (4K@120Hz) | No |
| Enhanced Audio Return Channel???( eARC) | Yes |
| CEC- Consumer Electronics???Control via HDMI | Yes |
| Smart???TV | |
| Ethernet port (RJ45???connector) | 1 |
| Wi-Fi protocols IEEE 802.11 {b, g, n, ac, ax, ..} | b, g, n |
| Wi-Fi bands | 2,4 |
| DLNA compliance | Yes |
| Bluetooth / BT version | No / No |
| Anyview ( Screen Sharing) | Yes |
| BVOD services (Iview, SBS on Demand, 9Now, 7Plus, Tenplay) | Iview, SBS on Demand, 7 Plus, 9 Jumpin
(Tenplay available from Playsore) |
| Installed Applications???{List ??} | Netflix/Youtube/Prime???Video/Foxtel/Stan/ABC iview/Kayo/Tubi/SBS ON DEMAND/Facebook Watch/NBA |
| Freeview Plus ? HbbTV 2.0 | Yes |
| Web browser [Chrome | Opera |???Other] | Odin |
| |
| Tuner/???Broadcasting | |
| Digital broadcating (DVB-T /???DVB-T2) | Yes / Yes |
| Video decoder (MPEG2 / MPEG 4) | Yes / Yes |
| LCN- Logical channel number???and DTV Service name support | Yes |
| Teletext / Teletext signal interruption (TAB???compliant) | Yes / Yes |
| Subtitles | Yes |
| EPG- Electronic programming???guide, 7 days for all services | Yes |
| Audio description (vision???impairment aid) | Yes |
| Parental rating lock | Yes |
| Analog Tuner | Yes |
| Image???processing | |
| Backlight control | No |
| Light sensing | No |
| Dynamic backlight control | No |
| Frame rate control | No |
| Variable Refresh Rate (VRR) | No |
| FreeSync | No |
| Auto Low Latency Mode(ALLM) | No |
| Local dimming/ controllable???zones | No |
| Zoom function settings | Auto /16:9 / 4:3 /21:9/ Movie???Zoom/Dot to Dot |
| HDR ? High Dynamic Range for???luminance (DMP / Netflix / HDMI) | No / No / No |
| HDR system (HDR10 / HDR10+ /???Dolby Vision) | No / No / No |
| HLG (Hybrid Log-Gamma) for???HDR | No |
| HEVC (H.265) decoder | No |
| Motion enhancement and???compensation (MEMC) | No |
| Picture mode | Standard? Cinema Day, Cinema Night, Dynamic, Sports |
| Sound | |
| Audio power output per channel | 7 |
| Number of speakers (Tweeter /???Midrange / Woofer) | 2 /0 /0 |
| Automatic volume level (AVL) | Yes |
| Audio equalizer | Yes |
| Dolby Digital | Yes |
| Audio enhancement -Type {SRS,???BBE, SAP, DBX-TV?.} | DTS Virtual X |
| Lip-sync adjustment | Yes |
| Sound mode | Stand?Cinema??. |
| Features | |
| On/off timer | Yes |
| Power off if no signal | Yes |
| Sleep timer | Yes |
| Program lock | Yes |
| OSD transparency control | Yes |
| User interface | VIDAA U7 |
| Software version OSD???indication | Yes |
| Legal requirements:???Disclaimer / Acceptance of Terms | Yes / Yes |
| Favourite channels list | Yes |
| Electronic point of sales???(E-POS) | Yes |
| OTA- Over the air software???updates | Yes |
| Voice command | No? not available from RC, BUT???CAN SUPPORT VOICE REMOTE BY VIDAA APP, also but only support Alexa AVG? |
| Screen mirroring {Miracast,???Anyview Cast, ?} | Screen Sharing |
| Smartp... |
