Feature:

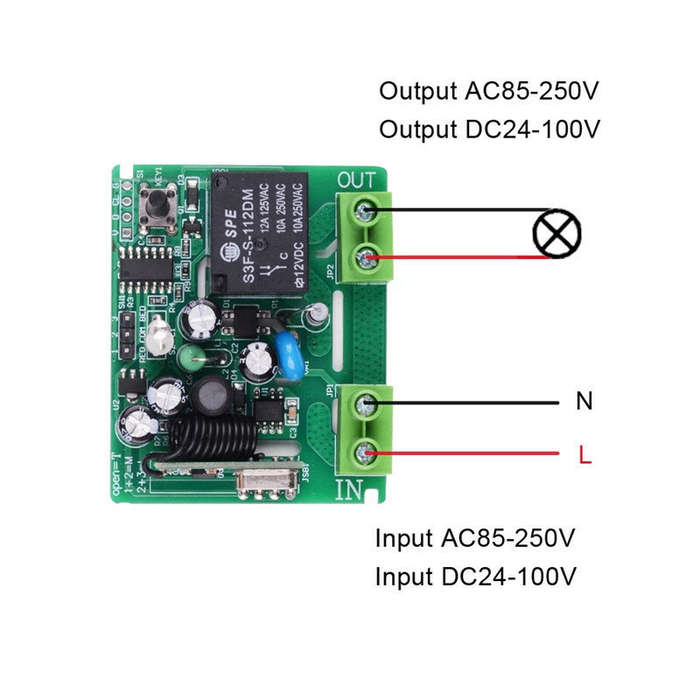

1. Work voltage: AC85-250V
2. Static conditions: less than 8mA
3. Work temperature: -40 degrees+80 degrees
4. Receive sensitivity: greater than -105dbm
5. Working frequency: 433MHz
6. Output voltage: input = output
7. Maximum load current: 10A
8. Size: 60.5 x 50 x 25.5mm
About working methods:

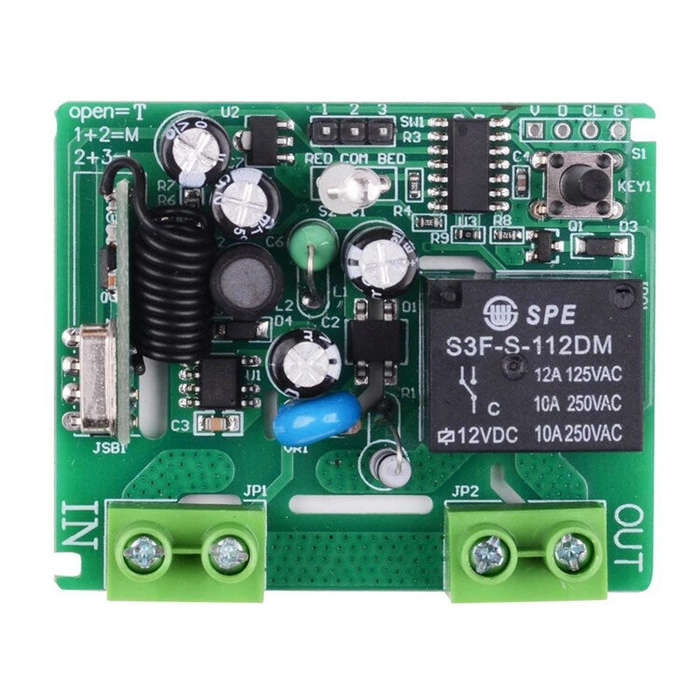

The jump line on the needle has changed the way of working
Switch: There are no two pins connecting the jumper.
Click: Press-> open; release-> off.
Self -locking: jumper connection pin 1 and 2.
Method: Press-> open; press the same button again-> Close ยท
Mutual lock: jumper connection pin 2 and 3.
Relay: Press-> open; press other buttons-> Close.
About learning
