Feature:

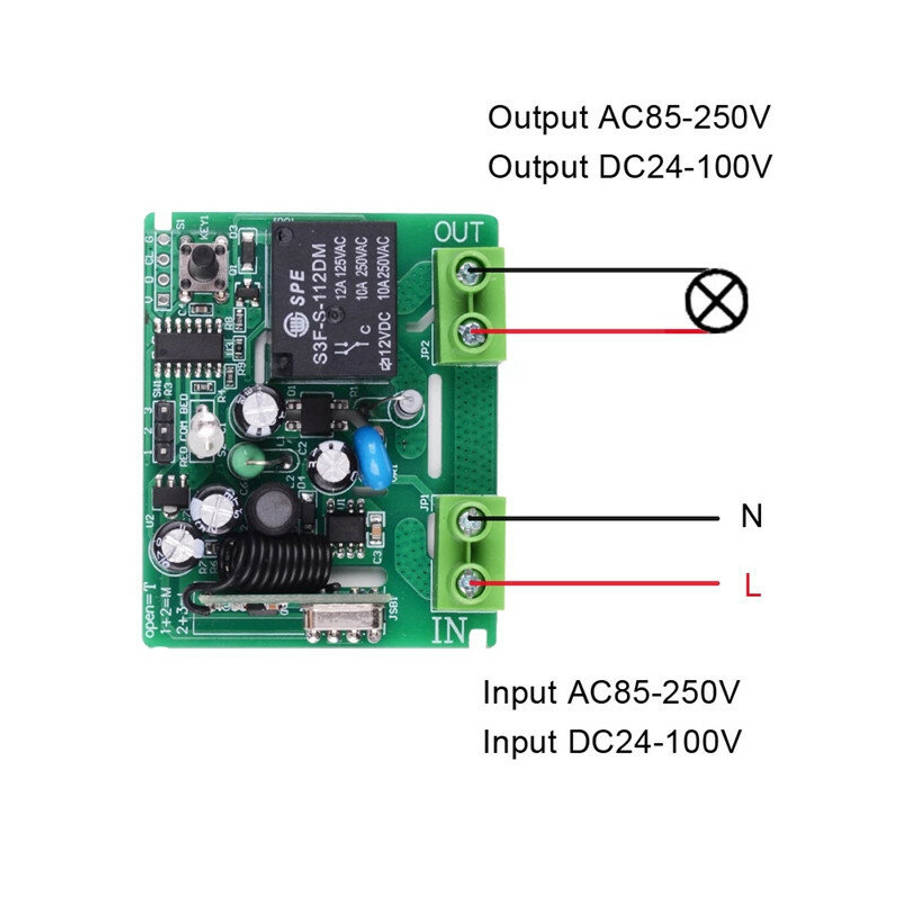

1. Work voltage: AC85-250V
2. Static conditions: less than 8mA
3. Work temperature: -40 degrees+80 degrees
4. Receive sensitivity: greater than -105dbm
5. Working frequency: 433MHz
6. Output voltage: input = output
7. Maximum load current: 10A
8. Size: 60.5 x 50 x 25.5mm
About working methods:

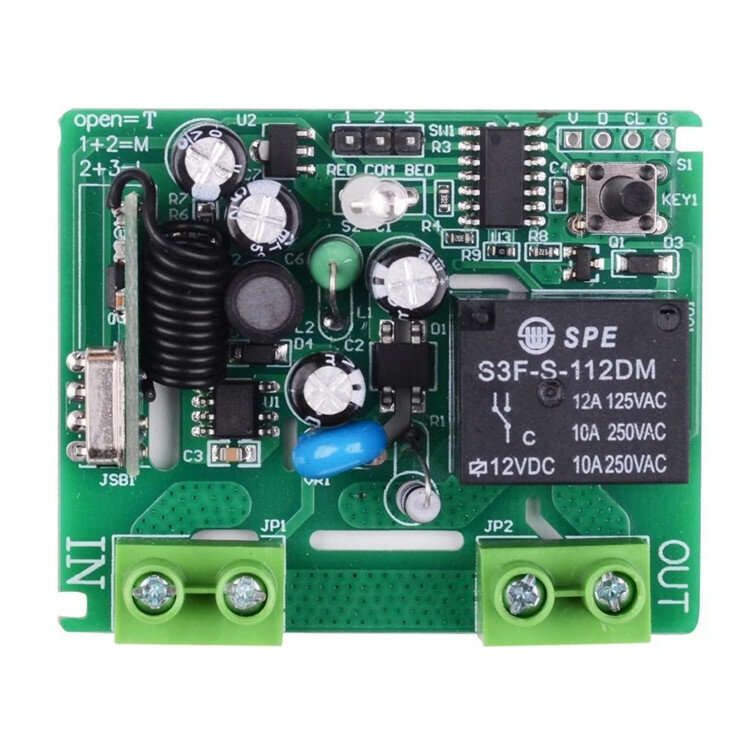

The jump line on the needle has changed the way of working
Switch: There are no two pins connecting the jumper.
Click: Press-> open; release-> off.
Self -locking: jumper connection pin 1 and 2.
Method: Press-> open; press the same button again-> Close ·
Mutual lock: jumper connection pin 2 and 3.
Relay: Press-> open; press other buttons-> Close.
About learning and clearing methods:
Learn: Press the learning button for 4-6 seconds, the indicator lights go out, release the finger, press any button on the remote control, the indicator lights flickered 5 times, indicating that the learning is successful.
Clear: Press the learning button for about 8 seconds, the indicator light from OFF to ON, and then press the remote control. The relay does not respond, indicating that the code is successful.
About remote:
1. button: 1 button
2. Work voltage: DC6V (use 2PCS CR2016, not includes)
3. Work frequency: 433MHz
4. Remote distance: 20-50M
5. Work current: 13 mAh time
6. Code: EV1527 code
7. Size: 5.7 x 3.2 x 1.1cm
Package includes:
1 x Remote
1 x Receiver
