433MHz 220V 2200W 4 Channel Wireless Remote Control Switch Relay Module Recei... (FREQUENCY: 433MHZ)

20 available / new

R437.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3505

93.44 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

643365958

SELECTED OPTION:
FREQUENCY: 433MHZ

Specification:
1. Working voltage: AC85C-250V 2. Operating frequency: 433MHZ 3. Quiescent current: 8.5mA 4. Load power: 2200W 5. Receiving sensitivity: -105dBM 6. Work: Jog / self-locking / interlock 7. Output signal: four AC220V output voltage signal 8. Coding: learning code 9. Modulation: ASK 10. Working temperature: -10 ﾣ C ~ +70 ﾣ C 11.Channel: 4CH 12. Wiring Method: Fixed wiring terminal 13.Rated load: 10A 250VAC / 10A 125VAC , 10A 30VDC / 10A 28VDC 14.Dimension: 6.5cm * 3.5cm * 1.7cm

Learning :
1. Jog mode: press the learning key once, the LED indicator light flashes once, etc. When the LED indicator light is on, press the remote control button that needs to code, the control panel LED indicator flashes 3 times successively. 2. Self-lock mode: press the learning button 2 times, LED indicator light flashing with 2 times, and so on LED lights lit and press the need for the code of the remote control button, the control panel LED indicator flashes 3 times success. 3. Interlock mode: press the learning key three times, LED indicator light flashes three times, and other LED lights and press the need for the code of the remote control button, the control panel LED indicator flashes 3 times a success code. Clear:

Press the learning key 4 times, LED indicator light flashes with 4 times, then the LED will automatically flash 4 times, the clear code is completed, clear all previously learned remote control key code.
Notice:

When using for the first time, make sure to clear the factory code and clear the remote control code.

Package included:

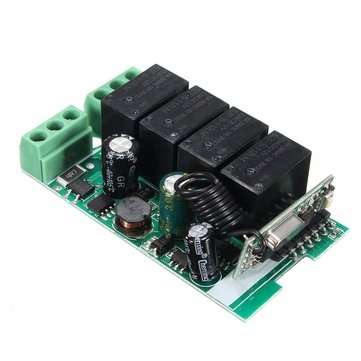

1 x 220V 4 Channel Wireless Relay Switch
More details:
