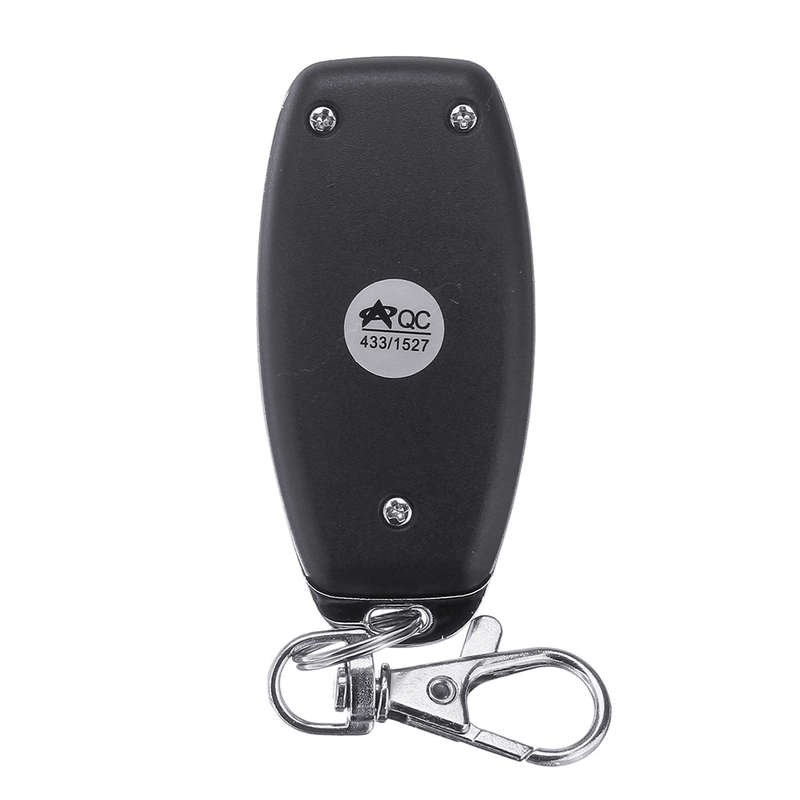

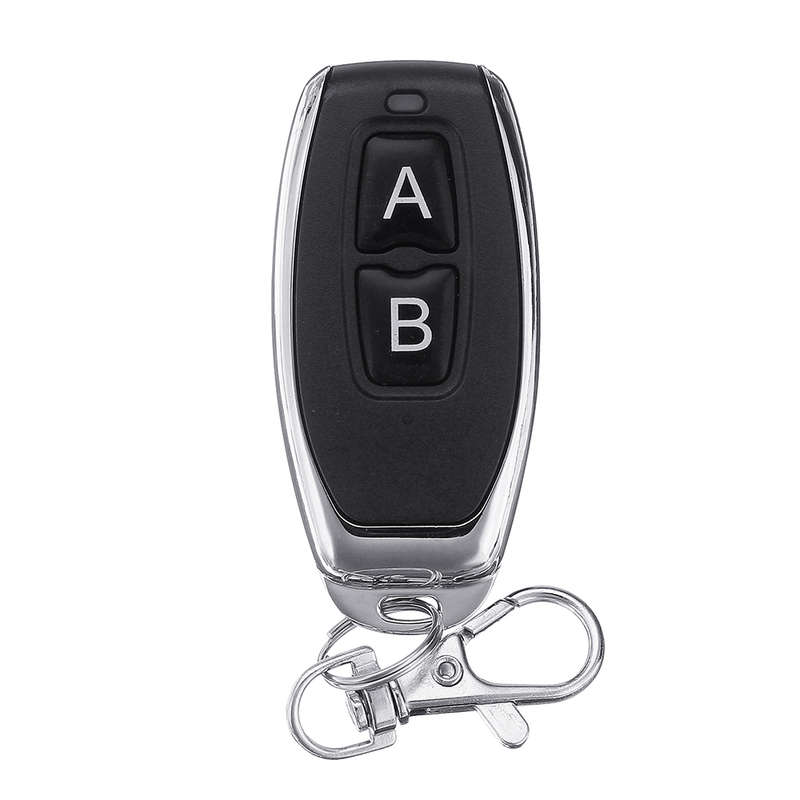

Specifications Of The Transmitter: Model Number: KT05-4 Operating Frequency: 433MHz/315MHz Power by 3V Coin Cell Button Battery (Battery included ) Material: PVC Button: 2 Buttons Size: 59mm x 28mm x 8mm Operating Voltage: 3V Operating Current: 12mA Transmitting Power: 10mw Modulation Mode: ASK (AM) Encoding Type: Learning Transfers Distance: 20-50 m

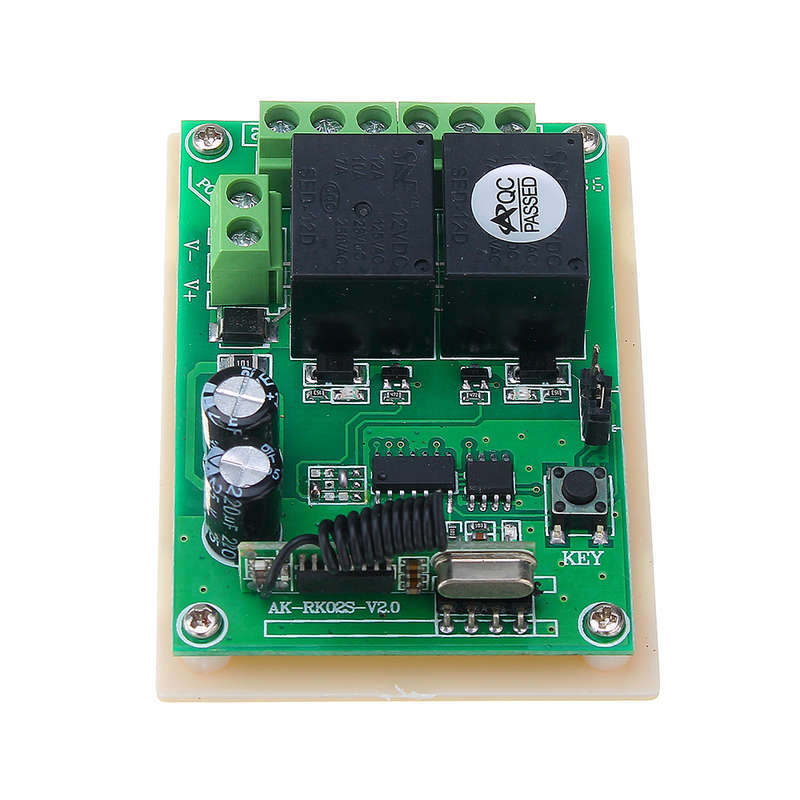

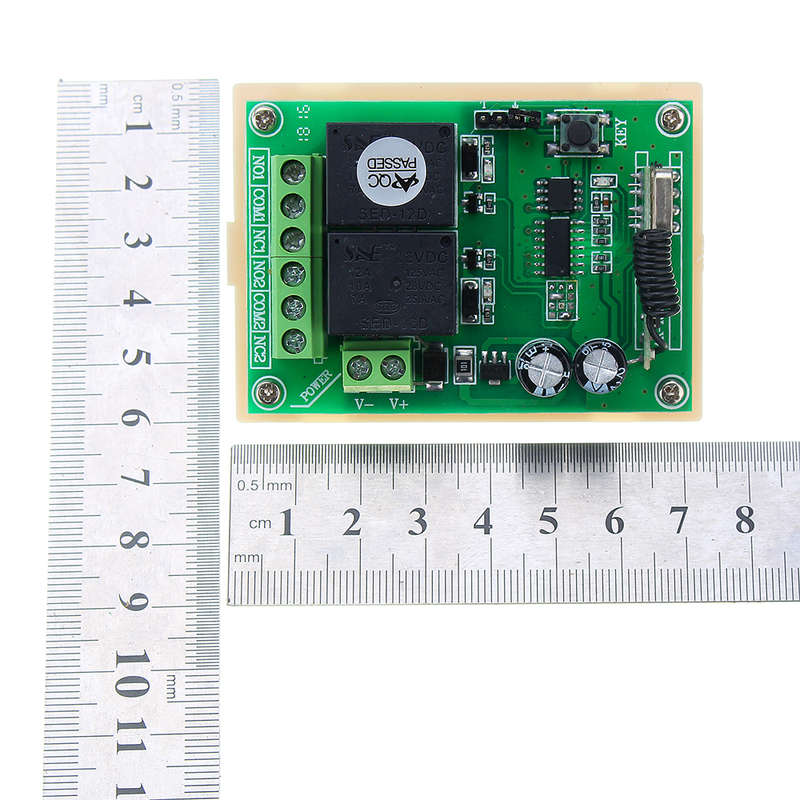

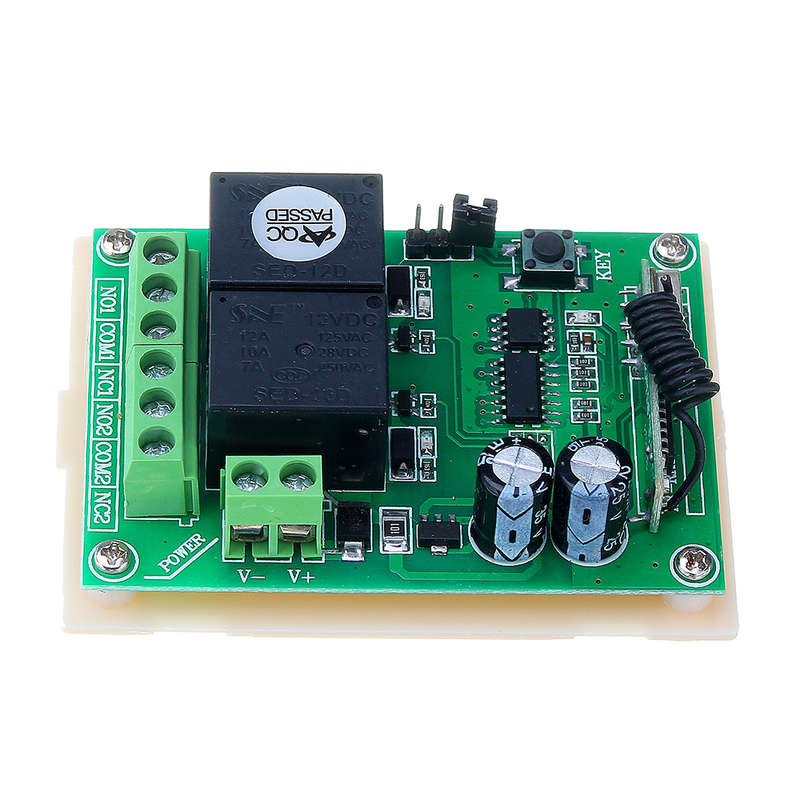

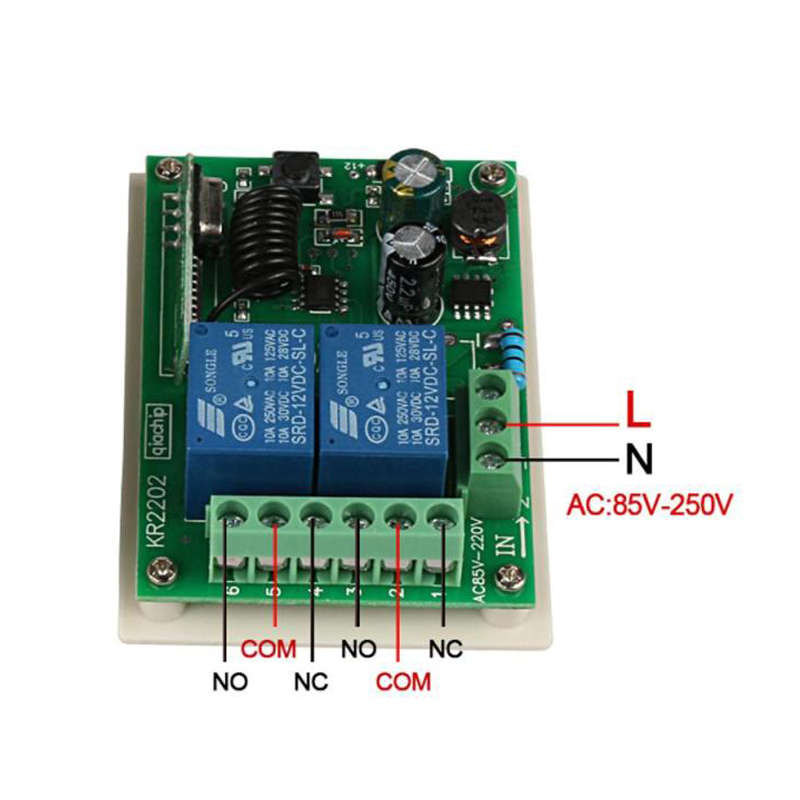

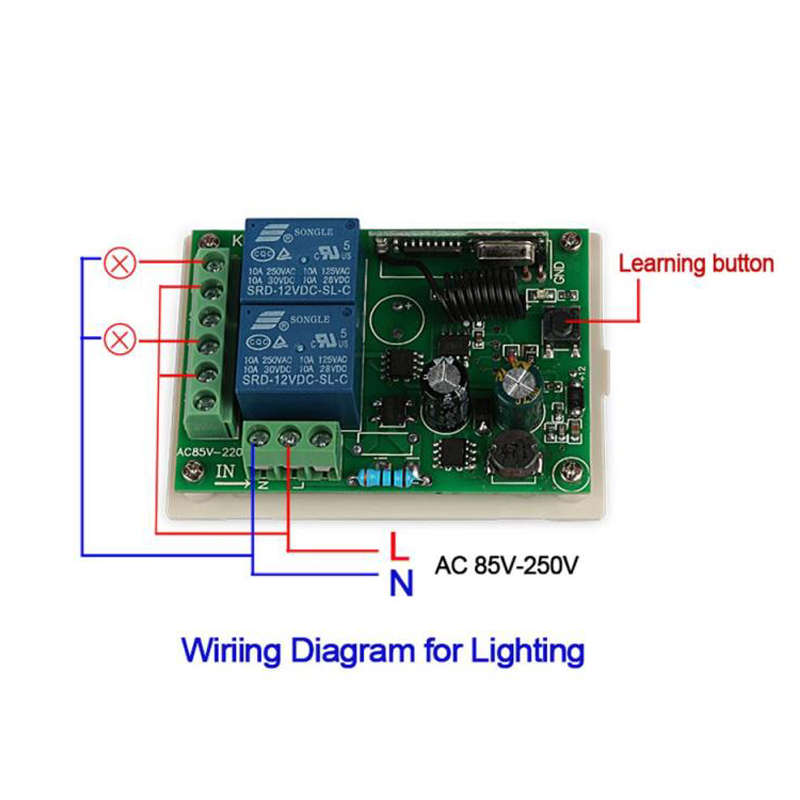

Specifications Of The Receiver: Model Number: KR2202-4 Product Type: Dual Channel Remote Control Switch Encoding Type: Intelligent Learning Code RF Working Mode: Superheterodyne Reception Modulation Mode: ASK Working Mode: Momentary, Toggle and Latching Mode. RF Frequency: 433MHz/315MHz Input Voltage: AC 85V~250V Standby Current:<8.5mA Receiving Sensitivity: >97dbm Remote Control Range: >50m (Free Space) Wired Connection Way: Fixed Wiring Pillar Output Terminal: NO, COM, NC On-off Output (Wire Port): NO(Normal Open), COM(Commonality End), NC(Normally Closed End). Color: Green (PCB Board), White (Outside Shell) Circuit Board Size: 7.3 * 5.2 * 2.5cm
Operation Introduction: About Working Mode: Momentary: Press the remote button, the relay connects, release the remote button, the relay disconnects. Toggle: Press once the remote button, the relay connects, press the remote button twice, the relay disconnects. Latching: Press the remote button A, the relay connects, press the remote button B, the relay disconnect.
Clearing the Code: Press the Learning Button on the receivers for 8 times, the codes will be cleaned. After cleaning the code, all the remote control cannot work anymore.
Learning the Code: (Momentary) Press the learning key on the receiver once time, it comes into momentary setting mode. Wait for a moment, the LED will be off, it comes into learning state. Push the remote button, LED indicator on the receiver board will flash then come off. After 3 seconds, the LED indicator will be on again, it means learning successfully.
Learning the Code: (Toggle) Press the learning key on the receiver twice, it comes into toggle setting mode. Wait for a moment, the LED will be off, it comes into learning state. Press the remote button, LED indicator on the receiver board will flash then come off. After 3 seconds, the LED indicator will be on again, it means learning successfully.
Learning the Code: ( Latching) Note: When you choose for latching mode, in order to learn more remote control, you need to learn two different button, the first time learning is for ON, the second time learning for OFF. For example: Button A = ON, Button B = OFF Press the learning key on the receiver triple time, it comes into latching mode. Wait for a moment, the LED indicator on the receiver board will flash then come off. Press the remote button A. LED flash for 5 times. Press the remote button B. LED flash for 5 times After 3 seconds, the LED indicator will be on again, learning successfully. A = ON, B = OFF. A = ON, B = OFF.
Package Includes: 1 x KR2202-4 2CH Receiver Module ( include Shell ) 5 xKT05-4 EV1527 Learning Code Remote Control (Include Battery)
