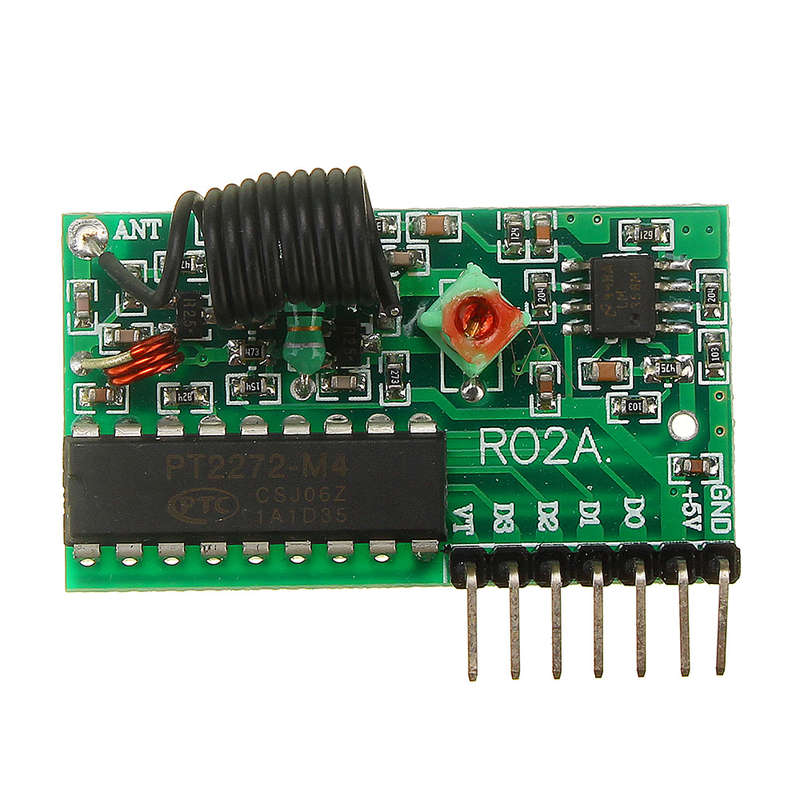

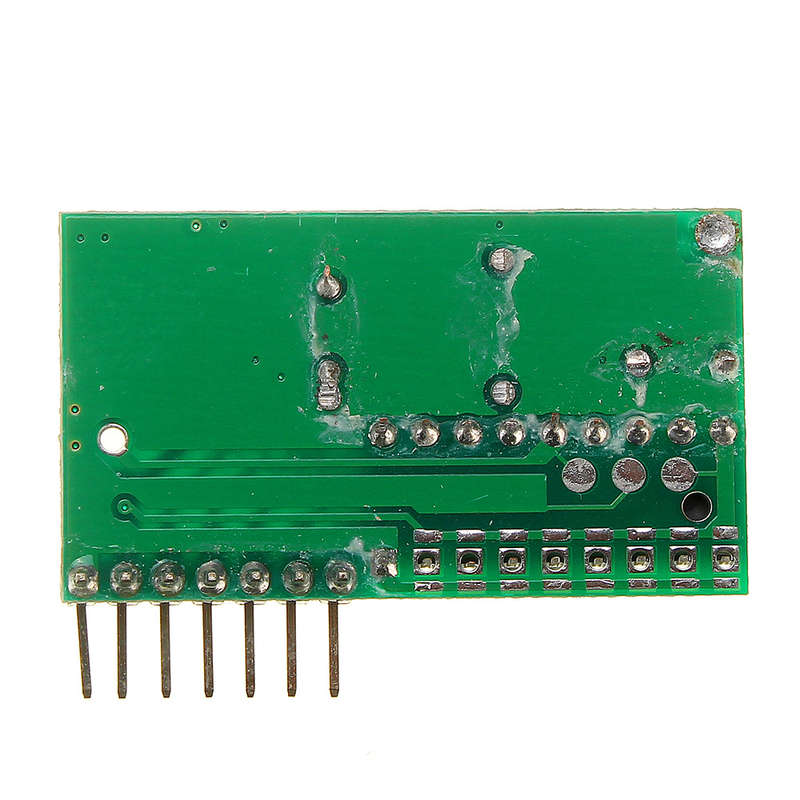

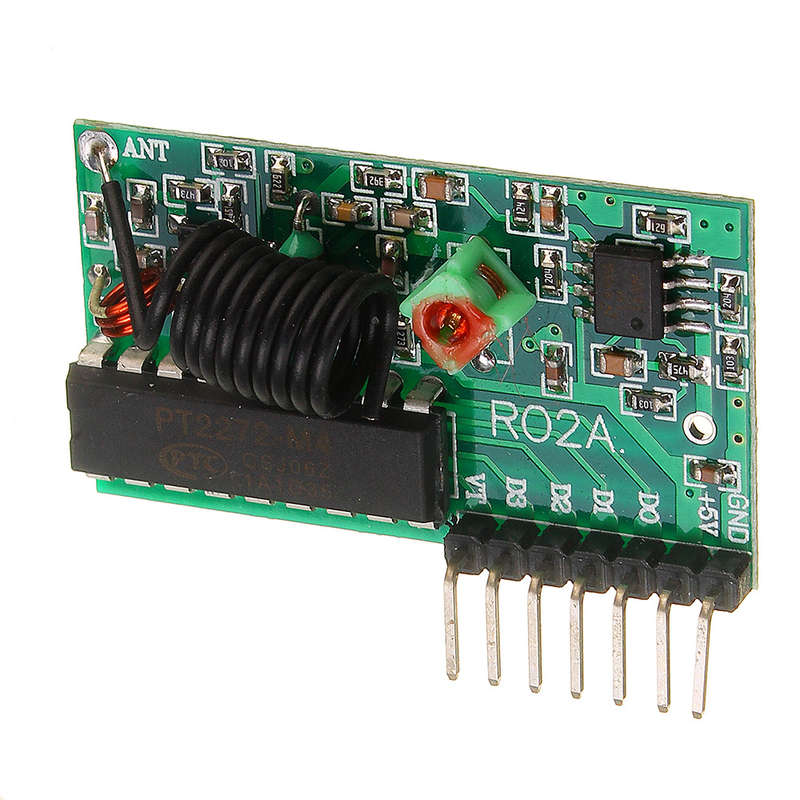

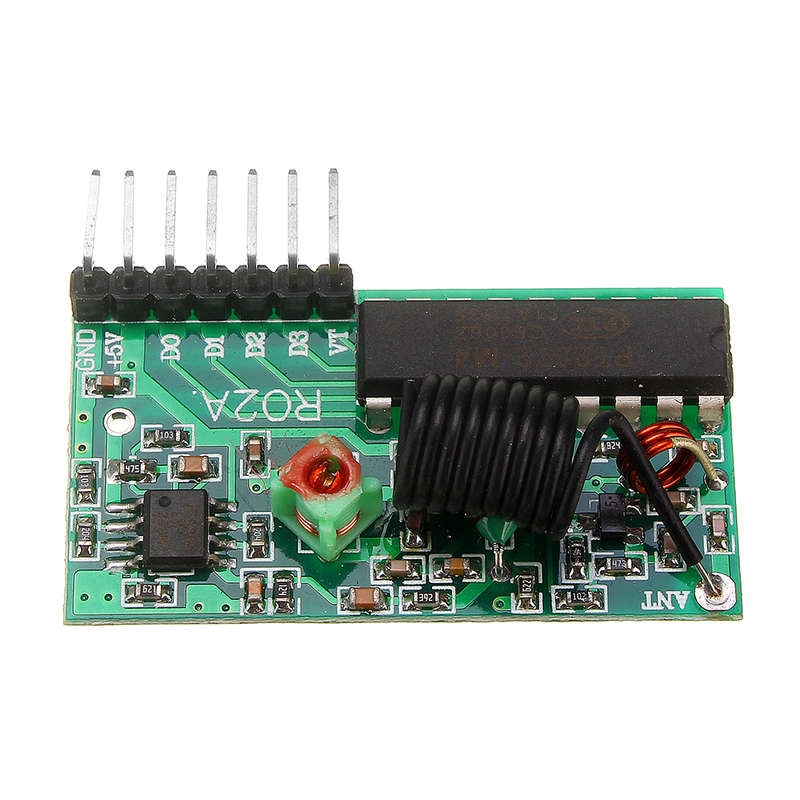

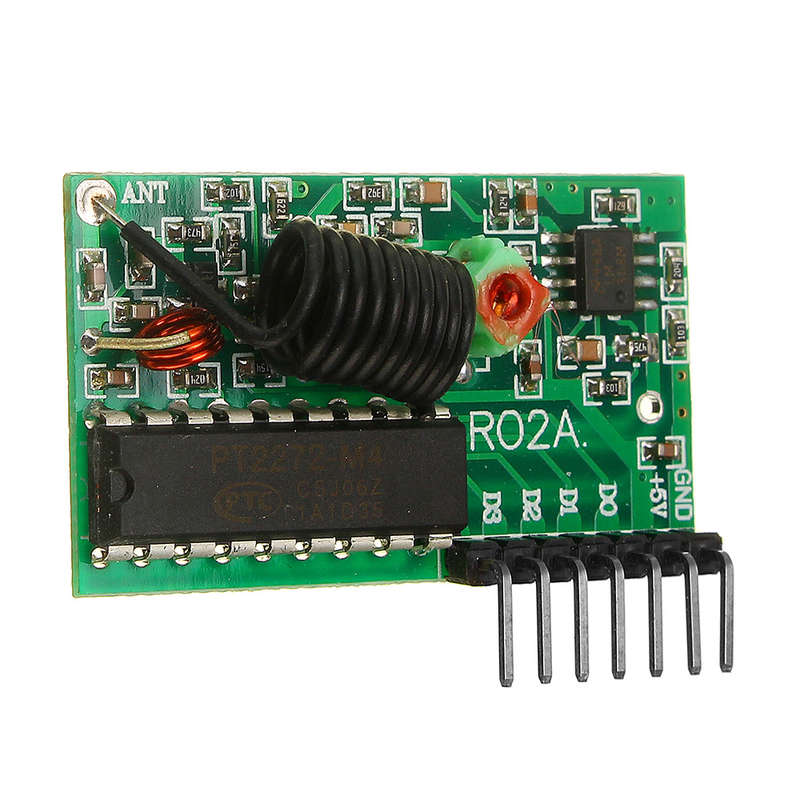

433Mhz 4CH IC 2262/2272 Key 5V Wireless Remote Control Receiver Module

20 available / new

R357.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3466

93.51 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

641109996

Specification:

Model:LXD-9
Name:Wireless Receiver module
1.Operating voltage (V): DC5V
2.Quiescent current (mA): 4.5MA
3.Modulation: AM (OOK)
4.Working temperature: -10 a ~ +70 a
5.Receiver sensitivity (dBm): -105DB
6.Operating frequency (MHz): 433 MHz
7.Output signal: TTL, four channel output
8.Encoding method: pad code (fixed code)

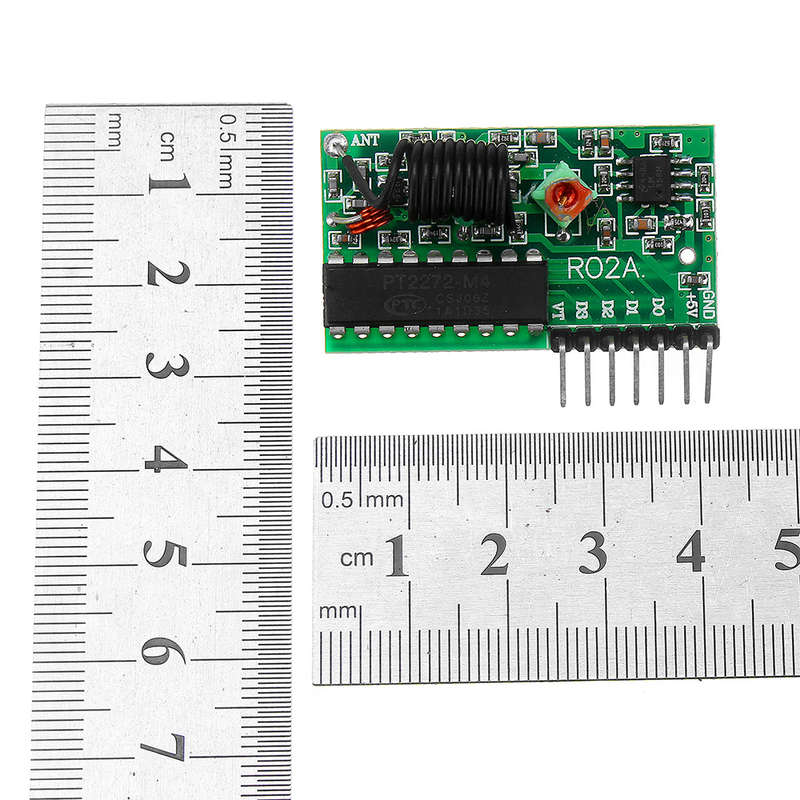

9.Size (L*W*H): 41 * 23mm
10.Working way:M4 (jog),L4 (interlock),T4 (self-locking)
11.Decoding format:2272,2262 etc
12.Applications: wireless remote control switch, remote control socket, data transmission, remote control toys,
burglar alarm host, garage door, roll gate, road gate, retractable door, etc.

Pin Description:

1.VT output indication
2.D3 data output
3.D2 data output
4.D1 data output
5.D0 data output
6.5V power supply positive
7.GND power supply negative
8.ANT connected to the antenna

Package included:

1 x Wireless Receiver module
