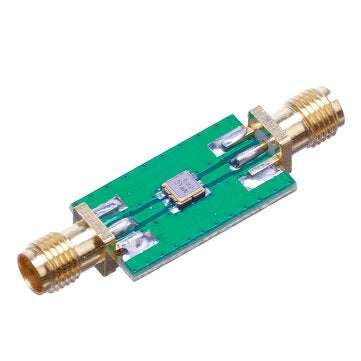

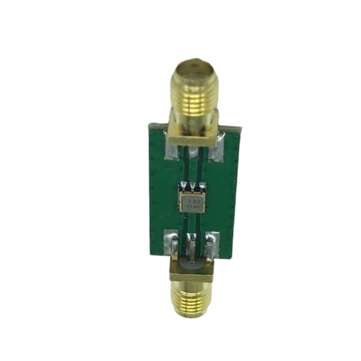

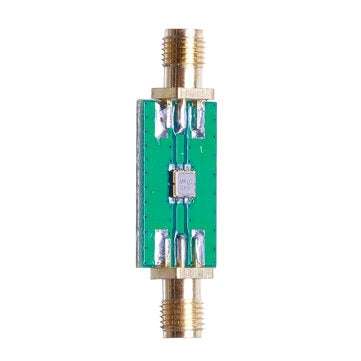

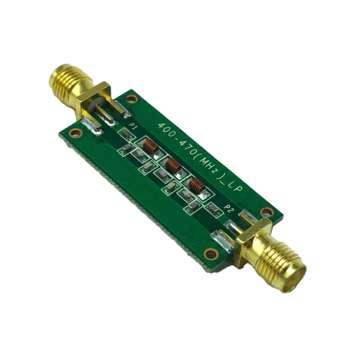

433MHZ Low Pass Filter LPF Module

20 available / new

R571.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3514

93.45 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

643365979

Description:
The low-pass filter allows signals below the cutoff frequency to pass, while signals above the cutoff frequency are attenuated. It is often used to suppress the high-order harmonics of electromagnetic signals, or to filter out high-frequency clutter at the back of the mixer to play the role of frequency selection. This filter can greatly attenuate signals above 470M, and the harmonic suppression capability is about 50dbc. Compared with several low-pass filters, under the same order conditions, the elliptic filter can obtain a narrower transition bandwidth and a smaller transition bandwidth than other types of filters such as Butterworth and Chebyshev filters. Stop band fluctuations, in this regard, the elliptic filter is optimal. This is a 7th-order elliptic function low-pass filter, and the filter steepness is better than other filters.
Parameter:
1. S11<-20dB, standing wave ratio SWR <1.22; 2. S22<-20dB, standing wave ratio SWR <1.22; 3. S21>-0.5dB, insertion loss <0.5dB; 4. PCB dimensions (without sma connector): 36mm x 16mm
Package included:
1 xFilter
