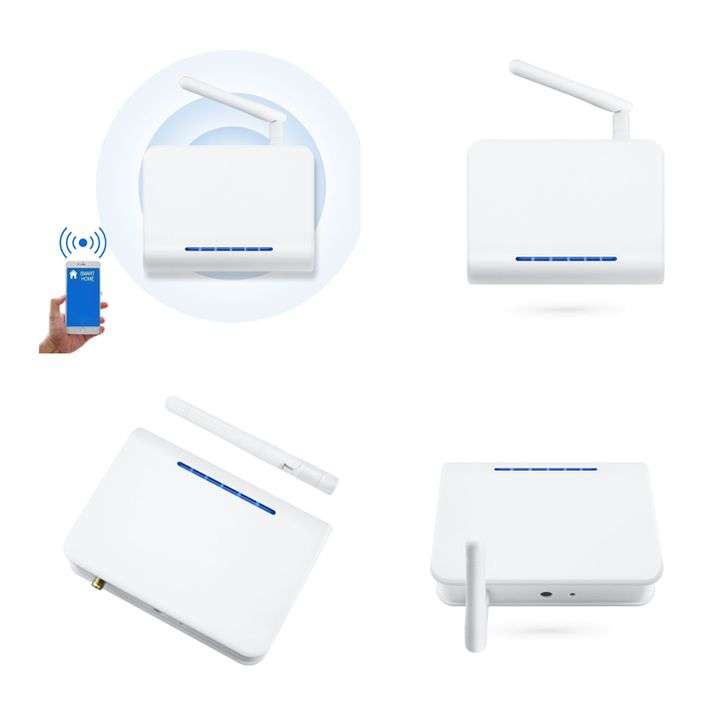

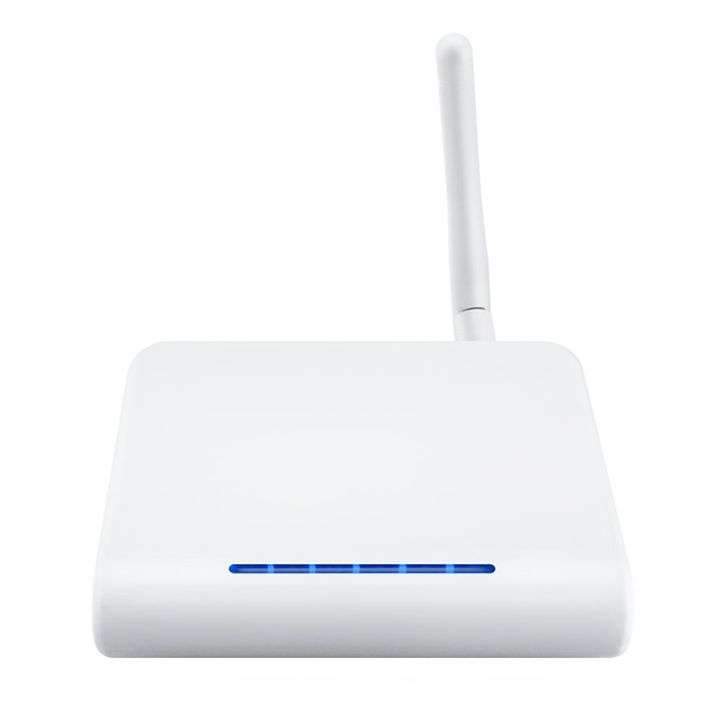

433Mhz Repeater | Range Extender for Security Alarm Panel Sensors
This 433Mhz repeater is for the Smart Alarm System Panel Kit and includes motion and magnetic door sensors, remotes, doorbell, and siren to get you started. The choice is yours, scale and create an alarm system that perfectly suits your every need. Simply, add any number of 433Mhz devices to scale the system to your specific needs, configure and Play.
This range extender is perfect for large homes and homes with distant nooks that require coverage. This range extender is a simple addition that can be simply connected to devices outside the Alarm hub's range.
Download the User Manual [click here]
How to Add:
1. First complete pairing your Alarm hub to the Wi-Fi and setting up relevant devices such as remote controllers and PIR sensors.
2.Then power the 433Mhz range extender.

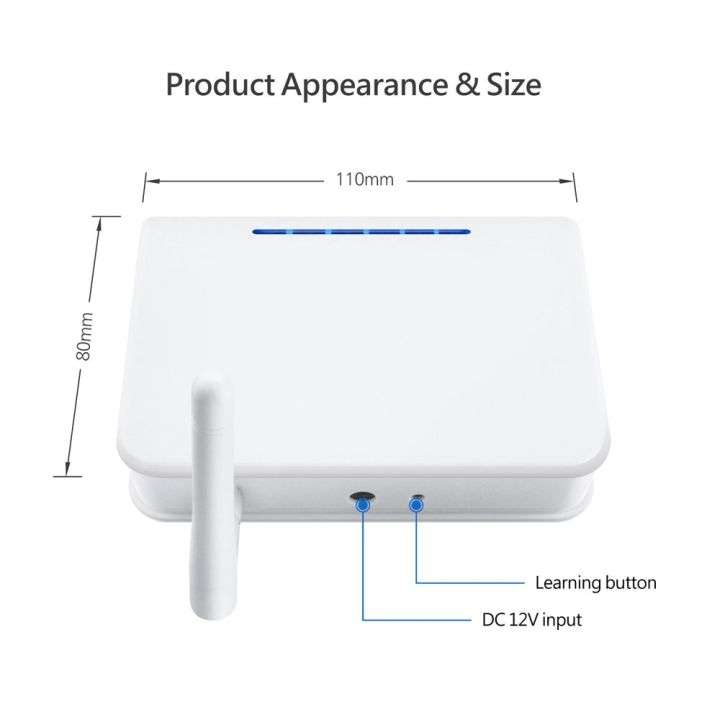

3. Press and hold the pairing button next to the power port for 3 secs.
4. A red light will begin to flash.
5. When the red light is flashing press and hold the pairing button of the respective device you would like to pair.
6. You will know pairing will be successful when the 433Mhz range extender lights up when you interact with the respective device.
7. Place the range extender in-between the Alarm Hub and where you want to place the relevant device, make sure it is at maximum at the furthest distance of the Alarm Hub range.
Specifications
- Working voltage: DC12V
- Operating current: 150mA-180mA
- Transmitting frequency: 315 MHz or 433.92 MHz (Customized is optional)
- Receiving time: 3s (Not transmitting signal when receiving)
- Transmitting time: 3-10s (Not receiving when transmitting signal)
- Oscillation resistance: 1.5M-4.7M
- Transmitting distance: 1000m
- Applicable encoding IC: 2262, 2264, 2260, 1527, 2240
- Maximum sensors quantity can be registered: 100PCS

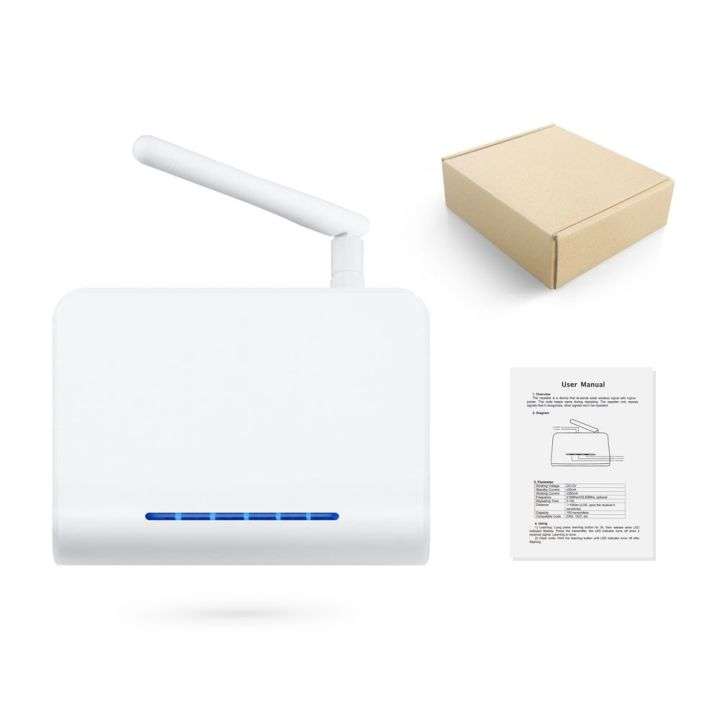

What's in the box?
1x 433Mhz range extender.
1x 12V Power Adapter.
1x Manuel, in the form as a sticker on the range extender.
