Our alarm system contained:
1. Wireless transmission frequency for all our wireless alarm system is 433MHz
2. Have backup battery which can last 4 hour when power cut off
3. Build-in newest 4 Bands GSM module: 850/900/1800/1900MHz
4. Can Supports Partial Arm, Schedule Arm/Disarm, Entry Delay and Exit Delay
Have More Functions:
1. Can check 99 Alarm History Records
2. Send SMS notification when power cut off
3. Support Real-time, 24 hours (emergency), 40 seconds delay and Bypass mode.

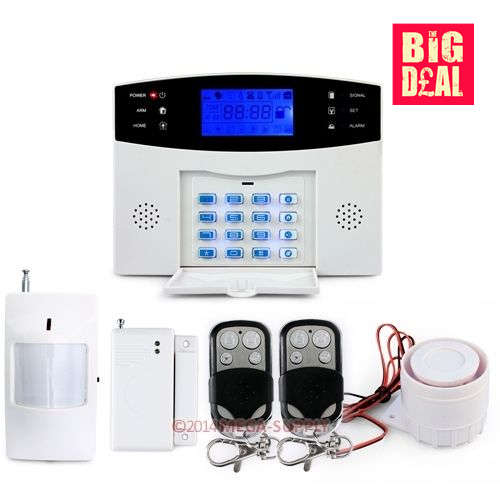

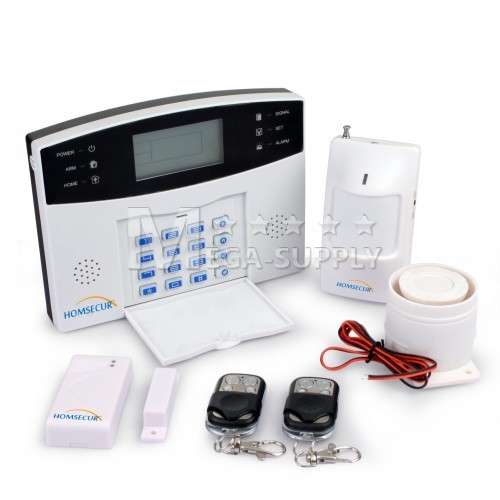

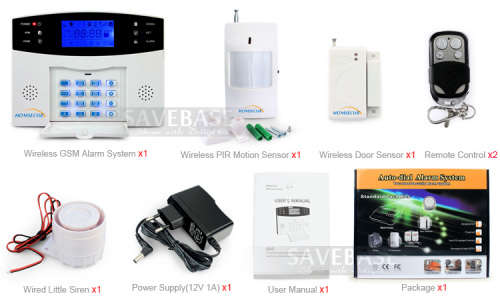

Functions of the Basic Kit

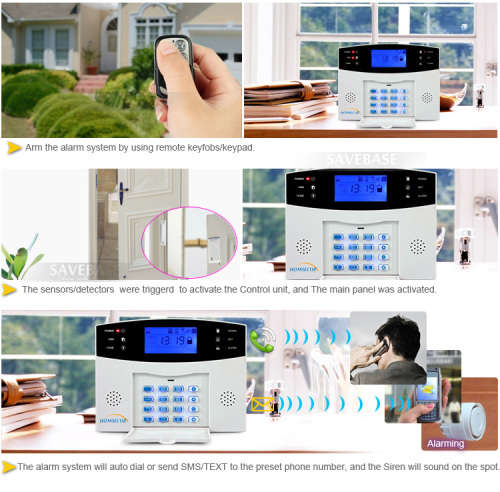

Control Panel: Control center of the alarm system. When alarm happening (triggered by the sensors), it can autodial or send SMS to the prestored phone numbers, and the siren will sound loudly at the spot.
Remote Keyfob: One key control the alarm panel Arm/Disarm/Home Arm/Emergency alarm. The control distance can range to 30meters.
Motion Sensor: Normal PIR which hasn't pet-immune function. It belongs to the Passive IR sensor. When someone enter into its detecting area, it will emit the signal to the control panel. Its detecting area is Horizontal 110°, Vertical 60°, 5~12meters.
Door Sensor: Combined with the chipset and magnetic stripe. When the magnetic stripe far away form the chipset more than 15mm, it will emit a signal to the alarm panel.
Wired Little Siren: When alarm happening, the default siren will sound but NOT flash. The sound volume can reach to 110dB.
(If you need the flash and strobe siren, please choose the A6 flash siren. By the way, these two sirens can't work together)
[Function Instruction]
1. 7 wired and 99 wireless defense zones;
2. LCD screen with time clock display;
3. Voice prompt for all operations;
4. 3 groups of timely arm and disarm;
5. Can store 6 phone numbers: when alarming, system will make alarm call to these numbers automatically;
6. Can store 3 SMS numbers: when alarming, system will send alarming SMS automatically;
7. 10-second automatic message recording;
8. Built-in artificial intelligent digital voice announcer;
9. Built-in artificial intelligent English message;
10. Users can make calls by using keypad on alarm panel, just like a telephone;
11. One-key-control function: Out Arm, Home Arm, Remote Arm;
12. Arm/ disarm by SMS or call remotely;
13. SOS, fire, gas, door, hall, window, balcony, and boundary places alarm;
14. Real-time, delay, 24 hours, bypass defense zones programming function;
15. Wireless coding: easy to add additional wireless accessories;
16. Remote control Arm, Disarm, Monitor, and Intercom by phone;
17. SMS alert for power failure or recovery;
18. Built-in AAA NI-HI rechargeable battery: make alarm when power off.
Click here to Download User Manual
