Specification highlights:

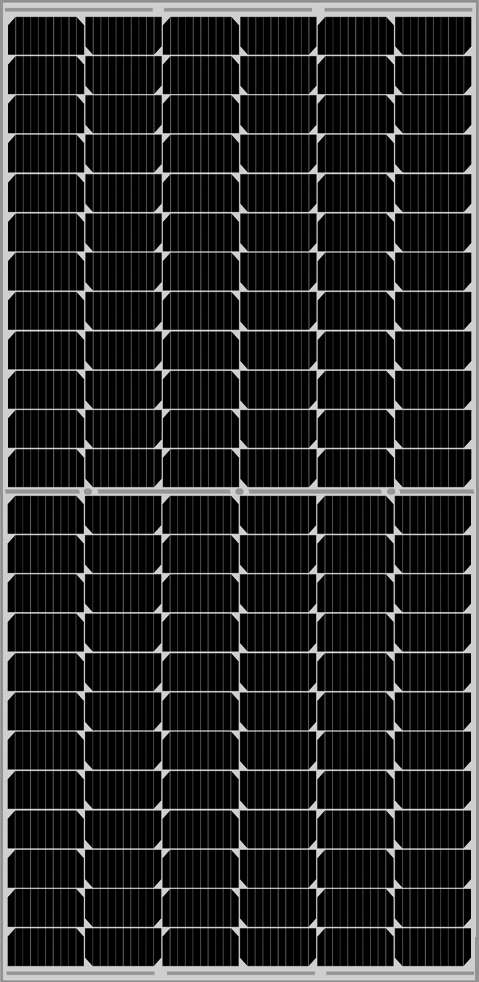

450W Monocrystalline PV panel.
9 Busbar design.
144 A-grade monocrystalline solar cells.
With a 12-year product warranty and a 30-year design life warranty.
Certifications include: German (TUV) certified, IEC, and CE
Electrical specifications @ STC:
Maximum efficiency: 20.7%
Maximum power (Pmax): 450W
Maximum power voltage (Vmp): 41.39V
Maximum power current (Imp): 10.88A
Open circuit voltage (Voc): 50.1V
Short circuit current (Isc): 11.48A
Maximum system voltage: 1500VDC(IEC)
Maximum series fuse rating: 20A
Mechanical specifications:
Cell size: 166 x 83mm
Cell type: A-grade monocrystalline solar cell
Number of cells: 144(6 x 24)
Weight: 23.5kg
Dimensions: 2094 x 1038 x 35mm
Max load: 5400 Pascal
Junction box: IP68 rated
Connector: MC4
Cables: Photovoltaic technology cable 4.0 mm2, 900mm
Warranty:
Product warranty: 12 years
Design life warranty: 30 years
Efficiency warranty: 90% in 12 years, 80% in 30 years**
