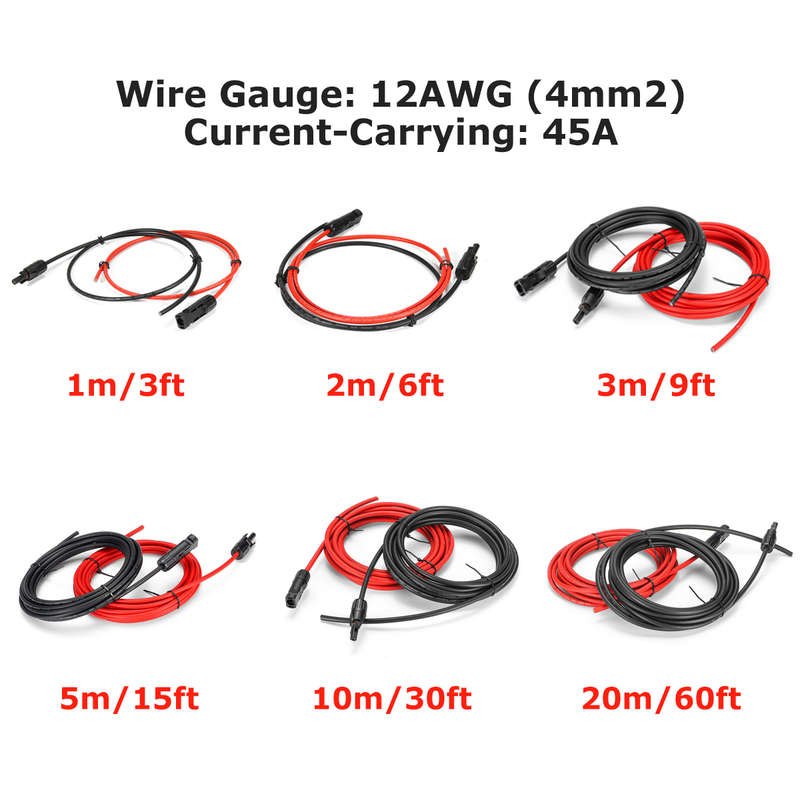

45A 1/2/3/5M 4mm 12AWG Eternal 6mm Solar Panel Extension Cable Wire MC4 Connector ... (LENGTH: 1M)

20 available / new

R898.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3548

93.41 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

643366057

SELECTED OPTION:
LENGTH: 1M

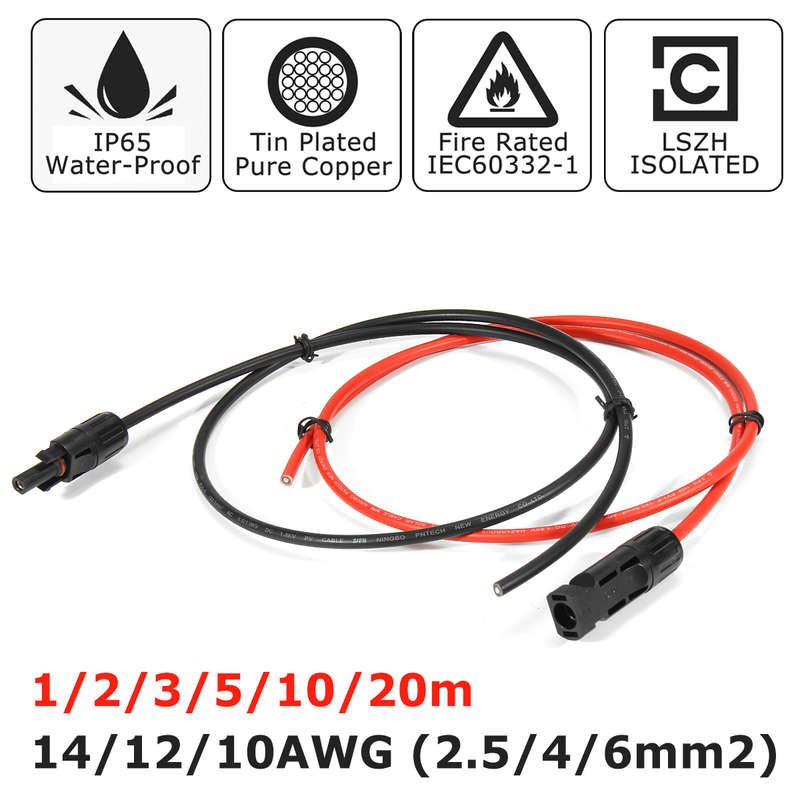

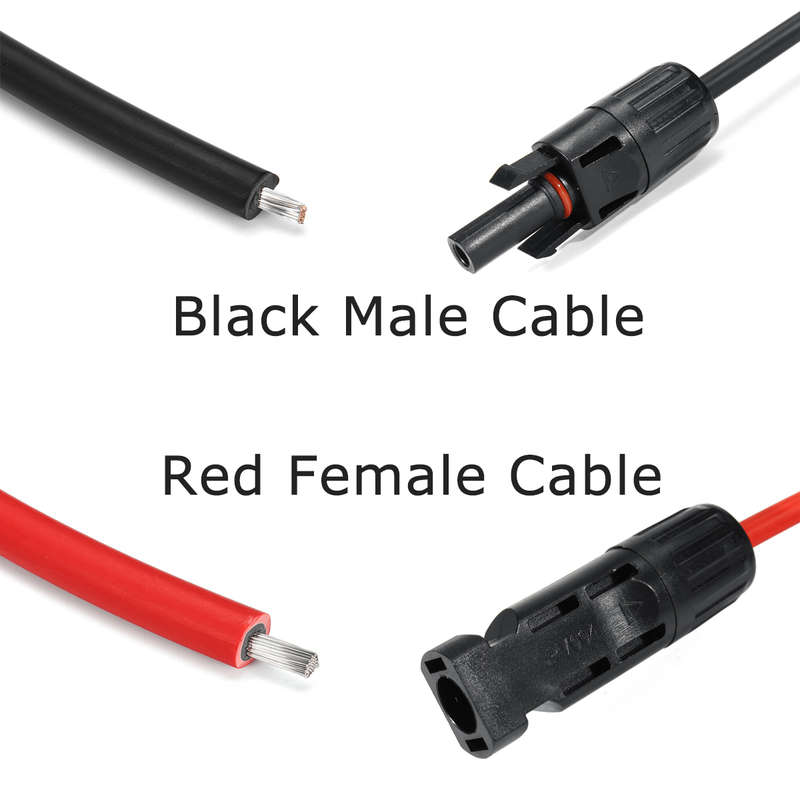

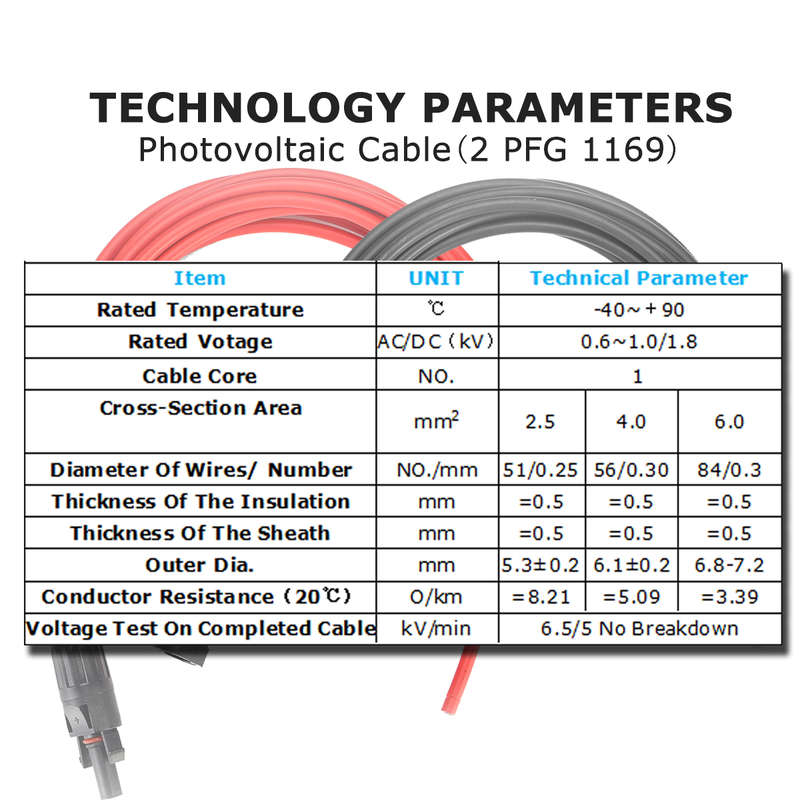

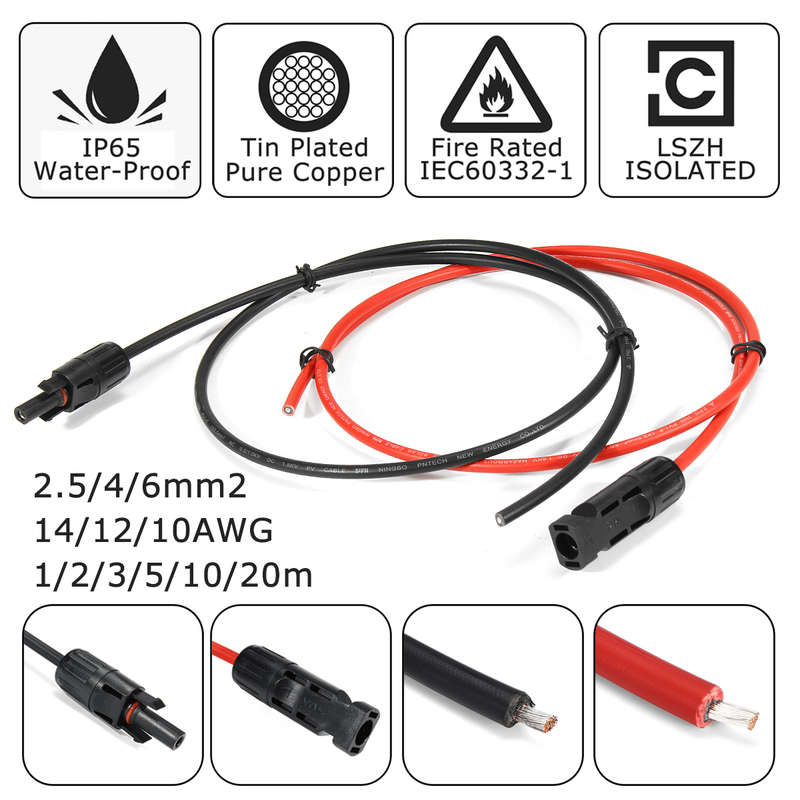

Cable(2 PfG 1169) for Photovoltaic Equipment FEATURE: Brand: Pintech Conductor: Stranded Tinned Copper Insulation: Halogen Free Crosslinked Polyolefin Sheath: Halogen Free Crosslinked Polyolefin Nominal Cross-Section: 4.0mm2 Rated Temperature: -40~+90a Rated Voltage DC: 1/1.8kV Rated Voltage AC: 0.6kV Rated Current: 33~57a Weathering Resistance: Sun Res. Burning Behavior: (IEC60332-1) Black Cable MC4 Connector: Male Red Cable MC4 Connector: Female TECHNOLOGY PARAMETERS 0f 12AWG(4mm2): Rated Temperature(a) = -40~90a Rated Votage(AC/DC(kV)) = 0.6~1.0/1.8 Cable Core(NO.) = 1 Cross-Section Area (mm2) = 4 Cross-Section Area (AWG) = 12 Diameter Of Wires/ Number(NO./mm) = 56/0.30 Thickness Of The Insulation(mm) = a0.5 Thickness Of The Sheath(mm) = a0.5 Outer Dia.(mm) = 6.1&pm;0.2 Conductor Resistance ( 20a ) (/km) = a5.09 Voltage Test On Completed Cable(kV/min) = 6.5/5 No Breakdown
