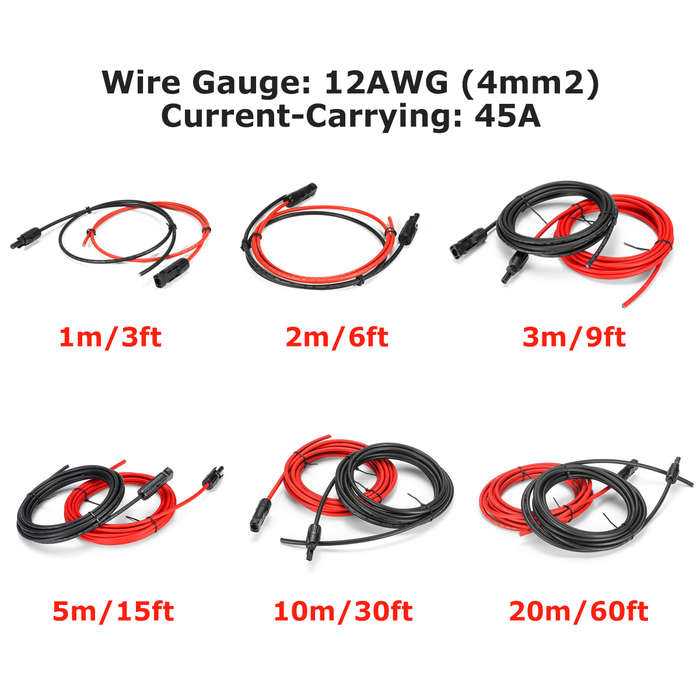

45A 1/2/3/5M 4mm 12AWG Eternal 6mm Solar Panel Extension Cable Wire MC4 Connector ... (LENGTH: 1M)

SELECTED OPTION:
LENGTH: 1M

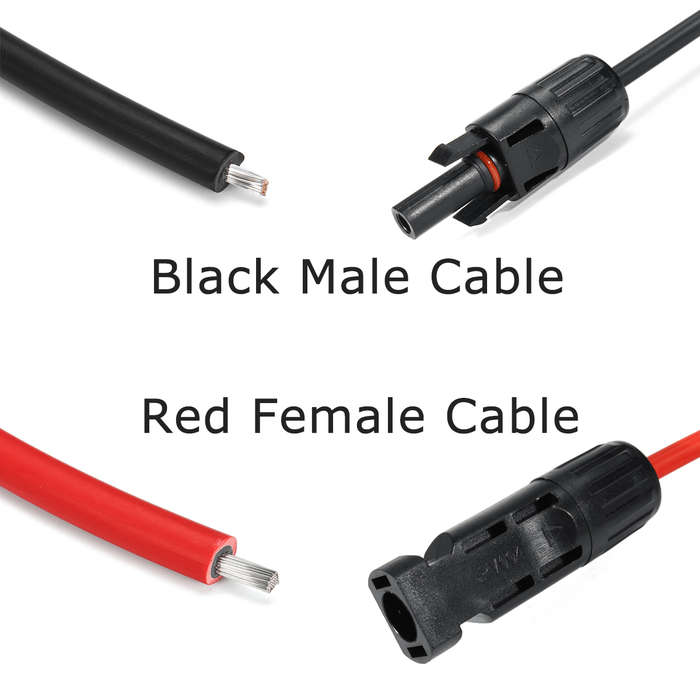

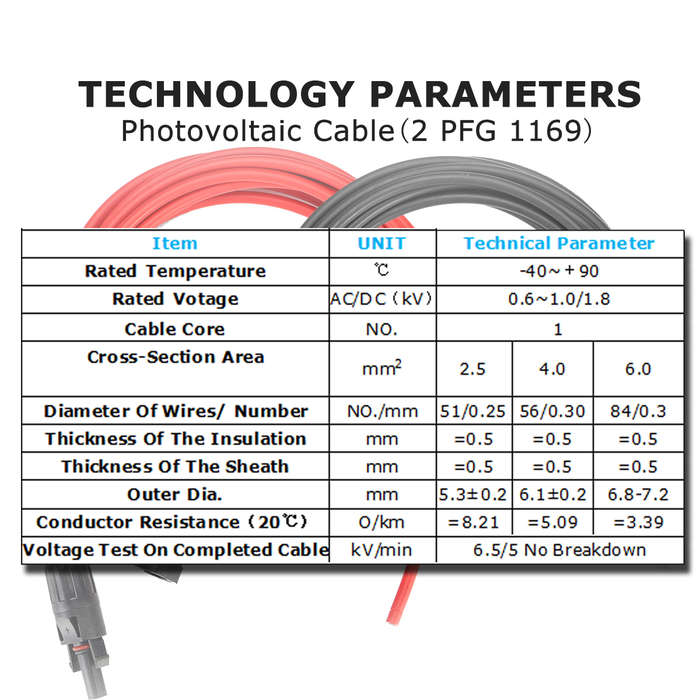

Cable(2 PfG 1169) for Photovoltaic Equipment FEATURE: Brand: Pintech Conductor: Stranded Tinned Copper Insulation: Halogen Free Crosslinked Polyolefin Sheath: Halogen Free Crosslinked Polyolefin Nominal Cross-Section: 4.0mm2 Rated Temperature: -40~+90a Rated Voltage DC: 1/1.8kV Rated Voltage AC: 0.6kV Rated Current: 33~57a Weathering Resistance: Sun Res. Burning Behavior: (IEC60332-1) Black Cable MC4 Connector: Male Red Cable MC4 Connector: Female TECHNOLOGY PARAMETERS 0f 12AWG(4mm2): Rated Temperature(a) = -40~90a Rated Votage(AC/DC(kV)) = 0.6~1.0/1.8 Cable Core(NO.) = 1 Cross-Section Area (mm2) = 4 Cross-Section Area (AWG) = 12 Diameter Of Wires/ Number(NO./mm) = 56/0.30 Thickness Of The Insulation(mm) = a0.5 Thickness Of The Sheath(mm) = a0.5 Outer Dia.(mm) = 6.1±0.2 Conductor Resistance ( 20a ) (/km) = a5.09 Voltage Test On Completed Cable(kV/min) = 6.5/5 No Breakdown
