48 PCS Adjustable Color Galvanized Iron Double Wire Hose Clamps

EDA009153
1. Fasten the connector, used to fix the hose and the joint so that the gas or liquid can be safely transmitted without leaking.
2. 360-degree clamping, resistance to thermal expansion and contraction, the surface is treated with color zinc plating, which is not easy to rust and has a long service life.
3. With spring double ring structure, it has better fastening effect.
4. Scope of application: widely used in motor vehicles, machine tools, trains, ships, aviation, petroleum, chemical, pharmaceutical, mining, sewage treatment, purification projects and gas pipelines.
5. Parameters:
Material: Iron
Surface treatment: color zinc plating

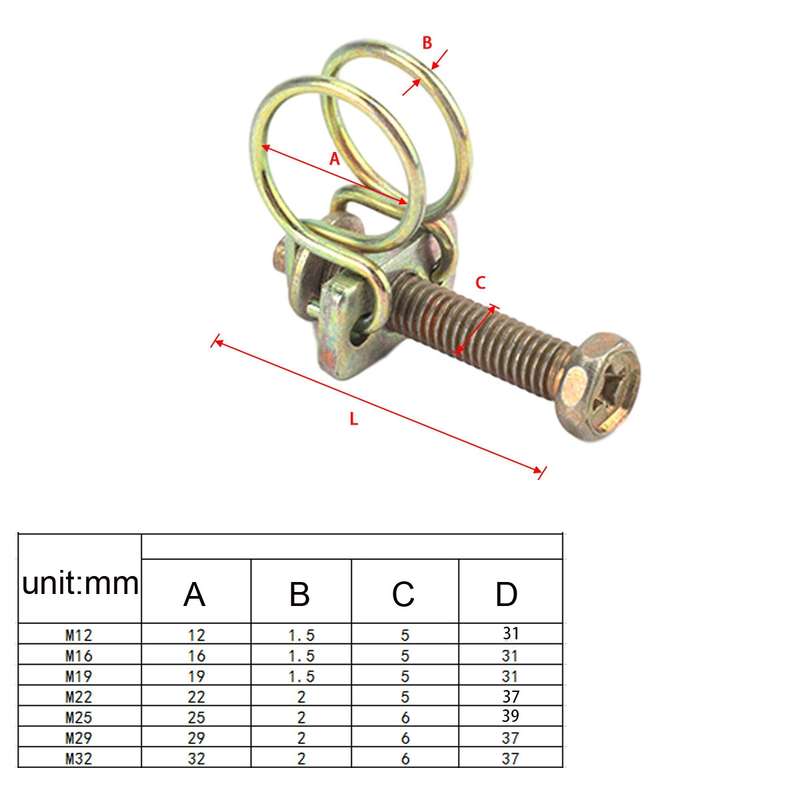

specification:
Diameter range: 12mm, screw diameter: 5mm, screw length: 31mm, wire diameter: 1.5mm
Diameter range: 16mm, screw diameter: 5mm, screw length: 31mm, wire diameter: 1.5mm
Diameter range: 19mm, screw diameter: 5mm, screw length: 31mm, wire diameter: 1.5mm
Diameter range: 22mm, screw diameter: 5mm, screw length: 37mm, wire diameter: 2mm
Diameter range: 29mm, screw diameter: 6mm, screw length: 37mm, wire diameter: 2mm
Diameter range: 32mm, screw diameter: 6mm, screw length: 37mm, wire diameter: 2mm

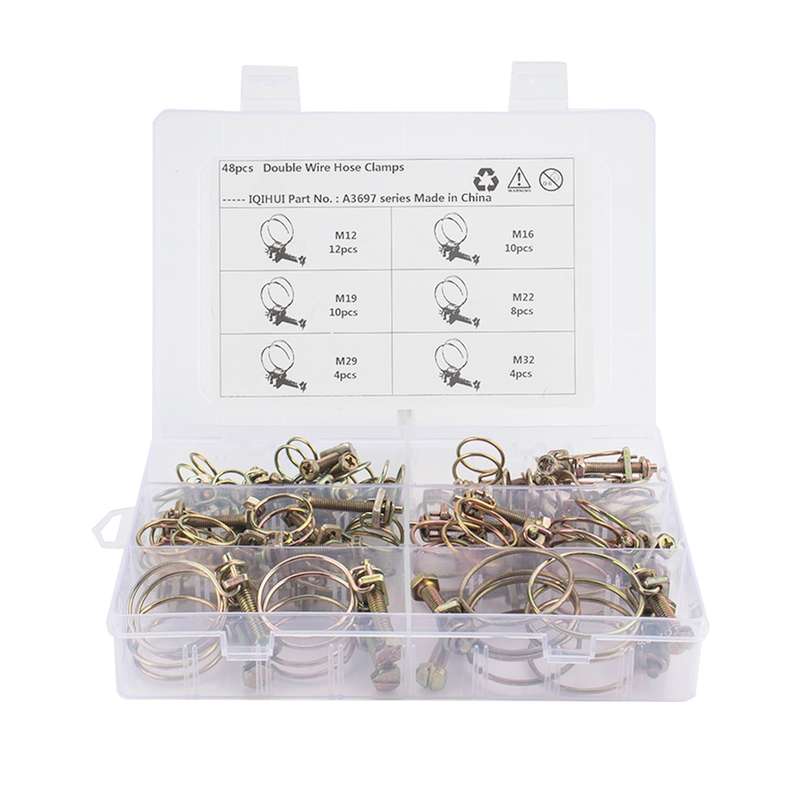

6. Packing:
M12 x 12
M16 x 10
M19 x 10
M22 x 8
M29 x 4
M32 x 4
