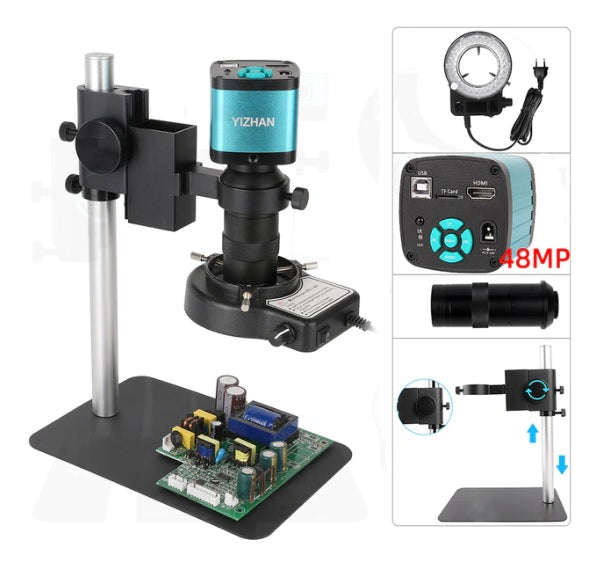

48MP 4K HDMI/USB/VGA/CCD Digital Electronic Microscope Camera set 130X Lens+LED Ring Light (10005196)
48MP USB HDMI 4K 60FPS
Product features
48 million pixel imported Panasonic CMOS image sensor;
Using 1/2.33 inch image sensor, Angle of view is wider than 1/3 inch;
HDMI 1080P 60 frame image output;
USB2.0 driver free output 1080P 30 frame image output;
4K video recording;
48 million photos, JPG format, photo size 4608×3456;
One-click freezing/thawing function;
48 megapixel photography and 1080P video recording;
Electronic zoom function;
Support manual/automatic exposure, exposure compensation value adjustment;
Support manual/automatic white balance, red, green, blue adjustable;
Provide 8 line drawing functions, line color, thickness, position adjustable;
Display/close center cross;
Support TF card storage, up to 64GB;
Support remote control operation, take photos without jitter image more clear;
Support Chinese and English menu language (default English);
Support shutdown setting parameters save;
Strong metal shell;

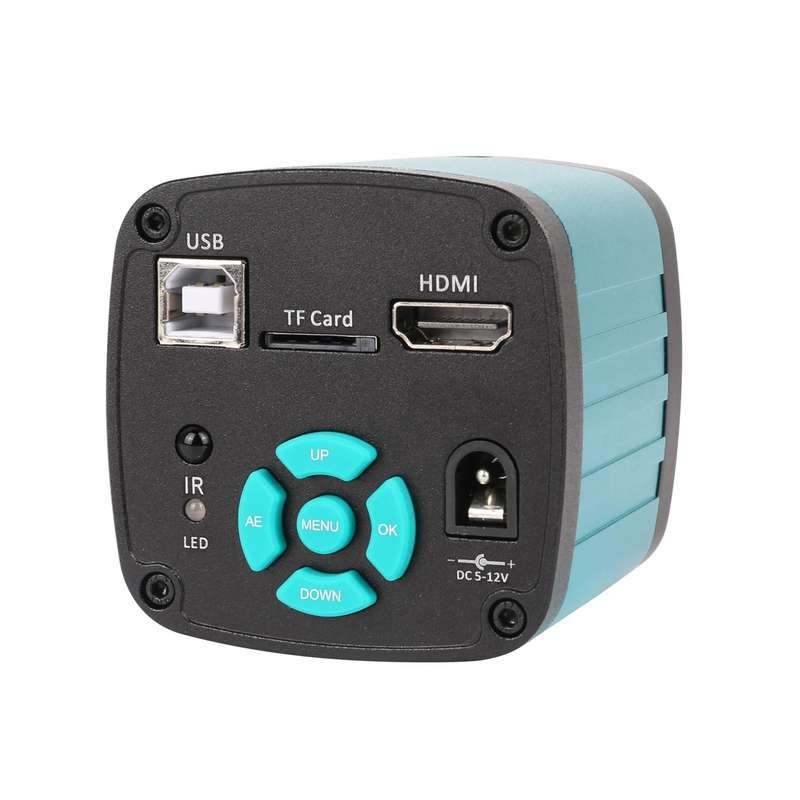

The sensor: 1/2.33 inch Panasonic 48 megapixel CMOS sensor
Pixel size: 1.335µm × 1.335µm
HDMI output: 1920*1080 60PFS
USB output: 1920*1080/30 1280*720/30 640*480/30 320*240/30 (MJPG)
Camera interface: C/CS
Exposure: Automatic/manual
Exposure compensation: Support
White balance: Automatic/manual, RGB adjustable
Storage: Supports a maximum of 64GB
Input voltage: Dc 5v-12v
line: Supports 8 straight lines with adjustable color, thickness and position
Center line: Support
Menu language: English/Chinese
Remote control: Support remote control operation
Net weight：250g
Rough weight：450g
Product size：66*66*49mm

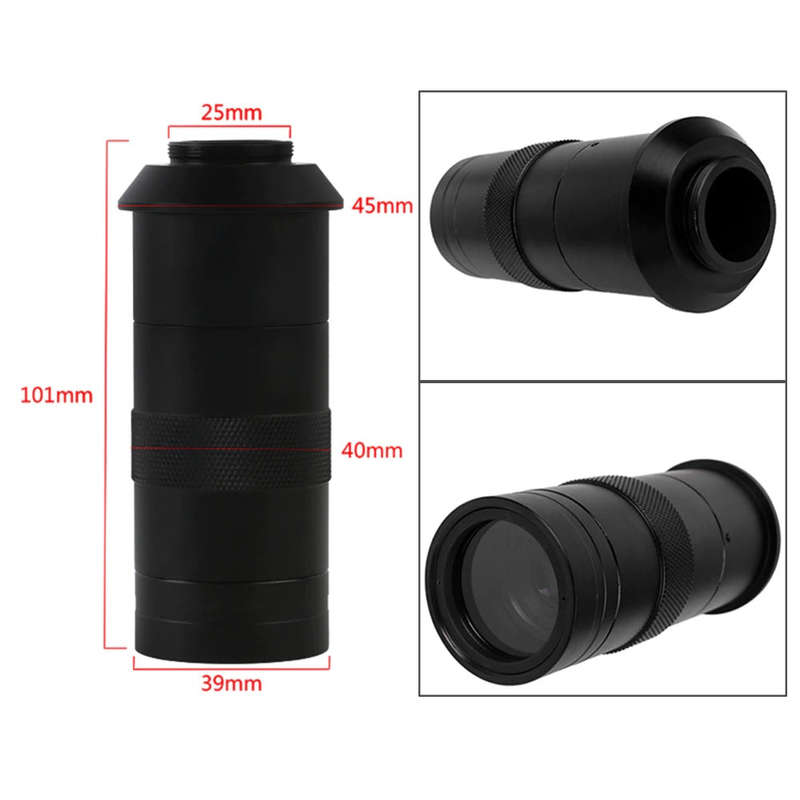

130X Type C mounting lens
Working distance: 50~155mm
zoom c-mount Lens
Magnification Power by 0X~130X
Size: 115mm(L) * 40mm(DIA)

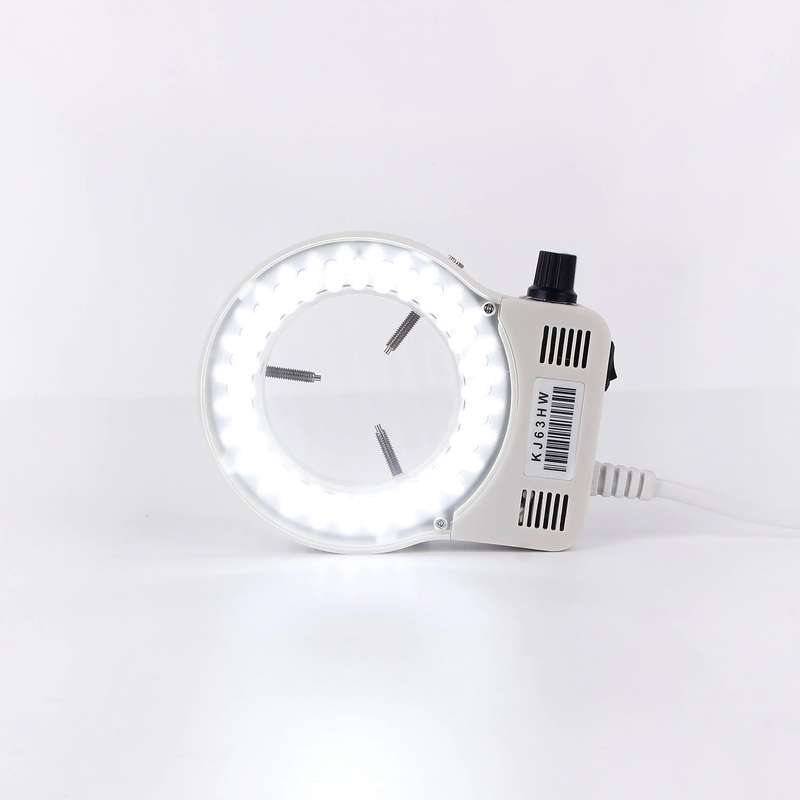

56 LED Adjustable Compact Microscope Ring Light:
Provides intense and focused shadow-free illumination
56Lighting direction changeable
Variable intensity control
Intense and focused shadow-free illumination
100,000 hours of life
Power input: 100-240V, 50-60HZ, auto switching
Inside diameter of the ring light: 1.0 (27mm)
Overall outside diameter: 1.77 (45mm)

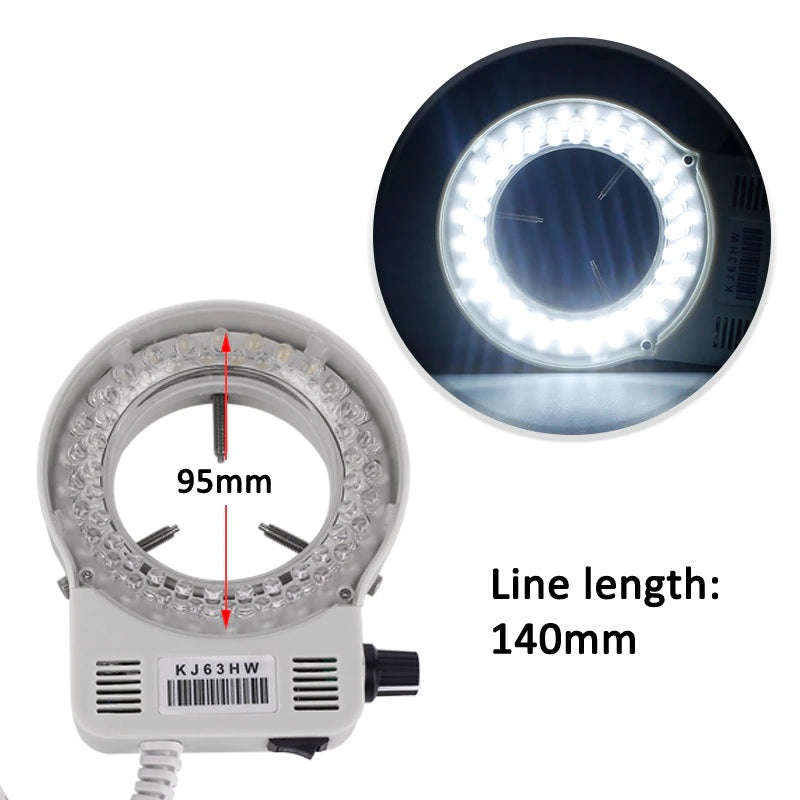

LED Ring light (Black&White)
features
Intense and focused shadow-free illumination
Adjustable brightness
Specifications:
Light color: black
Max output: 4.5 W
Best working distance: 60 180 mm
Brightness of each LED: 3500 mcd (max)
color temperature: 5500K
Inside diameter: 30 60 mm
Outside diameter: 95 mm
Power input: AC100 240 V, 50 60 Hz
Output: DC 24V(MAX)
Line length:140mm
Package Contents (NEW 48MP)：
1. 48MP HDMI 4K USB 60FPS-compatible microscope camera*1
2.White LED ring light *1
3.Microscope stand*1 Set (29cm*22cm*15cm)
4.130X adjustable lens *1
5.HDMI-compatible transmission line*1
6.Remote control*1
7.Power Supply
User Manual
