48V 1000W Electric Bike Motor Scooter Speed Controller w/Throttle Twist Grips

Specification:

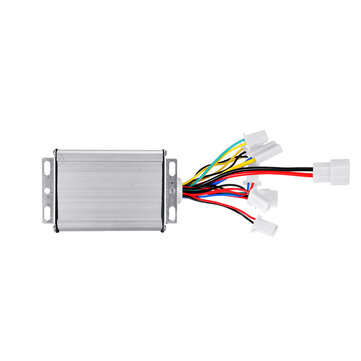

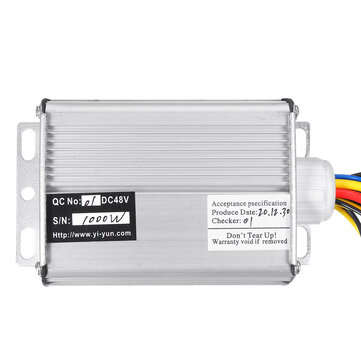

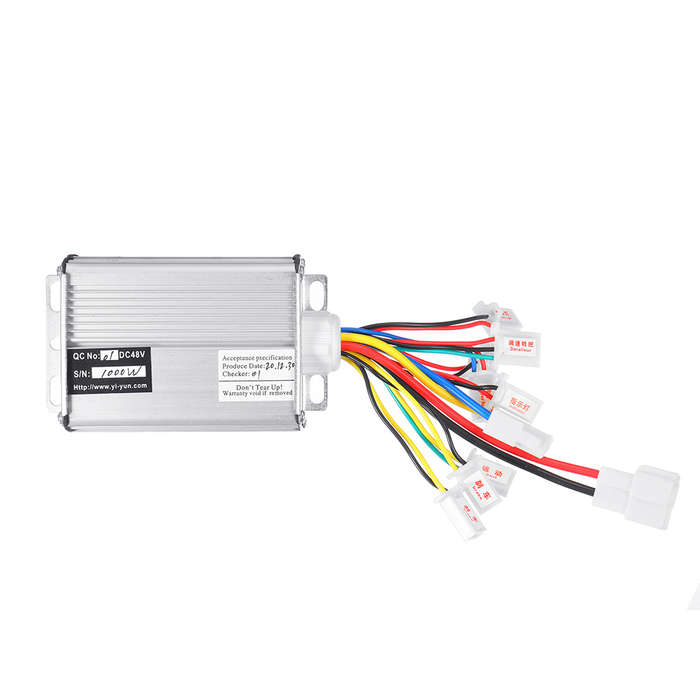

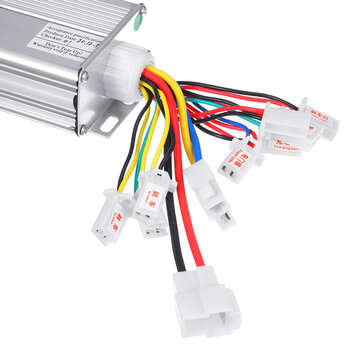

Brushed Controller
Casing material	Aluminium
Motor brushed controller	For Electric bicycle & scooter
Rated voltage	dc 48 v
Current limited?	30A
Rated power	1000 w
Matching motor	dc brushed motor
Under Voltage Protection	42V

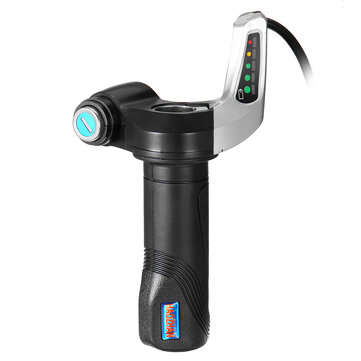

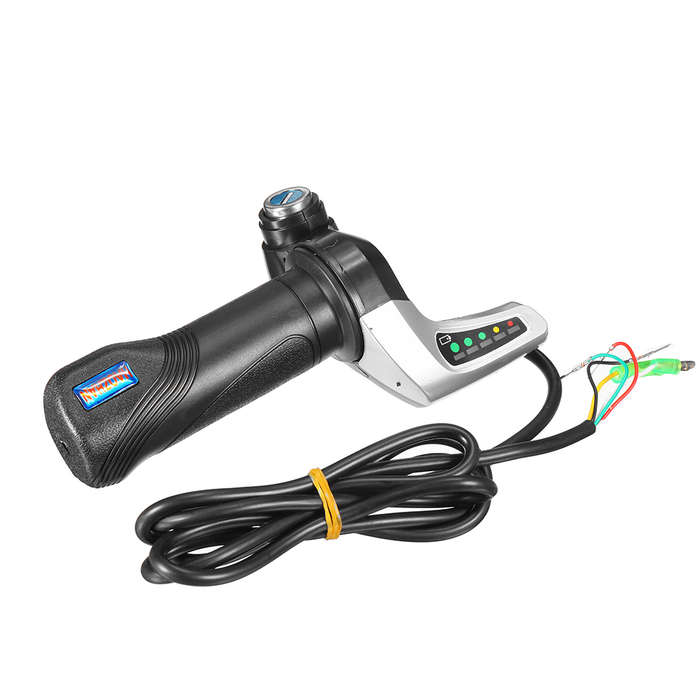

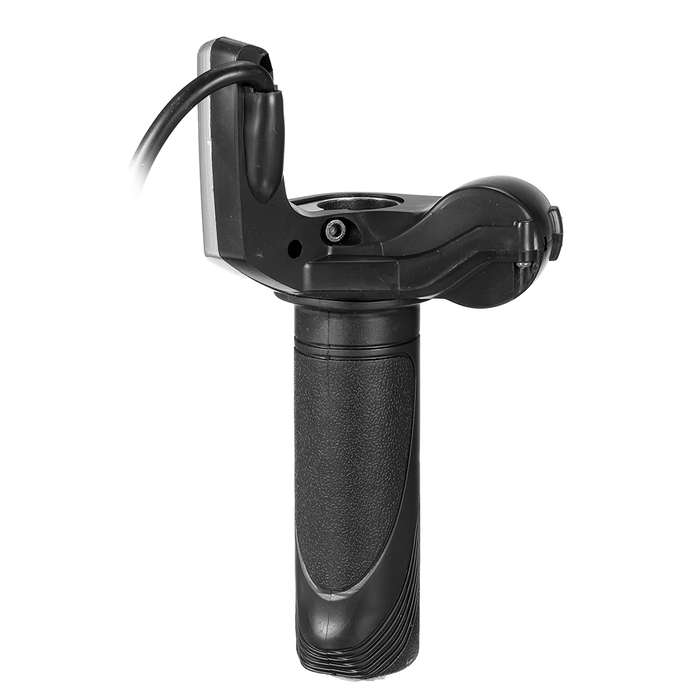

Throttle
Material	Plastic

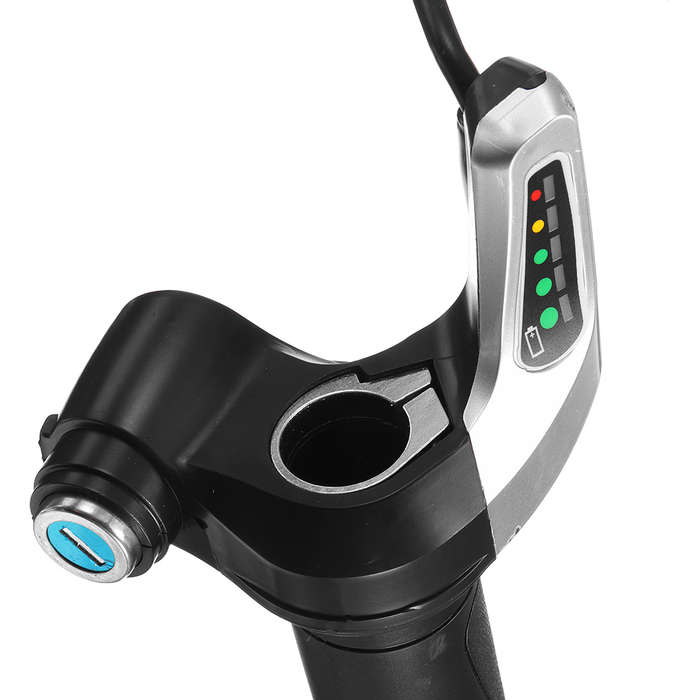

	Electric Bike scooter twist throttle accelerator with power display, 5Led battery indicator.

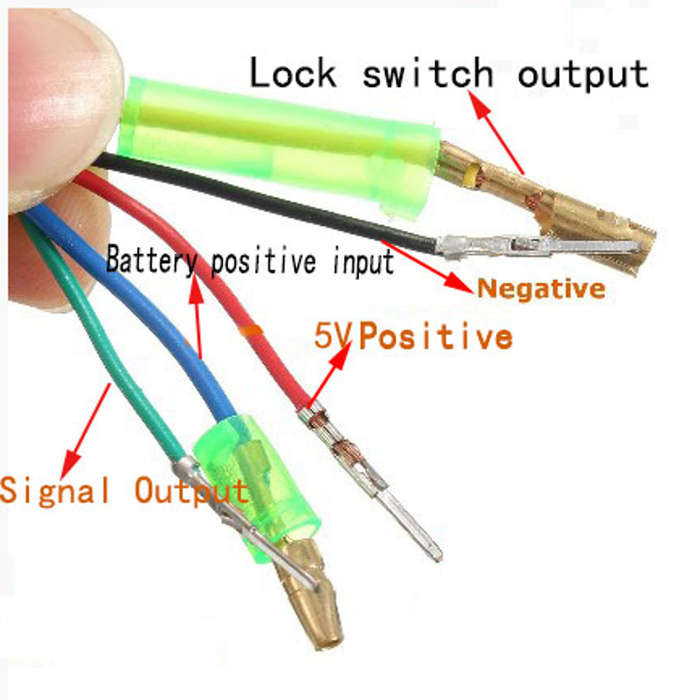

Throttle Works Voltage	DC5V
Speed Adjusting Signal	0.8V-4.3V
Power display Voltage	DC 42V

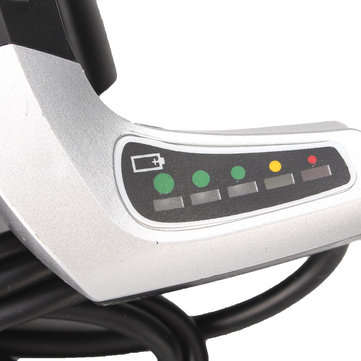

Power display
Normal	48V above, 3 Led Green
Half	47V ~ 42V, Led Yellow
Empty	42V or less, Led Red
Rotation angle	0 ?ﾣ~ 70 ?ﾣ
Working temperature	?-20 a??~ +50 a??

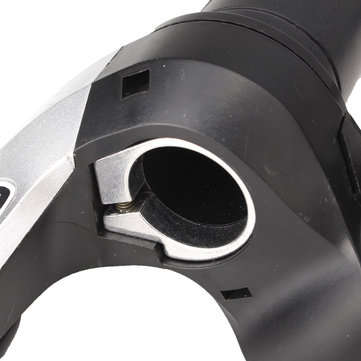

Fit	standard 7/8 inches(22.2mm) handle bars

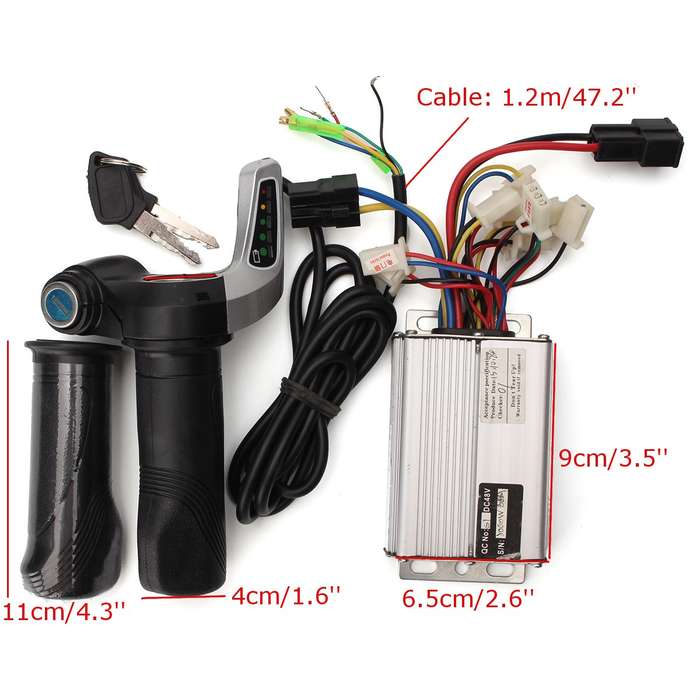

Cable length	?approximately 47 inches (1.2m)

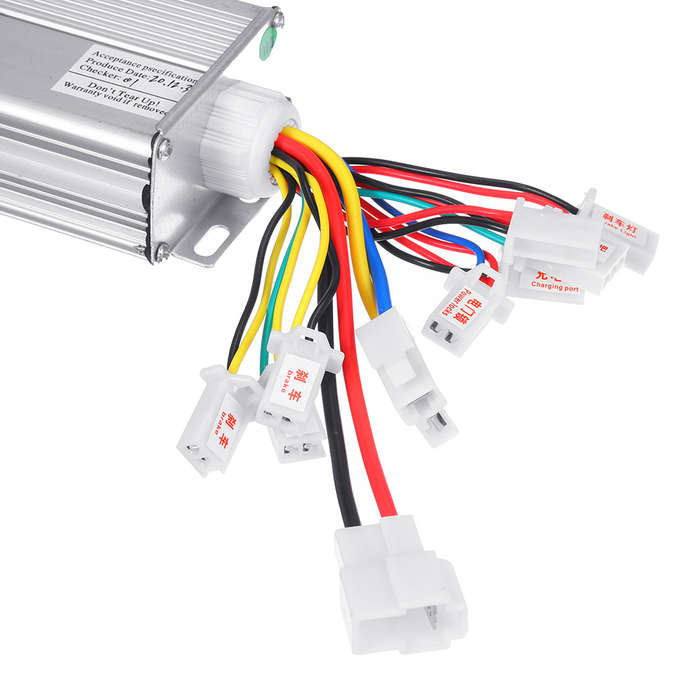

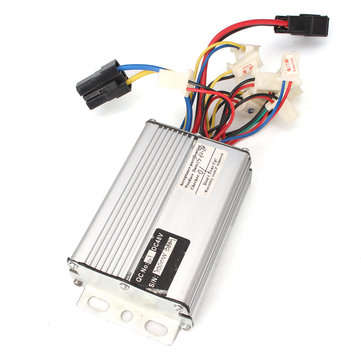

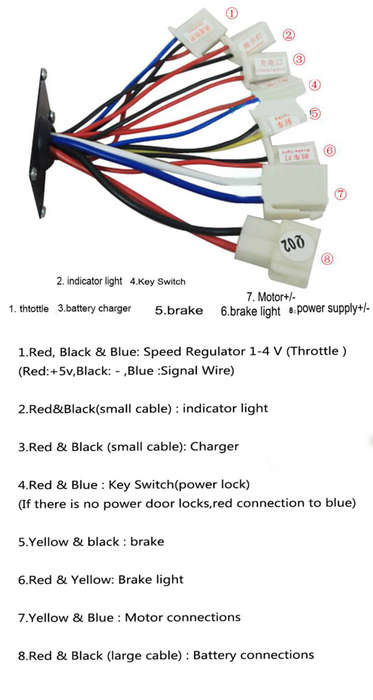

Controller Wires Interface Definition: Battery :Thick Black (Power Negative) /Thick Red (Power Positive) Motor :Thick Yellow (Motor Negative) /Thick Blue (Motor Positive) Ignition Switch :Thin Red(VCC)/Thin Blue Indicator : Thin red (Indicator power output) /thin black (indicator negative) Brake :thin yellow (Brake signal)/thin black(Negative Power) Speed governor :Thin blue(Speed handlebar Signal input) /Thin black (Negtive Power) /thin red(5V Positive Power) Charge Port : Thin red (charge input power Positive) /thin black (Power negative) Brake Light: Thin red (power Positive) /thin black (Power negative) Sport: Thin yellow /thin green ? Note: 1.Please allow 1-3mm error due to manual measurement.Pls make sure you do not mind before you bid. 2.The color may have different as the difference display,pls understand. ? Package Included:

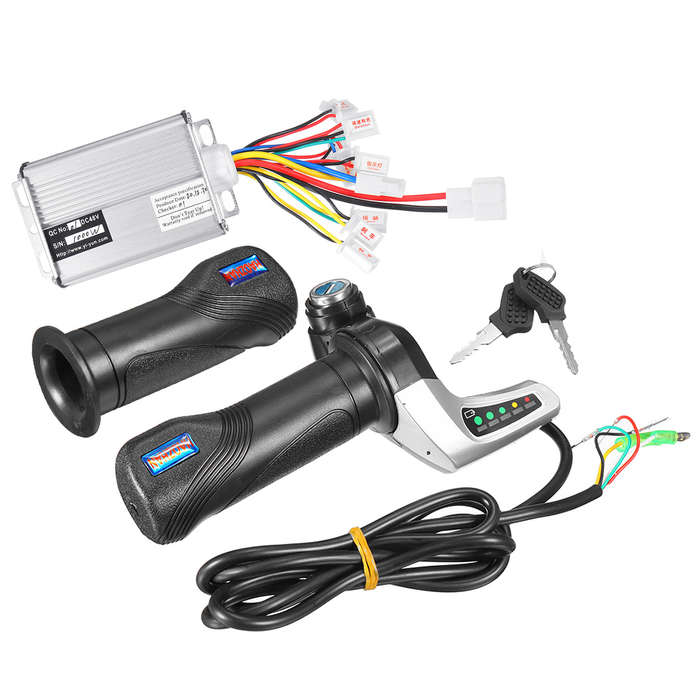

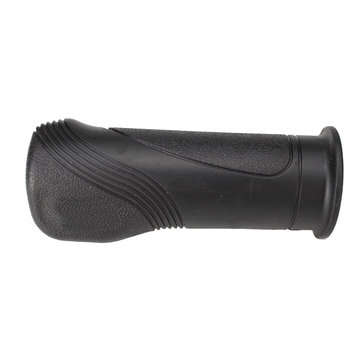

1 X?	48V Throttle Grip With Normal Grip
1 X	48V 1000W Controller

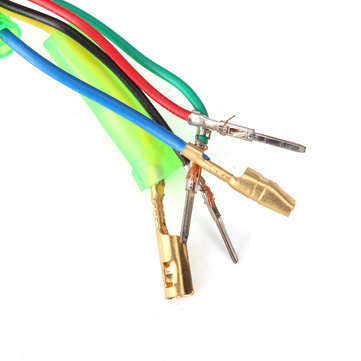

1 X?	Black Terminal Ends
