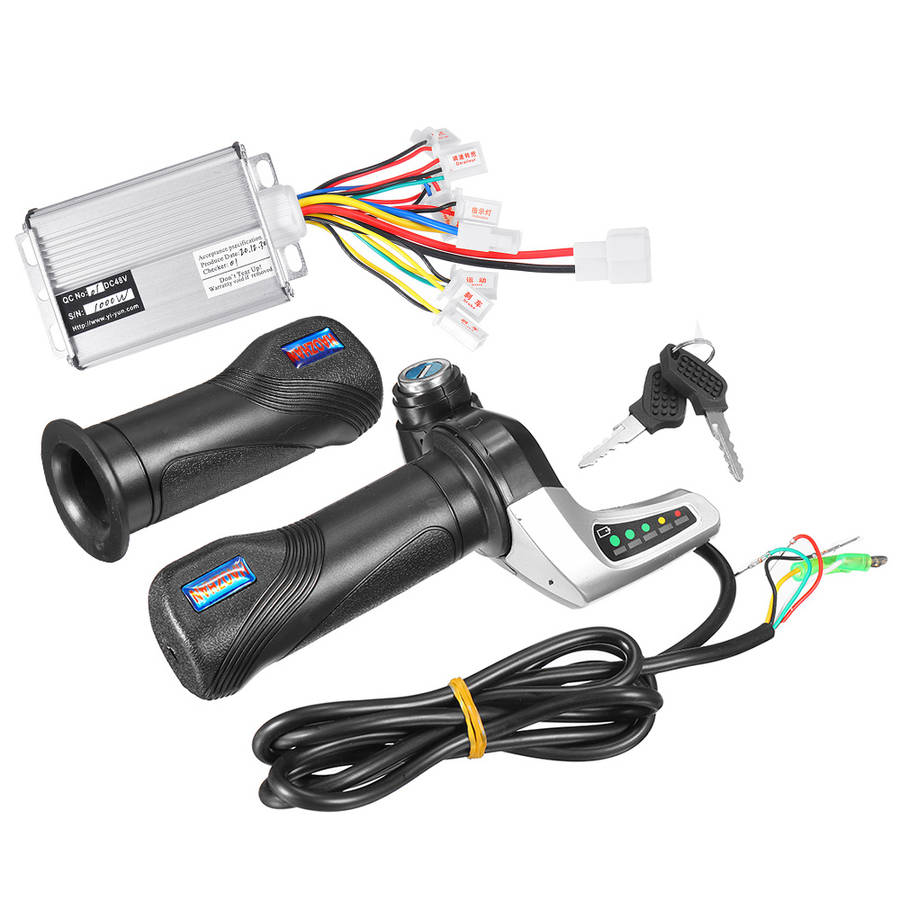

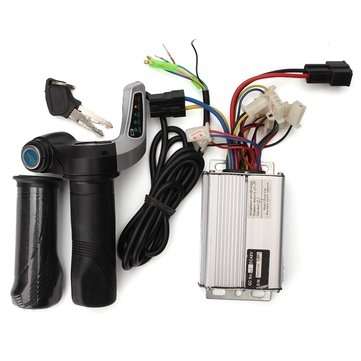

48V 1000W Electric Bike Motor Scooter Speed Controller w/Throttle Twist Grips

New

20 available

R822.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou4506

91.85 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

663055548

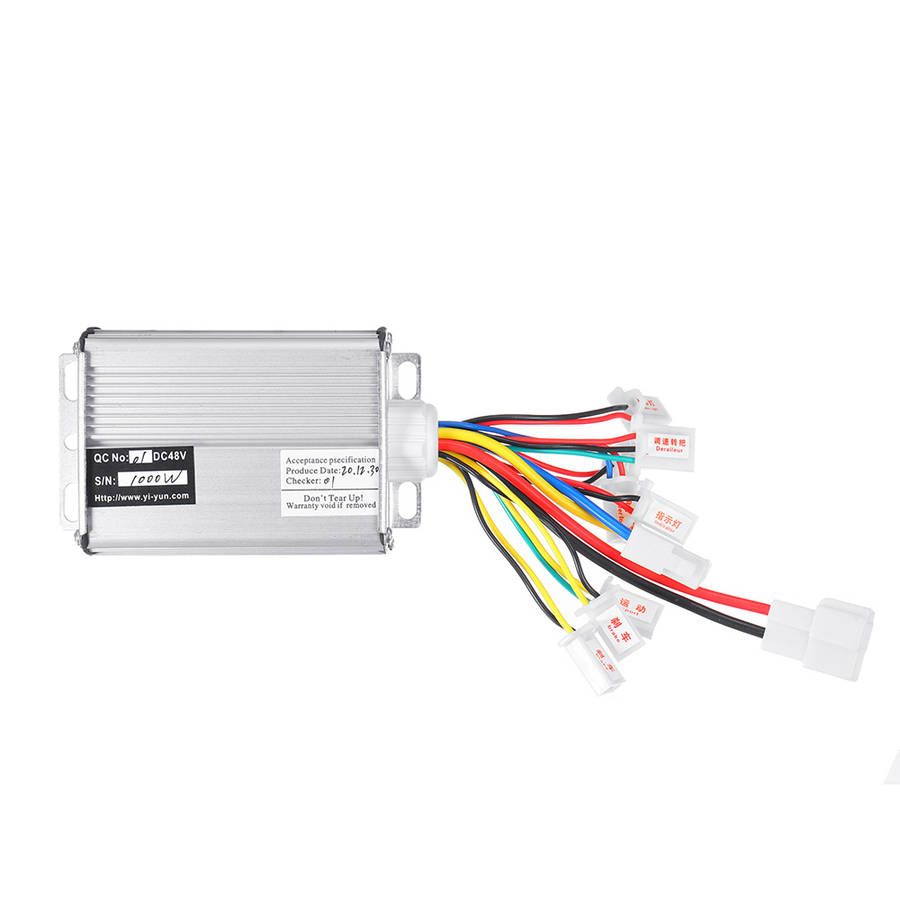

Specification:

Brushed Controller
Casing material	Aluminium
Motor brushed controller	For Electric bicycle & scooter
Rated voltage	dc 48 v
Current limited	30A
Rated power	1000 w
Matching motor	dc brushed motor
Under Voltage Protection	42V

Throttle
Material	Plastic
	Electric Bike scooter twist throttle accelerator with power display, 5Led battery indicator.
Throttle Works Voltage	DC5V
Speed Adjusting Signal	0.8V-4.3V
Power display Voltage	DC 42V

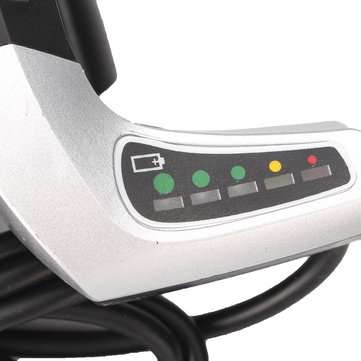

Power display
Normal	48V above, 3 Led Green
Half	47V ~ 42V, Led Yellow
Empty	42V or less, Led Red
Rotation angle	0 ﾣ~ 70 ﾣ
Working temperature	-20 a~ +50 a

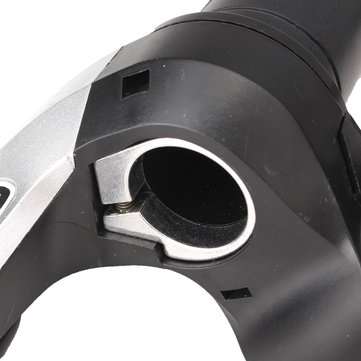

Fit	standard 7/8 inches(22.2mm) handle bars
Cable length	approximately 47 inches (1.2m)

Controller Wires Interface Definition: Battery :Thick Black (Power Negative) /Thick Red (Power Positive) Motor :Thick Yellow (Motor Negative) /Thick Blue (Motor Positive) Ignition Switch :Thin Red(VCC)/Thin Blue Indicator : Thin red (Indicator power output) /thin black (indicator negative) Brake :thin yellow (Brake signal)/thin black(Negative Power) Speed governor :Thin blue(Speed handlebar Signal input) /Thin black (Negtive Power) /thin red(5V Positive Power) Charge Port : Thin red (charge input power Positive) /thin black (Power negative) Brake Light: Thin red (power Positive) /thin black (Power negative) Sport: Thin yellow /thin green Note: 1.Please allow 1-3mm error due to manual measurement.Pls make sure you do not mind before you bid. 2.The color may have different as the difference display,pls understand. Package Included:
