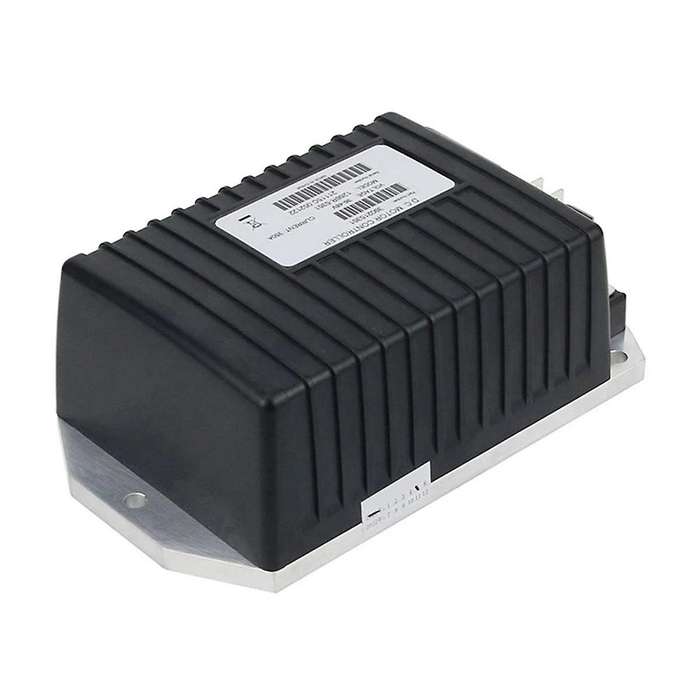

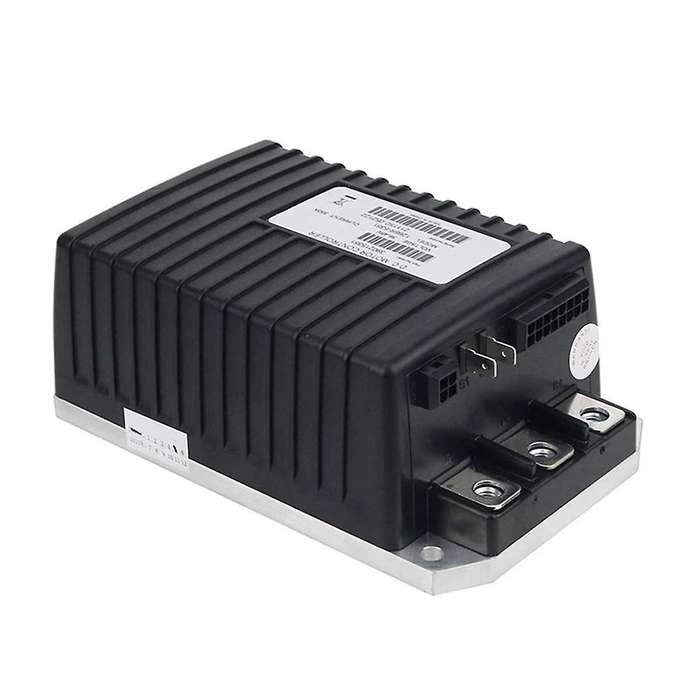

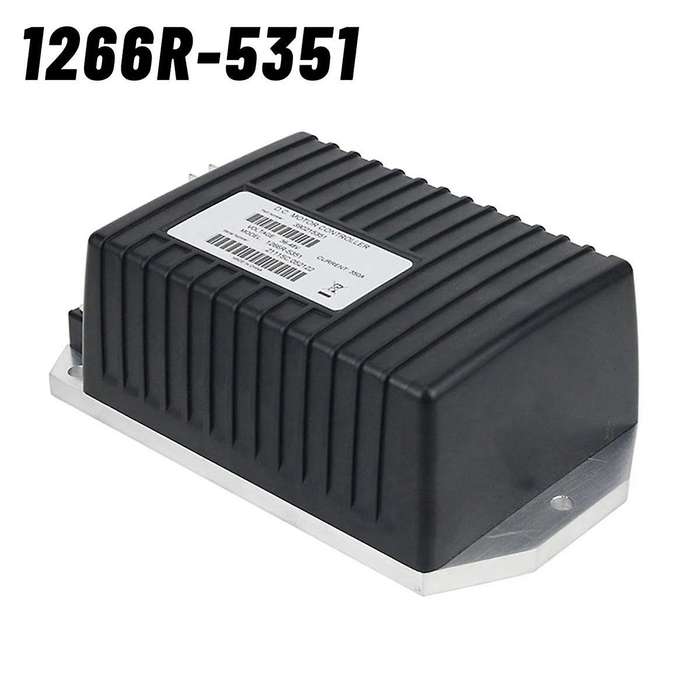

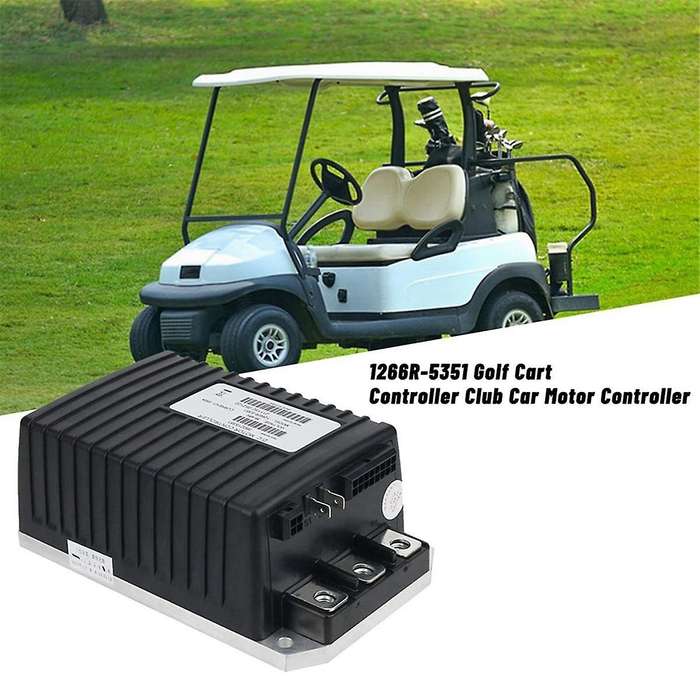

48V 350A Golf Cart Controller Motor Controller 1266R-5351 for Electric Pallet Truck Electric Golf Ca

This separately excited motor speed controller is designed for use in a of small industrial vehicles and in material handling equipment. These programmable controllers are simple to install, efficient, and cost effective, while offering more features than the original 1266.The controller provides smooth precise control of motor speed and torque. A full-bridge field control stage is combined with a half-bridge armature power stage to provide solid state motor reversing and full regenerative without additional relays or contactors. The controller's rugged IP53 housing and packaging are built to withstand shock and vibration.State-of-the-art mount logic board fabrication makes it even more reliable than the original 1266. The 1266R-5351 controller is fully programmable for the use with Model 1313-4401 Handheld Programmer or 1314 PC Programming Station. In addition to configuration flexibility, the programmer provides diagnostic and test capability.Appropriate Throttles for Use with the 1266R-5351 Controller:Type 1: 2-wire 5k-0 throttlesType 2: 0-5V throttles, current source throttles, three-wire potentiometer throttles, and electronic throttles wired for singleended operationType 3: 2-wire 0-5k throttlesType 4: 0-5V and three-wire potentiometer throttles wired for wigwag operationKey Features:Model Number: 1266R-5351Voltage: 36-48VDrive Current Limit (amps): 350APWM operating frequency: 16 kHzElectrical isolation to heatsink (min.): 500 input voltage (minimum): 16.8 V input current (typical):78 mA without programmer120 mA with programmerLogic input voltage: 7.5 V High; Less than 1 V LowLogic input current 15 mAOvervoltage protection:24V models: cutback at . 30V, cutback at 34V36V models: cutback at apcolor: BlackMaterial: ABSPackage Contents:1x Motor ControllerOnly the above package content, other products are not included.Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +\/- 1-3cm.
