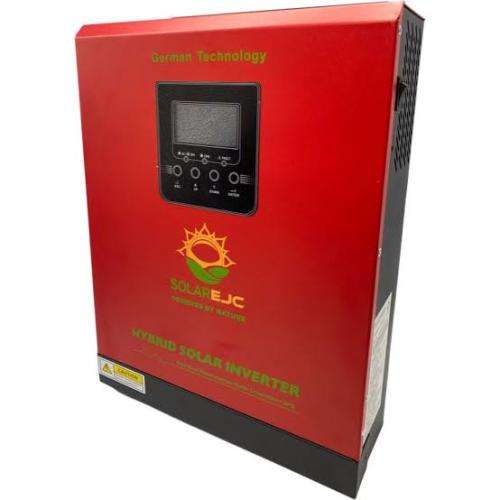

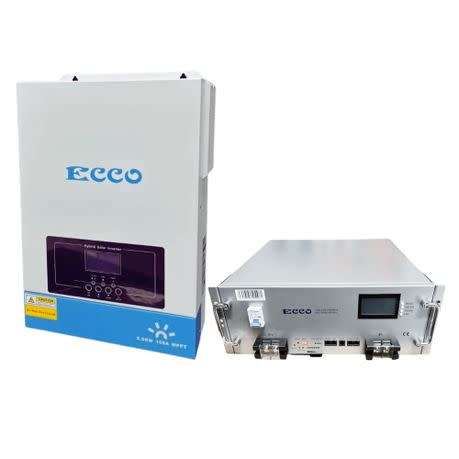

48v 5.5kva 5500w mppt hybrid inverter

Pure sine hybrid inverter

MPPT (provides 30% more efficiency than PWM  & more flexibility for system expansion)

Specifications:-

Inverter Mode
- Rated Power: 5500VA / 5500W
- DC Input: 48VDC, 127A
- AC Output: 230VAC, 50/60Hz, 23.9A

AC Charger Mode
- AC Input: 230VAC, 50/60Hz, 40A
- DC Output: 54VDC
- Max. Charge Current(AC): 60A Default 30A
- Max. Charge Current(PV+AC): 100A
- AC Output: 230VAC, 50/60Hz, 23.9A

Solar Charge Mode
- Max. PV Array Power: 5500W
- Min. Solar Voltage: 120VDC
- Max. Solar Voltage (VOC): 500VDC
- Max. MPPT Charge Current: 100A

Ingress Protection: IP21 (Indoor Use)

Brands:Ecco/Topstar/Inkwenkwezi/Sunmagic/Fivestar/Must/Esener/Kingstar/Solar Jec/Synarpse

External images for illustration purposes only & we reserve the right to supply any of the above brands available at that moment.
