Name: 48V LED Battery Indicator Gauge Meter For Golf Cart ATV Boat
SKU: 1066610
Price: 369.00 ZAR
Availability: SoldOut

48V LED Battery Indicator Gauge Meter For Golf Cart ATV Boat

New

5 were available

Indicative market price: R555.00

R369.00

34% off

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

WorldWide Traders1484

95.02 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: Only if item is faulty.

Get it now, pay later

Condition

New

Location

International

Product code

1066610

Bob Shop ID

278135898

Please read and understand terms of sale under the Shipping Tab before making your purchase.

Please note:
If there are options for this order, the price indicated is for the basic model.
Please use Ask a Question to ask for the price of any of the other models listed.

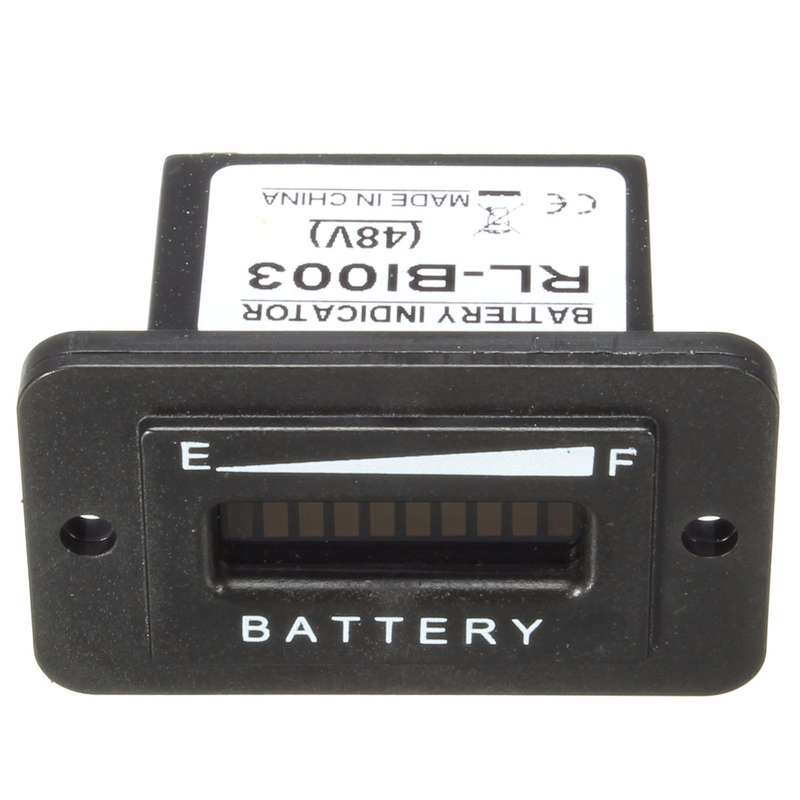

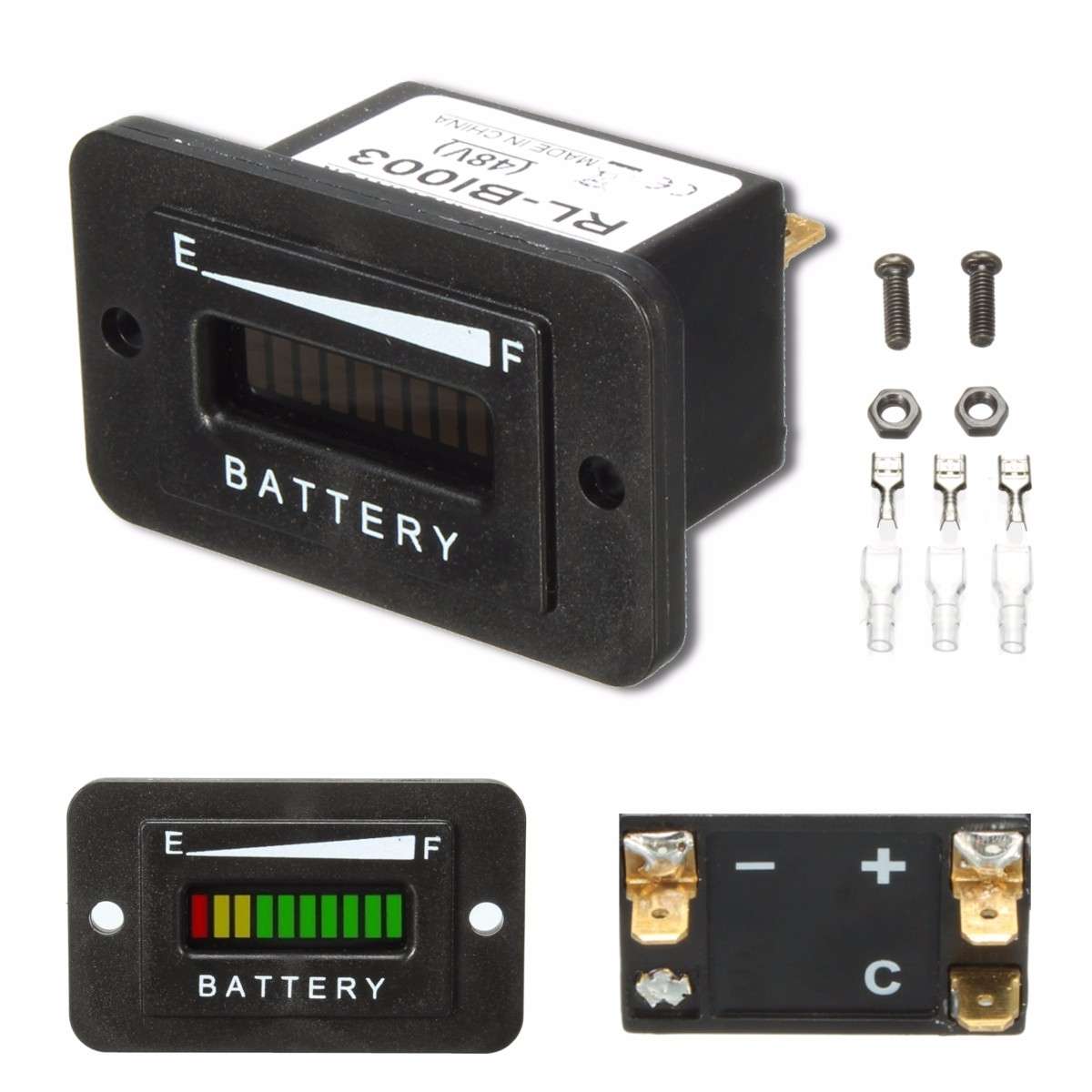

48V LED Battery Indicator Gauge Meter For Golf Cart ATV Boat

Description:
High reliability
LED Flash for low charge
Memory option to recall last charge level
10 segment LED Bar Graph display
Silent opration, no moving parts
Relay out put enable option
Fits standard panel cut-out
Wide operating temperatue range

Spefication:
Color: Black
Material: Plastic

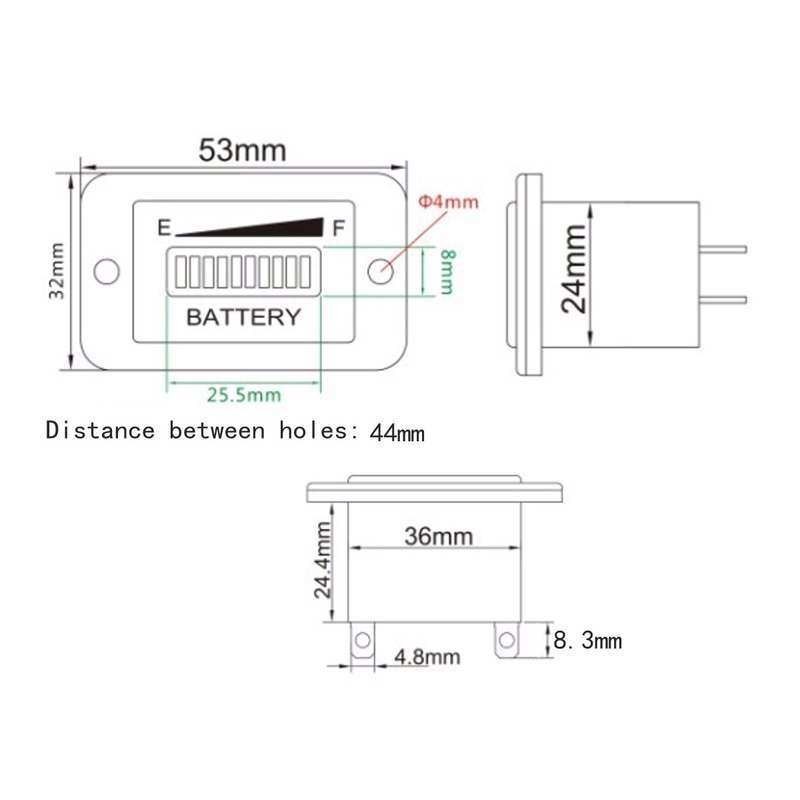

Size: Show as the picture
Distance between holes: 44mm
Capacity: 1 Red, 2 Yellow, 7 Green color LED for indicator
Resolution: 10% per LED segment
Operating Voltage: 48V
Operating current: 20 mA nominal
Storage and Operating: -20¿¿¿ to +85¿¿¿
Accuracy: +/- 0.5%

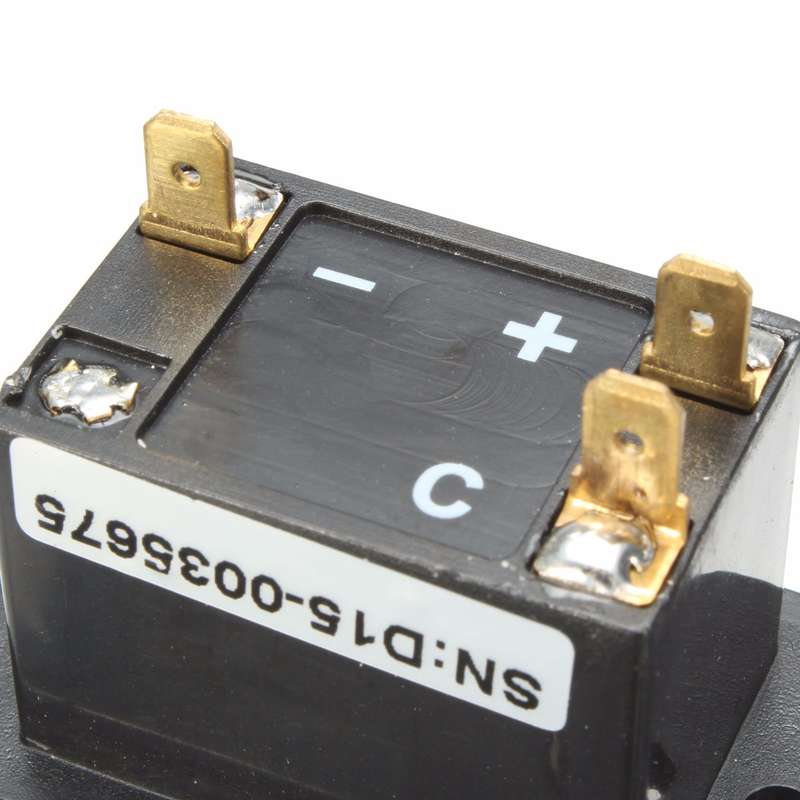

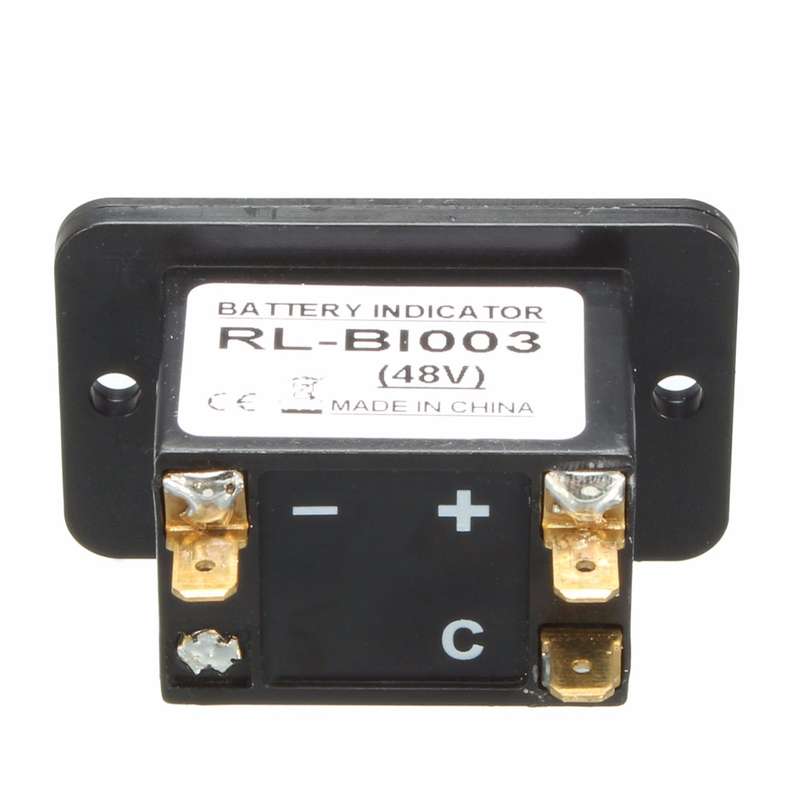

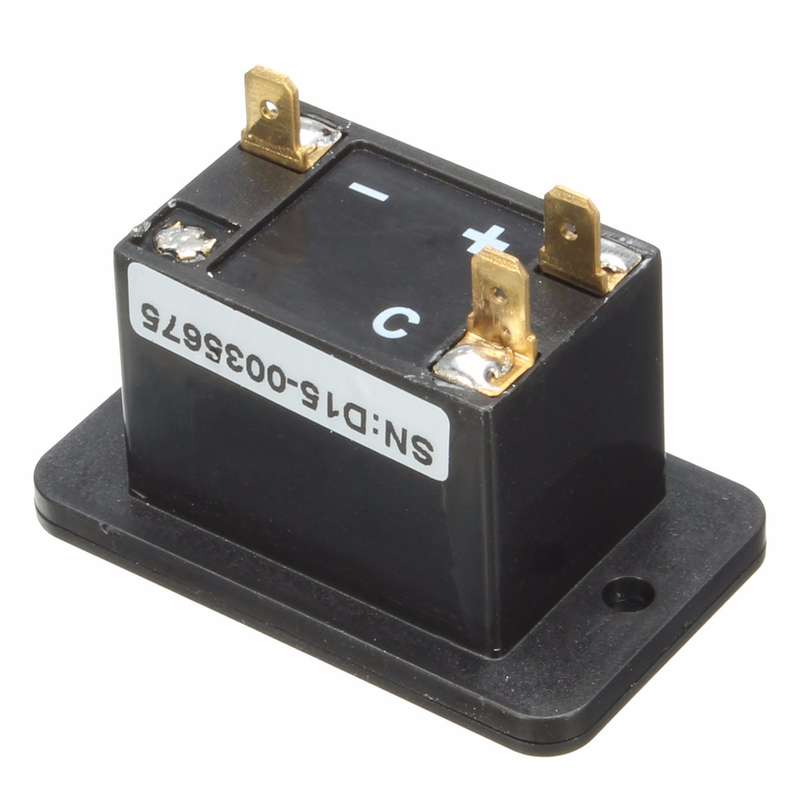

Connection: (3-pin)
Pin(+): Battery +
Pin(-): Battery -
Pin(C): single output for external use
Case Style: Front panel mount

Function:
1. Scan from "F" to "E" when connected with power.
2. Display "F" green light when first use.
3. Battery charge capacity is indicated using a 10 segment LED bar graph display form full to empty.
4. The LED display will delay 155s when the battery's capacity is down.
5. The 2nd LED from the left flashes as a warning that the battery has discharged 80%.
6. At 90% discharge, LED alternate flashes the left 2 LED's to indicate very low capacity is remaining.
7. Recognition fales battery charging signals function: Only when battery charging higher than definite
voltage and last more than 6 minutes can it be recognized to full battery.
8. About the "C" pin (optional): when the switch is off, LED will turn off, and the indicator will not work.

Fitment:
Works with 48V Lead-Acid Batteries in Golf Carts, Forklifts, Trucks, RV's, ATV's, UTV's, Scooters, Boats and More

Note:
1. Please check the size measurement carefully before making payment.
2. Please allow 0.5-1 inch difference due to manual measurement.(1 inch=2.54cm)
3. The color of the actual items may slightly different from the listing images due to different computer screen, thanks for your understanding.
4. Professional Installation Is Highly Recommended!

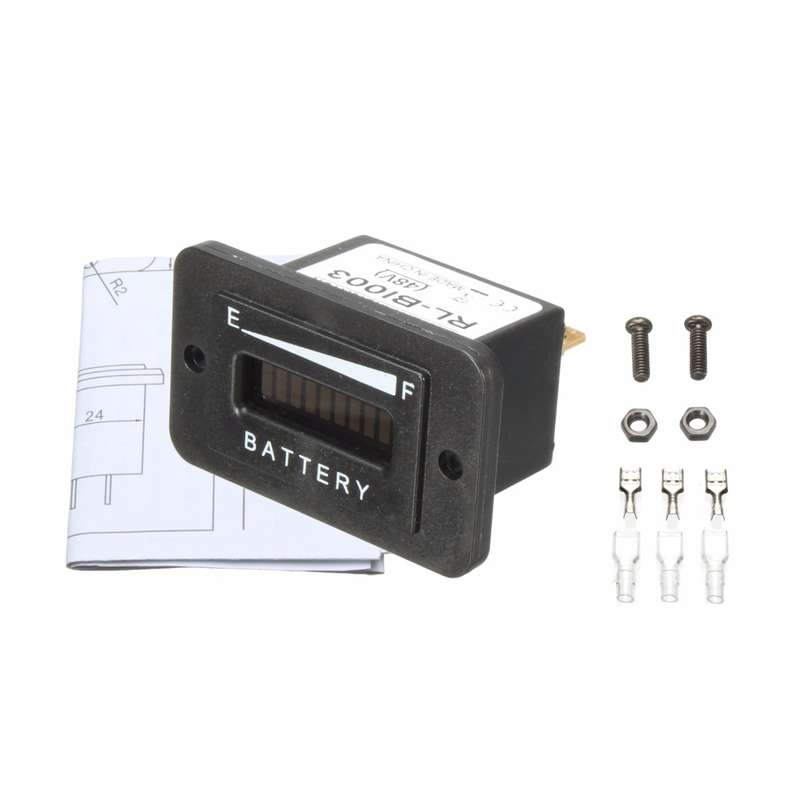

Package Inlcuded:
1 X 48V LED Battery Indicator Gauge
1 X User Manual
