Specifications: Material:Fiberglasspanels

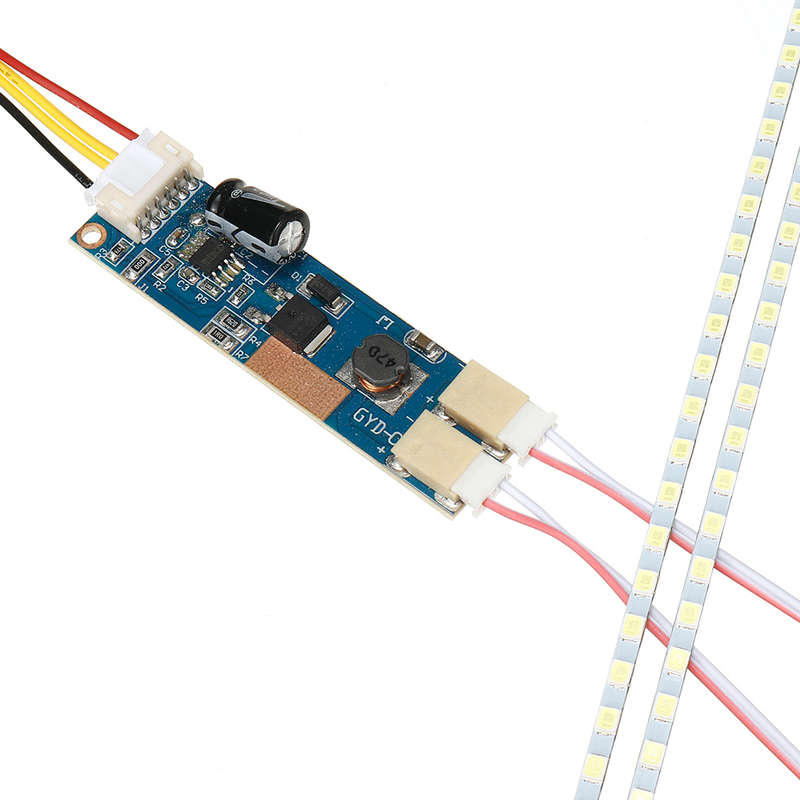

Driverboardsize:7x2cm
Input:DC10-30V

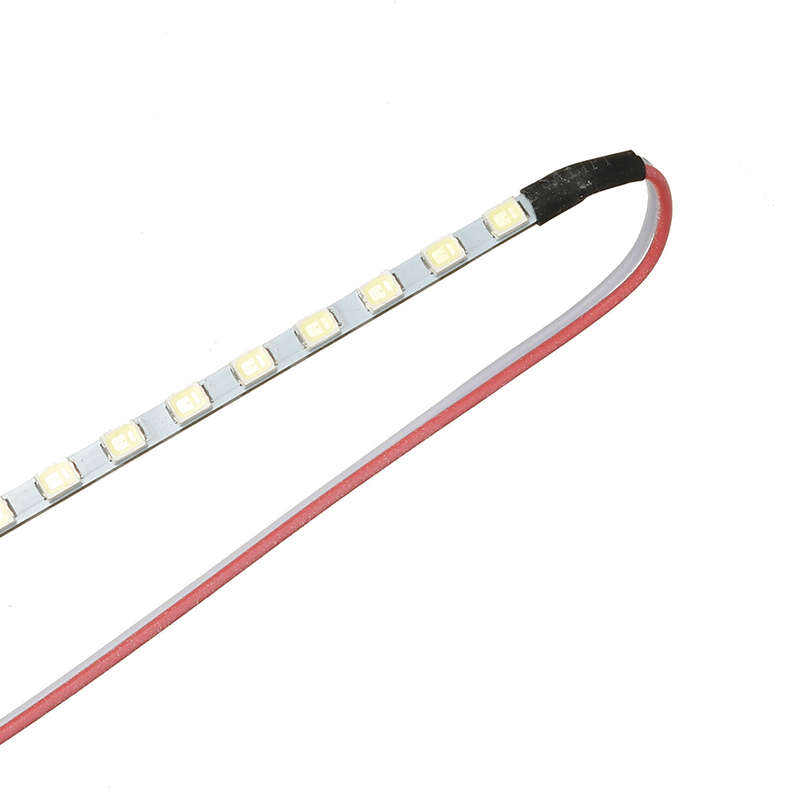

LEDstripsize:490x4mm
Features: Thisbacklightstripisperfectlydesignforscreen,highbrightness,environmentalprotectionandenergysaving.

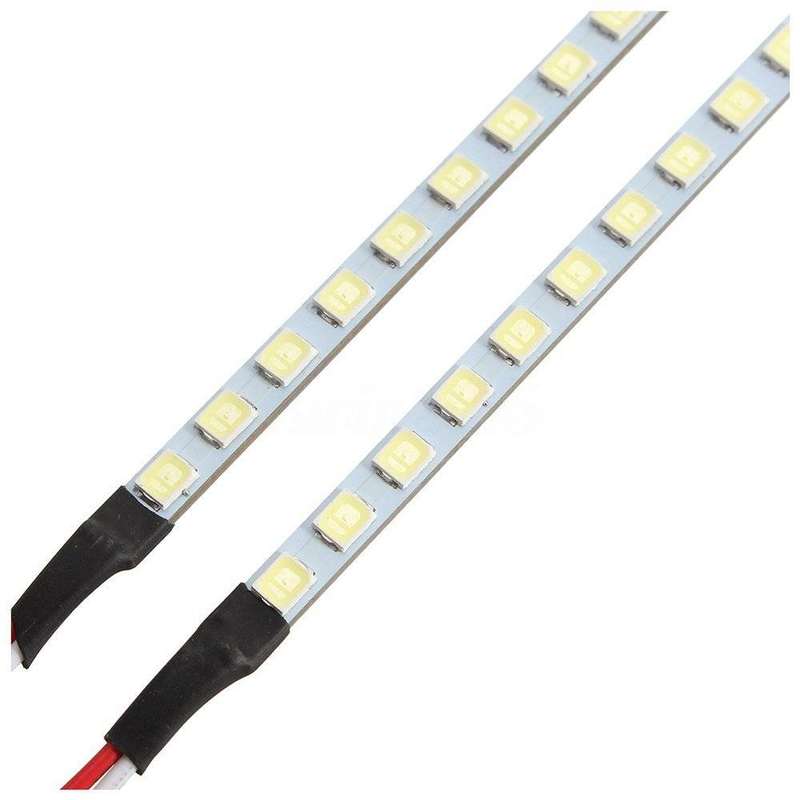

LEDparticlesclosely,high-densityarrangement,importhighlightLEDstrips.
Longservicelife,withlifetimeof100000hours.
Easytoinstall,usedouble-sidedadhesivecanbeattachedtothedisplayoriginalLCDfillister,orelsewhere.
Installation: Ifyourmonitorisusingainverter,thenthiskitreplacetheinvetertoplugintothedriverboard;
Ifyourmonitorisahigh-vo1tageintegratedpowersupplyboard,then:theboardenergized,find12V(capacitance),andthenunplugthepowersupply,
useamultimetertofindand12V(capacitance)Disconnectoriginalconnecting
thenegativeterminal,theboardreceivedthreeline:12V,ON,GND,the12voftheinverterconnectwith12vpositive
electrodeofhign-vo1tageintergratedpowersupplyboard,GNDisconnectedwiththenegativeelectrode,ONconnectwiththeON/OFF.
Insimpleterms,theoriginalhighvo1tagepowersupplyisdisconnected,insteadoftheinverter,
Intheoriginalhigh-pressurefronttotakepower
PinDescription: VIN:Vo1tage
ENA:ON/OFF
DIM:ADJadjustbrightness
GND:ConnectingGround
PackageIncludes:

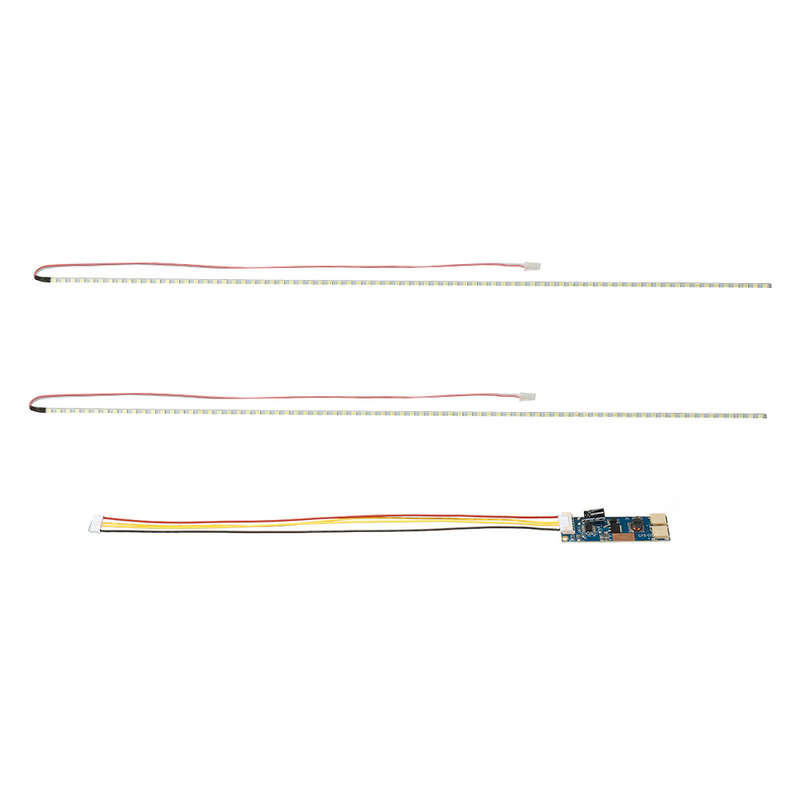

2xLEDstrip
1xDriverBoard
1xCable
