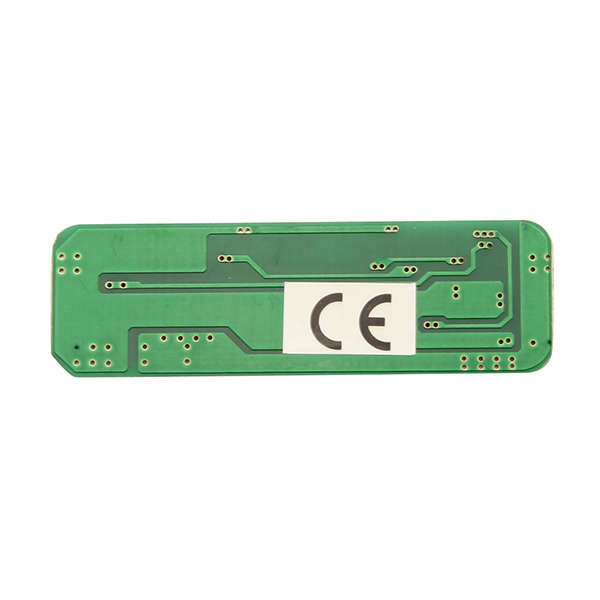

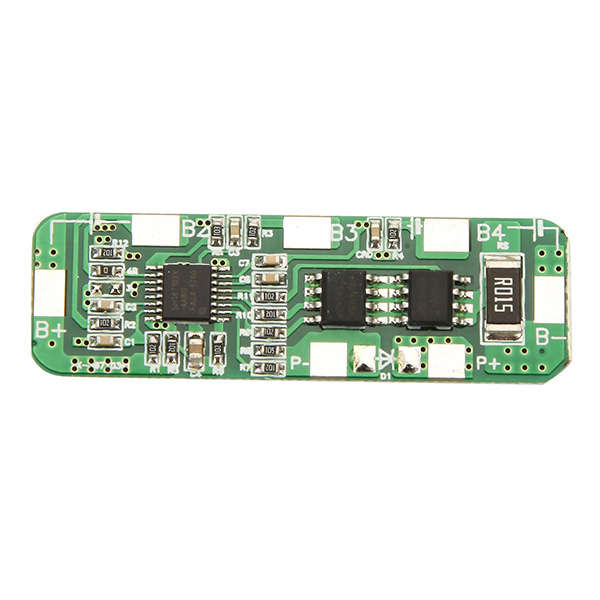

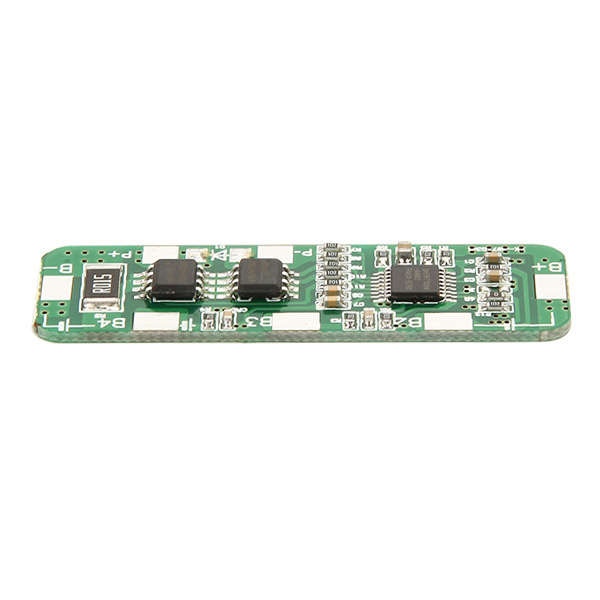

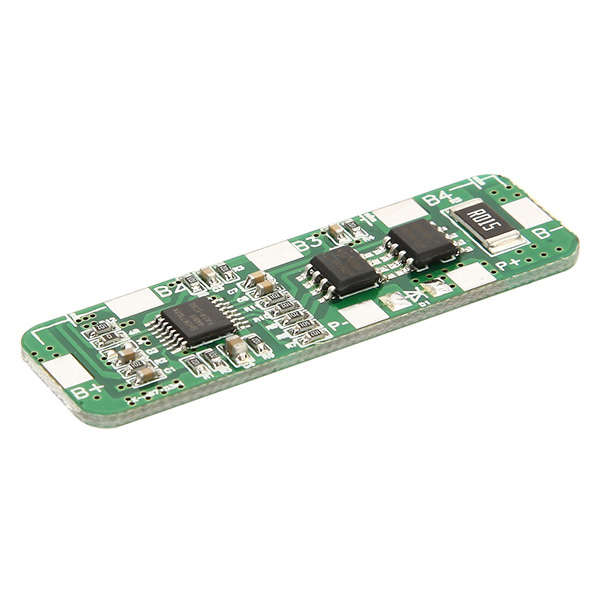

4A-5A 4 String 18650 Li-ion lithium Battery Cell Protection Module Board
New
Indicative market price: R199
R67.97
66% OFF
Closed
13 Apr 18 16:59
Shipping
Standard courier shipping from R60
R60 Standard shipping applies to orders under R100, in most areas in South Africa. R30 Standard shipping applies to orders over R100. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 3 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Buyer Protection
How you're covered
Get it now, pay later
Product information
Condition:
New
Location:
International
Customer ratings:
Product code:
1263732
Bob Shop ID:
333262241
Package weight: 0.01 kg
Description:
Model: HH-P3-10.8
Charging voltage range: 4.25-4.35v ± 0.05v
Dimensions: 48 x 15 x 1.0mm
Over-discharge voltage range: 2.3-3.0v ± 0.05v
Maximum operating current: 4-5A
Operating temperature: -40 to + 50 ￢ﾄﾃ
The maximum instantaneous current: 6-7A
Storage conditions: -40 to + 80 ￢ﾄﾃ
Quiescent Current: less than 6uA
Effective life: more than 50,000 hours
Resistance: less than 45mΩ
Short circuit protection: Protect, need to be recharged recovery
Main functions and features:
Over charge protection, over-discharge protection, short circuit protection, overcurrent protection.
The protective plate using Japan's Ricoh rechargeable lithium iron phosphate battery protection IC;
High-accuracy voltage detection circuit;
Terminal of the charger using high voltage devices;
Built-in three-stage overcurrent detection circuit (overcurrent 1, overcurrent 2, load short circuit);
MOS transistor can be controlled by a battery charge and discharge;
Low standby current consumption.
Function and Description:
1.the lithium battery with protection board according to wiring diagram, when the battery voltage is overcharge and over-discharge voltage between the voltage, and P +, P- 1 second after charging, P + and P- output voltage of the battery voltage.
2.Battery charge function: between P + and P- plus charger, battery charging, the battery voltage charge to overcharge detection voltage (4.25 ± 0.025V), the protection circuit to cut off the charging path, to achieve overcharge protection.
3.Battery over-discharge protection: in between the P + and P- connected load to the battery discharge when the battery voltage drops to over-discharge voltage (2.4 ± 0.08V), the protection circuit, shut off the discharge path to achieve the over-discharge protection.
4.Short circuit protection: When the P + and P- short circuit protection circuit will act quickly in 5-50uS, cut off access, short-circuit protection.
Overcurrent protection function: When the V- terminal voltage of (0.15 ± 0.02V), the protection circuit will act quickly in 6.7-13.9ms, cut off access, overcurrent protection.
Note: If the correct welding, testing with non-output, use other ways to activate charging about protection board!
Package included:
1 x 18650 Li-ion lithium Battery Cell
