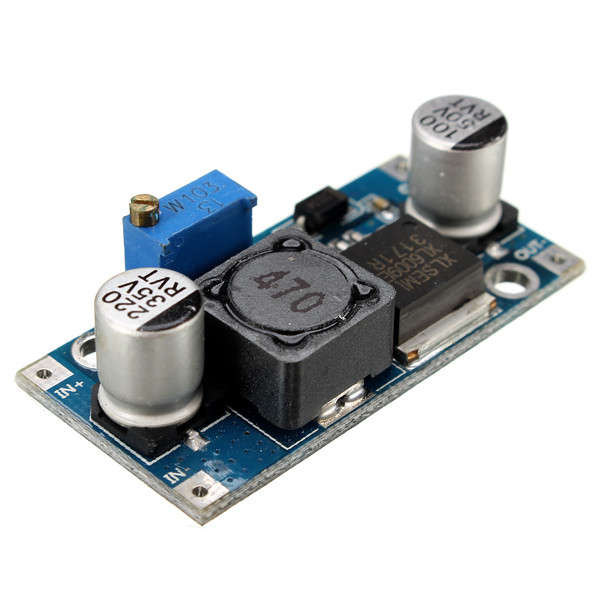

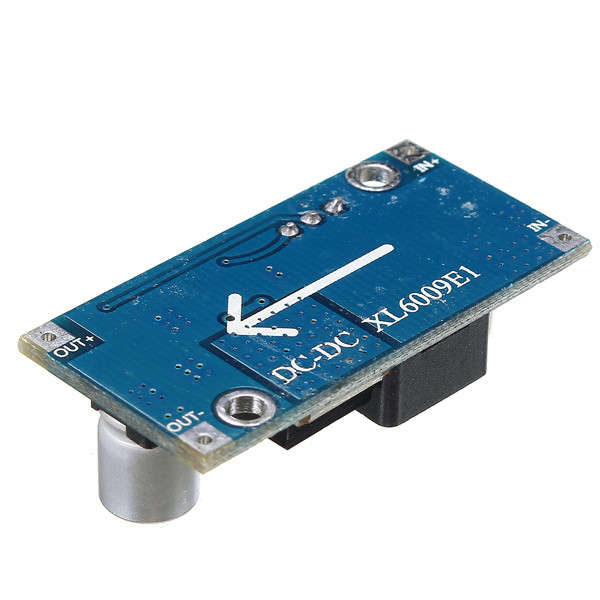

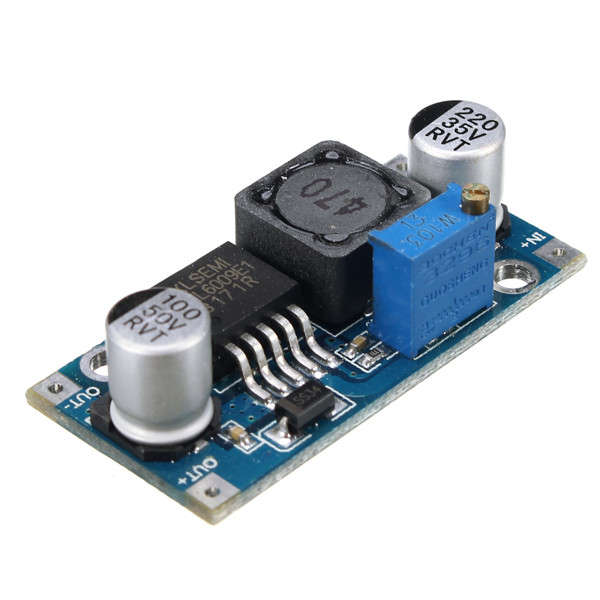

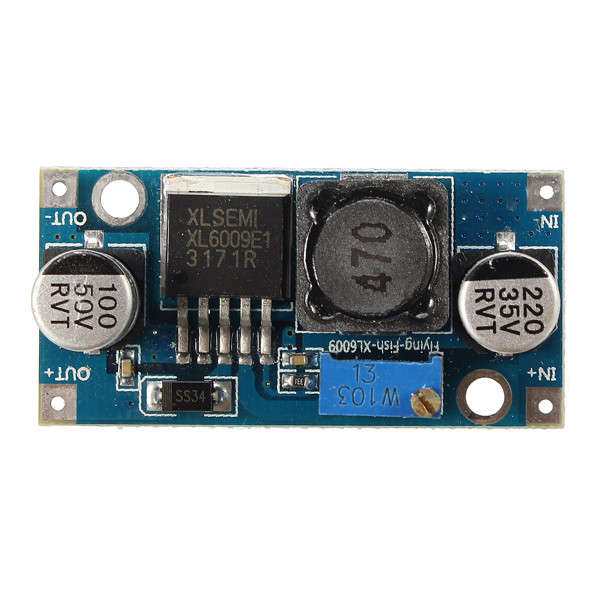

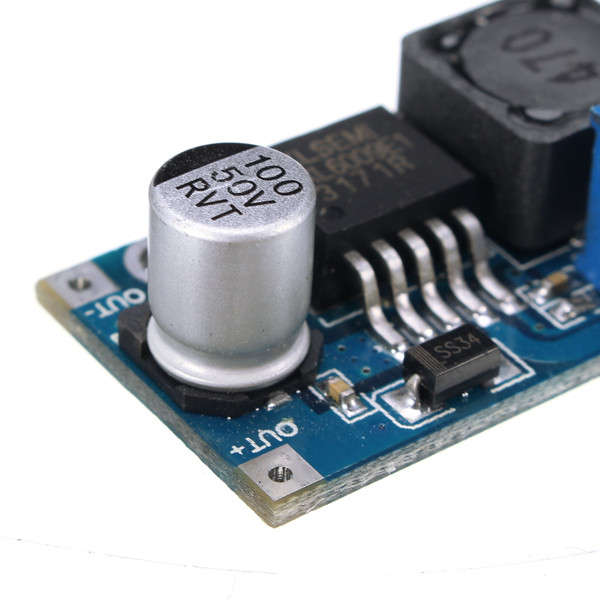

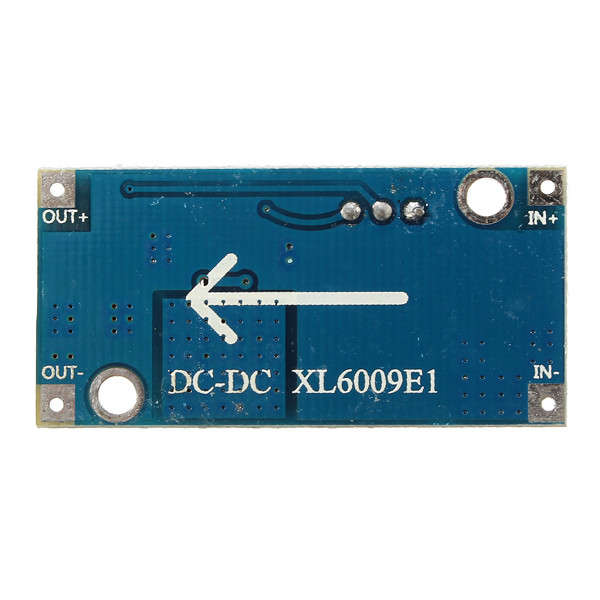

Name: 4A XL6009E1 Adjustable DC-DC Step Up Boost Converter Power Supply Module
SKU: 1175699
Price: 49.06 ZAR
Availability: SoldOut

4A XL6009E1 Adjustable DC-DC Step Up Boost Converter Power Supply Module

New

5 were available

R49.06

Shipping

R65.00 Standard shipping applies to orders under R100.00, in most areas in South Africa. R35.00 Standard shipping applies to orders over R100.00. Some areas may attract a surcharge surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

click and buy2136

96.64 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Condition

New

Location

International

Product code

1175699

Bob Shop ID

387759643

Description:

The XL6009 is a high-performance step-up (BOOST) module with 4A switching current. The module uses the second generation of high-frequency switching technology XL6009E1 as the core chip, performance far more than the first generation of technology LM2577. XL6009 step-up module cost lower, more excellent performance, LM2577 module is about to be eliminated.
ultra-wide input voltage 3V ~ 32V, the best working voltage range is 5 ~ 32V;
ultra-wide output voltage of 5V ~ 35V;
built-in 4A high efficiency MOSFET switch, the efficiency of up to 94%; (LM2577 current only 3A)
ultra-high switching frequency 400KHz, you can use a small capacity filter capacitor that can achieve very good results, smaller ripple, smaller. (LM2577 frequency only 50KHz)

Feature:

Module nature: Non-Isolated Boost (BOOST)
Rectification method: Non-synchronous rectification
Input range: 3V ~ 32V
Output range: 5V ~ 35V
Input Current: 4A (max), no load 18mA (5V input, 8V output, no load less than 18mA. The higher the voltage, the greater the no-load current.)
Conversion efficiency: <94% (the greater the pressure difference, the lower the efficiency)
Switching frequency: 400KHz
Output ripple: 50mV (the higher the voltage, the greater the current, the larger the ripple)
Load Regulation: ±0.5%
Voltage regulation: ±0.5%
Operating temperature: -40 ￢ﾄﾃ ~ + 85 ￢ﾄﾃ
Dimensions: 43mm * 21mm * 14mm (L * W * H)

Package included:

1 x 4A XL6009E1 Adjustable DC-DC Step Up Boost Converter Power Supply Module
