4CH full D1 H.264 DVR Security System with 4 CMOS Indoor/Outdoor Night Vision Surveillance Camera's
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details
4CH full D1 H.264 DVR Security System with Four CMOS Indoor/Outdoor Night Vision Surveillance Camera's
Internet & Phone 3G Viewing
Motion detection
The CCTV Systems includes a 4CH FULL D1 H.264 Real-time Recording Network DVR and 4pcs indoor/outdoor Weatherproof IR Day&Night surveillance Cameras providing everything you need to have your surveillance system up and running in your home or business quickly and easily.
DVR Specification
Video Compression | H.264 |
Video System | NTSC / PAL |
Operation System | Linux Based |
Video Input / Output | BNC 4-Channel Input / 1-Channel Output |
Other Video Output | VGA |
Audio Input / Output | RCA 2CH Input / BNC 1CH Output |
Display Frame Rate | NTSC: 120 fps @ D1 / PAL: 100 fps @ D1 |
Display Resolution | NTSC: D1 (704 x 480) / PAL: D1 (704 x 576) |
Recording Frame Rate | NTSC: 120 fps @ D1 / PAL: 100 fps @ D1 |
Record Resolution | Selectable: NTSC: D1(704 x 480); CIF (352 x 240) / PAL: D1(704 x 576); CIF (352 x 288) |
Record Mode | Continuous / Time Schedule / Motion Detection |
Network | RJ45, 10M/100M |
Net Protocol | TCP/IP, DHCP and DDNS |
Remote Access | LAN or Internet Browsing |
PTZ Control | RS-485 |
HDD Interface | SATA, Support between 320GB and 2TB NO HARD DRIVE INCLUDED |
Playback Mode | Normal Play /Fast Forward /Fast Rewind/ Frame by Frame |
USB | USB Backup / USB 2.0 |
Remote Control | IR Remote Control |
Power Supply | DC12V, 2.5A |
Package Contents:

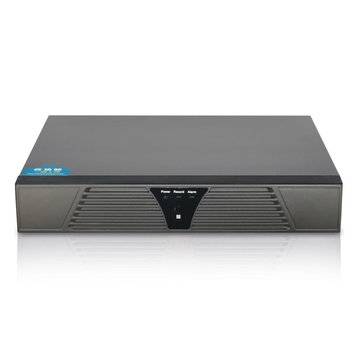

- 4ch / 4 Camera Network DVR
- 4 Infrared Day/ Night Cameras
- 4x 20Roll Powax Cable (Video feed + Power)
- 1 Power Supply Adaptors
- Remote Control
- Mouse
