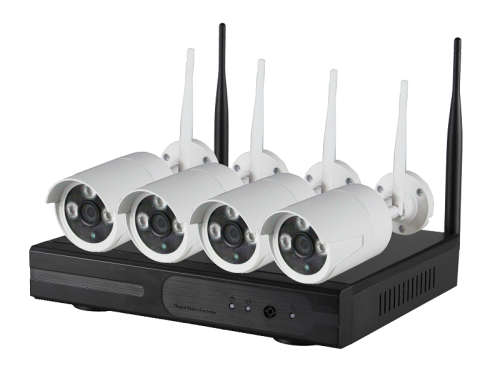

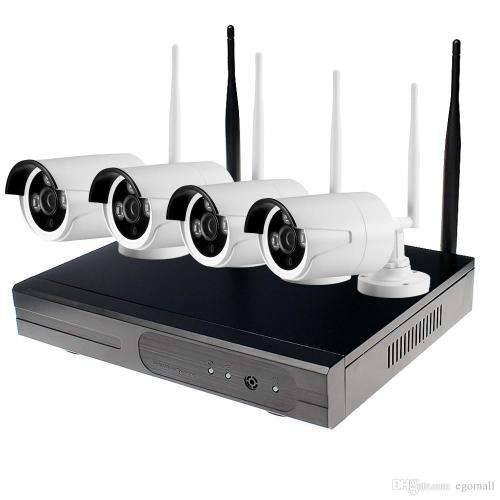

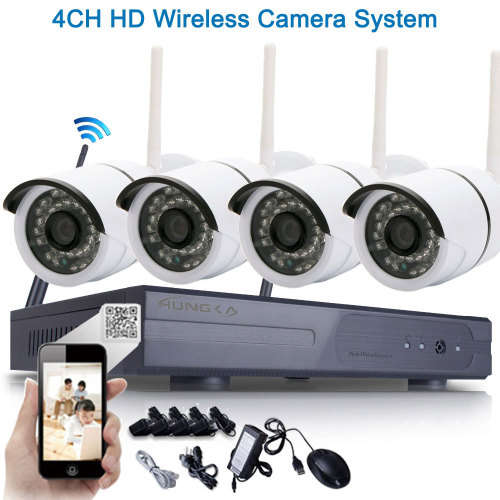

4CH HD Wireless Camera System
HD video output, up to 30m transmitting with 3 walls

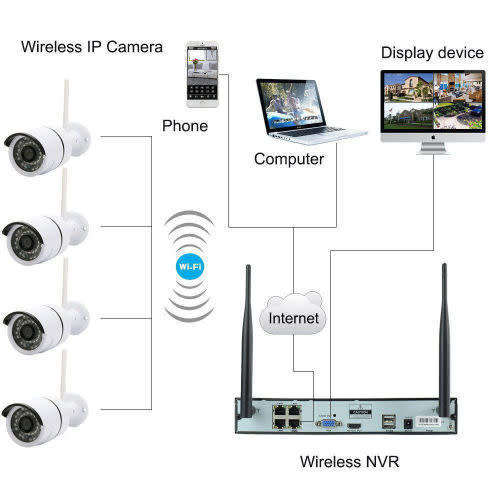

Automatic connection with IP camera, save installation cost

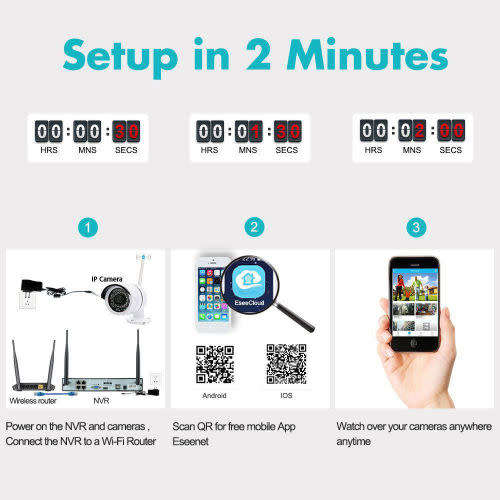

Plug and play, P2P service
Mobile viewing, iphone&android app
Free DDNS
Wireless NVR Specification
Video Input: 4CH D1/960H720P/960P/1080P
HDMI Output: 1ch, Resolution: 1024 x 768, 1280 x 1024,1366 x 768, 1440 x 900, 1920 x 1080
VGA Output:1ch, Resolution: 1024 x 768, 1280 x 1024,1366 x 768, 1440 x 900, 1920 x 1080
Resolution: D1/960H/720P/960P/1080P
Playback: 4ch
Recording: Manual, time, motion dection, alarm
Storage: 1 SATA
Storage Capacity: 4TB for each HDD
Network Interface: 1 RJ45 10M/100M, 2 WIFI connector
USB Interface: 1 USB2.0
Audio Interface: 3.5 mm headphone jack(Optional)
Power Consumption:≤5W
Power: DC12V
Dimension(mm):258 x 210 x 42mm
WIFI Camera Specification
Sensor:1/4" progressive scan sensor
Signal System: PAL/NTSC
Resolution: 1280 x 720 16 : 9 high defination
Minimum illumination: Color: 0.1 Lux; B/W: 0.01 Lux
Shutter:1/25s to 1/25,000s
Lens: 3.6(standard)/6mm(optional)
OSD: Date time & title
White Balance: Auto
Day&Night: Auto / color / BW
3D-DNR: Auto
Mirror/Flip: On / off
Smart Stream: Dual-stream:1280x720@15fps; 640x360@15fps
S/N: > 39.1 Db
Interface: RJ45 / WIFI 802.11b/g/n
Power Input:DC12V-1A
Power Consumption:≤6W
Size: 66 x 180mm
Weight:500g
Level of Protection: IP66
Package
4 x IP Camera
1 x NVR
1 x Screws Bag
1 x USB Mouse
1 x User Guide
1 x DC 12V2A Power Supply(for NVR)
4 x DC 12V1A Power Supply (for IPC)
