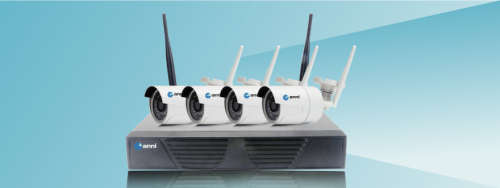

4CH *WIRELESS*AHD CCTV KIT 720P | 1 Year Warranty | HD 720P IMAGE QUALITY

4CH *WIRELESS* AHD CCTV KIT 720P | 1 Year Warranty | HD 720P IMAGE QUALITY

Transmission distance  up to 100m

Transmission through Walls / Obstructions 30m

Features:


l 720P waterproof WIFI IP Camera;36 IR Leds

l IPC connect the NVR automatically,Easy connection

l Strong  WIFI signal,Not drop

l P2P Cloud services

l Support Motion detection, Plug and play

l support mobile phone ( iOS&android) monitoring

l Remote control Playback Preview

l Support Multi-user online access

l More than 100 meters with no obstacle, More than 30 meters if penetrate the wall

IP Camera Specification

720P Wireless IP Camera

Image sensor


1/4" 1.0M Pixel  CMOS

Min. Illumination


Color0.05Lux@(F1.5AGC ON)

B/W0.001Lux@(F1.5AGC ON,IRled  ON)

S / N ratio


≥39dB

Shutter speed


1/5 - 1/20,000s

Day & Night


Day / Night / External controlIR Cut Filter

AGC


Auto / Manual

White balance


Auto/Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp

Wide dynamic range


Digtal Wide dynamic range

Digital noise Reduction


DNR,3DNR

Video Compression


H.264 Main Profile/M-JPEG

Audio Compression


G711PCM

Max.Image Resolution


1280x720@30fps

Image Resolution


1280×720720×576640×480

Bitrate


CBR/VBR, bitrate32Kbps~10Mbps variable

Motion detect


Support

Privacy Zone Masking


4 privacy masks programmable

P2P


AndroidIOS

Protocols


TCP/IPHTTP NTPIGMP DHCPUDPSMTPRTPRTSPARPDDNSDNSP2P

Onvif


Non- Support

Network


10/100M Base-TX Ethernet, RJ45 Connector

Wireless


Frequency:2.4G

transmission distance :More than 100 meters with no obstacle More than 30 meters if penetrate the wall The actual transmission distance according to the situation

Power


12VDC@1A

Working Temperature


-30°C ~60°C, Humidity≤90%RH(Unsupport-condensing)

NVR Specification:

4CH WIFI 720P HD-NVR

System


Main processor


NXP7530

Operating System


Embedded Linux

Video


Video compression


H.264 High Profile Lever 4.2

Video output


720P60,XGA,1080P60

Video input(IP)


4*720P

Audio


Audio compression


G.711

intercom


None

Record & playback


Recording mode


Manual/Alarm/Video Detection/Continuous

Local Playback


1*720

Storage & Backup


Record Storage


network

Backup mode


Network backup, USB hard disk

Network Control


Protocol


TCP/IP,HTTP,DHCP,UDP,RTP,RTSP,FTP,NTP,ONVIF,SADP(IP),P2P

Interface


Video output


1ch HDMI, 1ch VGA output

Audio I/O


None

Alarm I/O


None

Network interface


1*RJ45 10M/100M/1000M Adaptive Ethernet port

USB


2*USB 2.0 port

Hard disk


1SATA(Up to 4TB)



Other


Power supply


DC +12V /2A

Power Consumption


5WWithout HDD

Work environment


Temperature:-1055, Humidity:10%-90%RH
