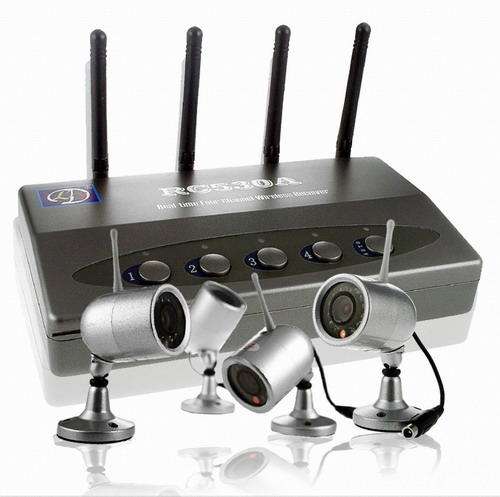

4CH Wireless Surveillance Kit - 4 Night vision Cameras + Receiver. Weather proof design

Brand new 4 Channel  CCTV Security Surveillance System

Surveillance kit, consisting of 4 Colour cameras and a receiver. The receiver can be connected with a monitor or TV. Ideal for  surveilling residential and commercial properties, shops, schools etc.

Wireless Receiver + Night Vision Camera Set

Receiver Specifications:

• Receiving Frequency: ISM 2400~2481Mhz
• Demodulation Mode: FM
• Antenna: 50ohm SMA
• Receiving Sensitivity: <-85dBm
• Intermediate Frequency: 480Mhz
• Frequency Stabilization: +/-100Khz
• Video Output: 1Vp-p@75, S/N>38dB
• Four Channels Available
• Channel Scan and Channel Skip for multiple Cameras
• Audio Output: 1Vp-P@600
• Power Adapter: DC 5V/1500mA
• Dimension: 205x120x43mm

Camera Specifications:

• Image Device: 1/3 Inch OmniVision CMOS
• Scanning Freq(H): 15.625KHz PAL / 15.734KHz NTSC
• Minimum Illumination: 0Lux
• Built in 12 IR LED for 7m night vision range
• TV system: PAL 628(H) x 568(V) NTSC 510(H) x 496(V)
• Horizontal Definition: 380TV Line
• Scanning Freq(V): 50Hz PAL / 60Hz NTSC
• Backlight Compensation: Auto
• Angular Field of View: 45deg(f=6mm)
• Synchronization System: Internal
• Electronic Shutter: 1/50(1/60)~1/100,000sec
• White Balance: Auto
• S/N Ratio: >48dB
• Gamma Correction: >0.45
• Operation Temperature: -10~50 deg C
• Transmission Frequency: ISM 2,400~2483MHz
• Waterproof
• Built in Microphone
• Recommended Range for Objects at night: 1-7M. Max effective range 7M.
• Locked Frequencies
• Power Adapter: DC12V/500mA
• Dimension: 44x100 camera circumference x L
• Recommended Range for Objects at Day: 1-10M. Max effective range 15M
• Transmission Range: 100m without interference
